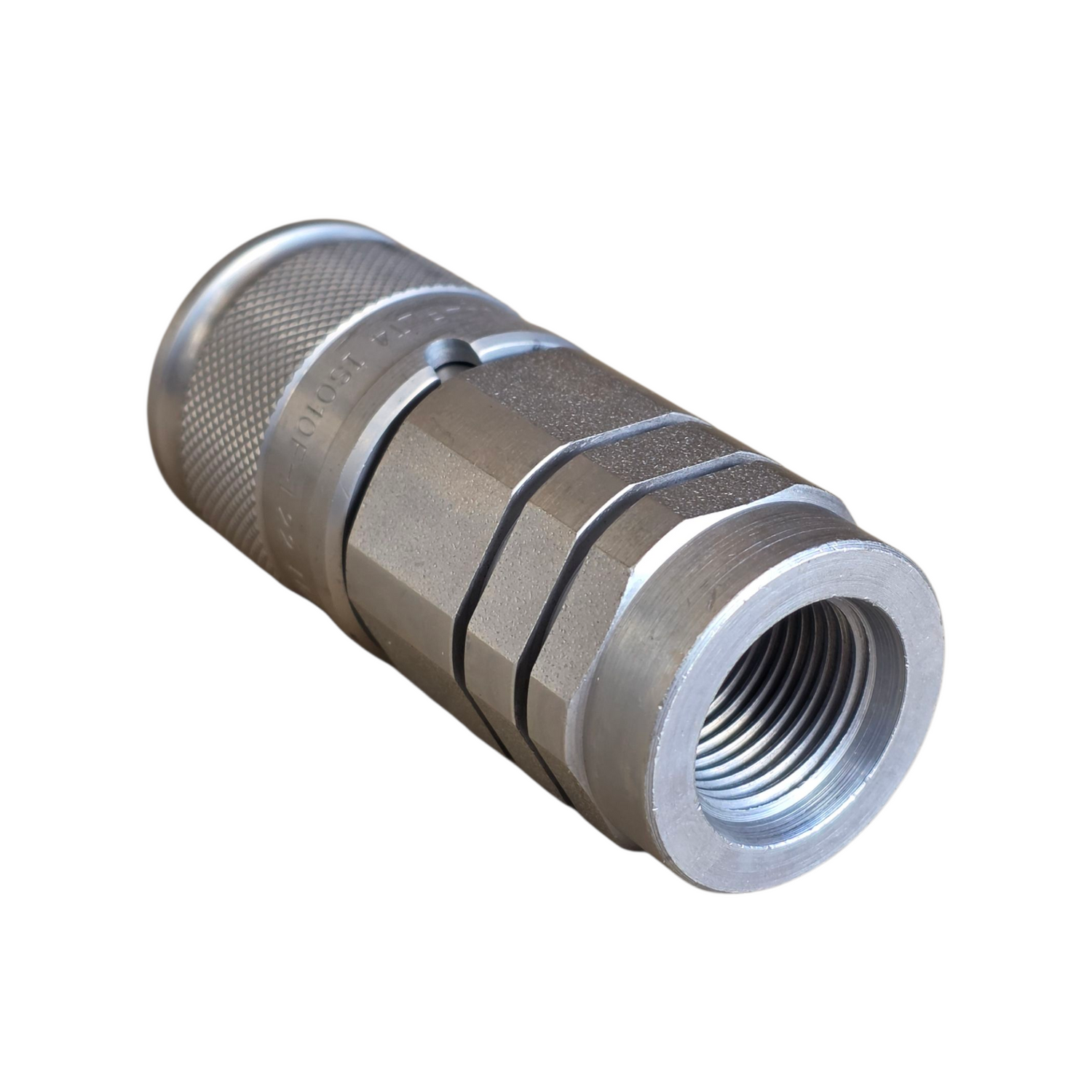

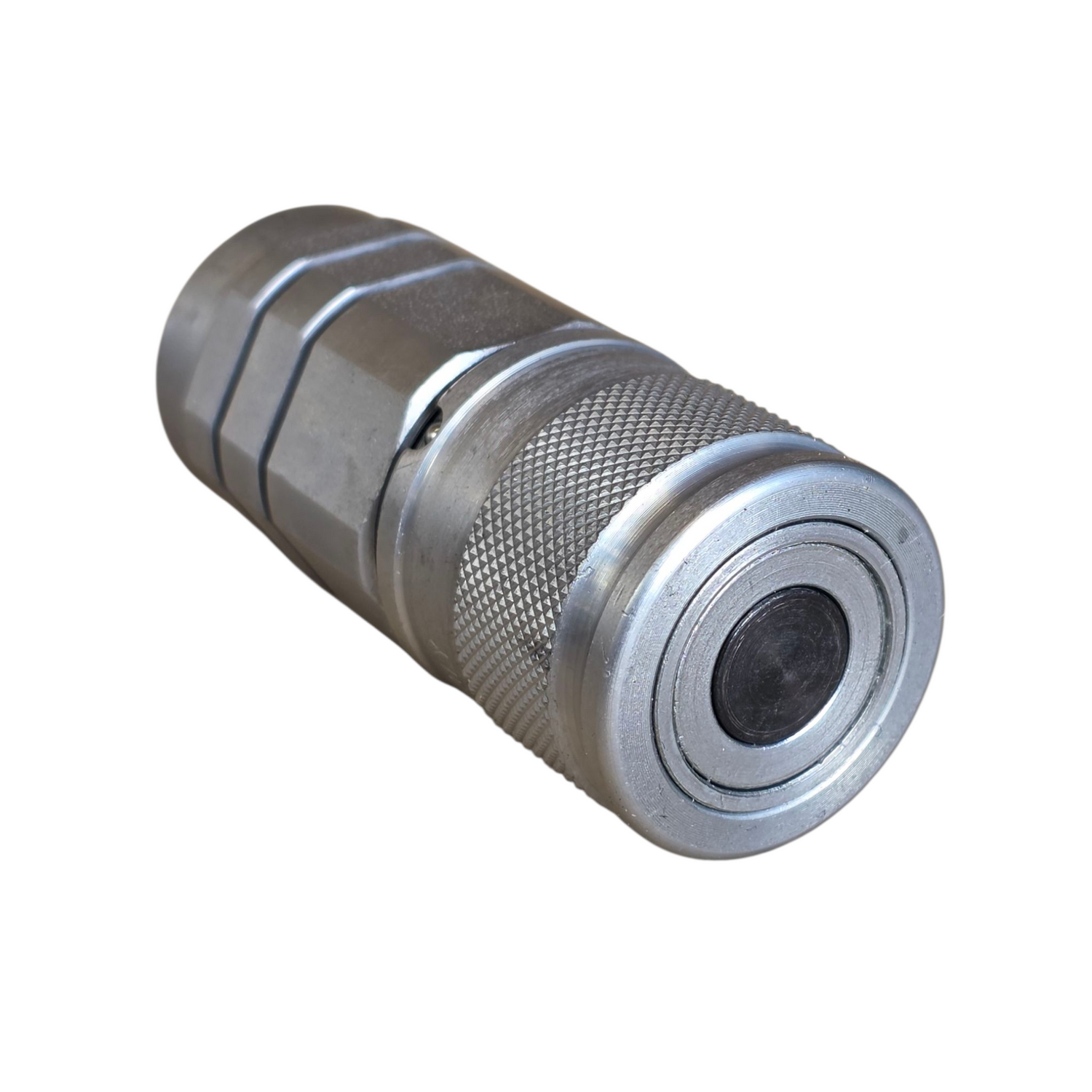

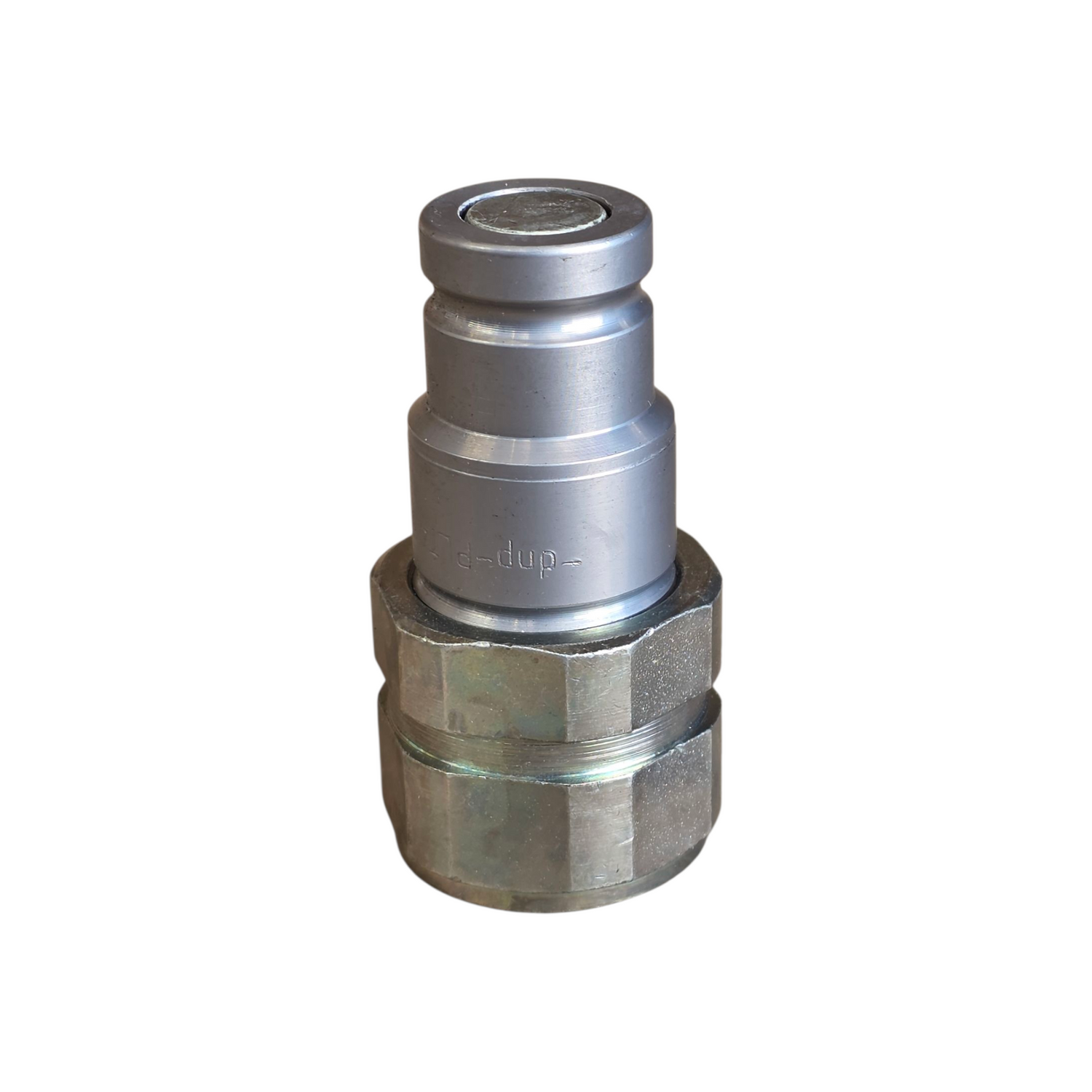

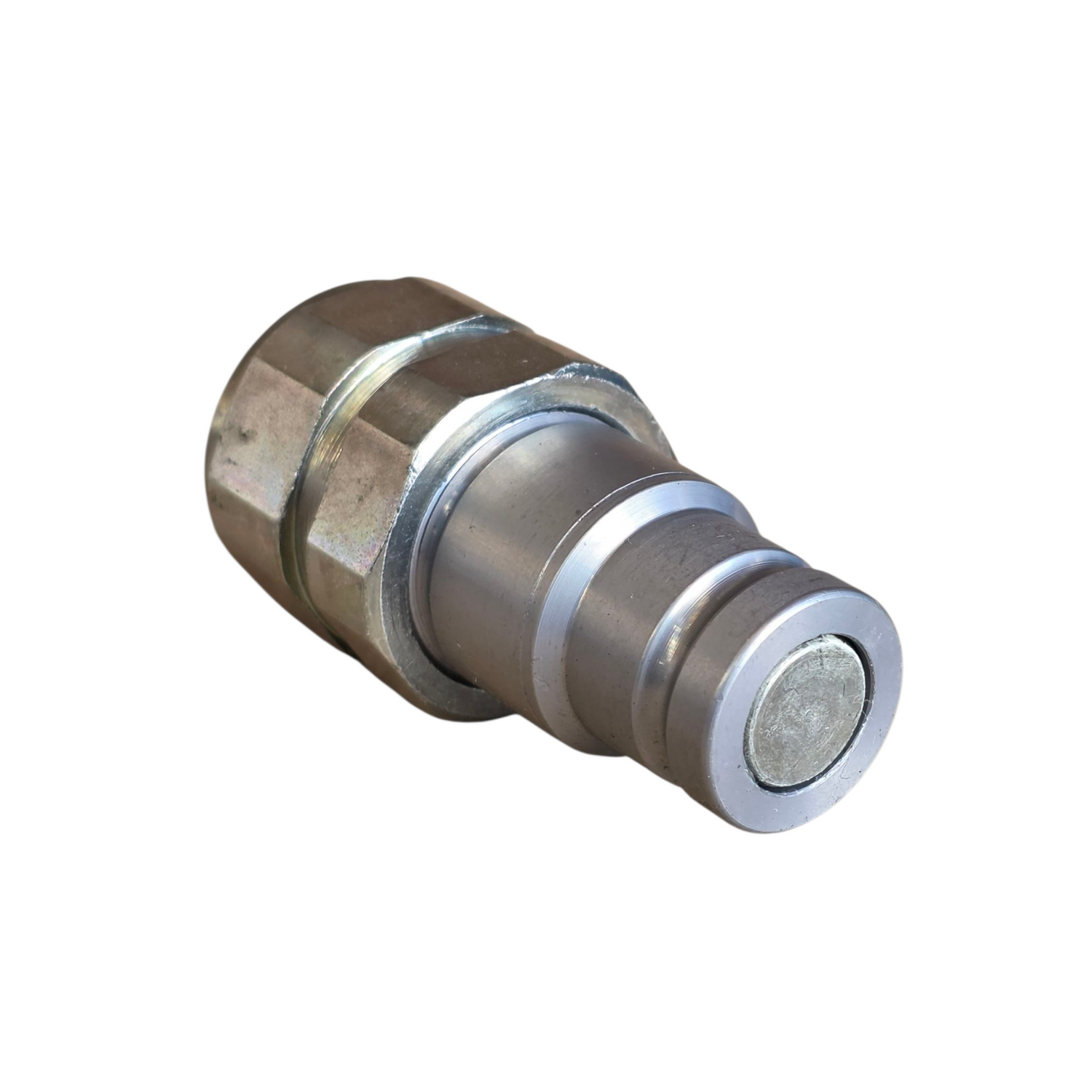

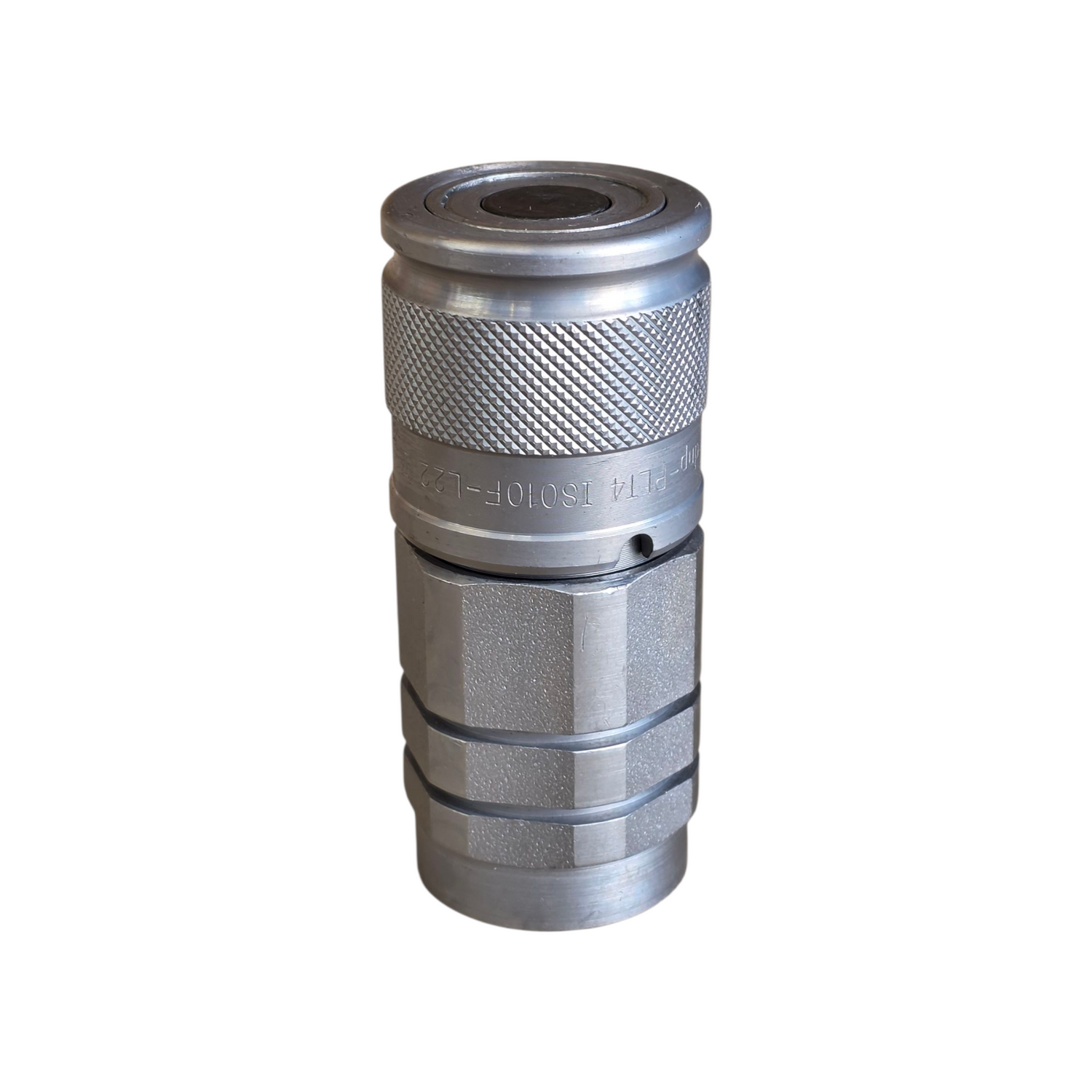

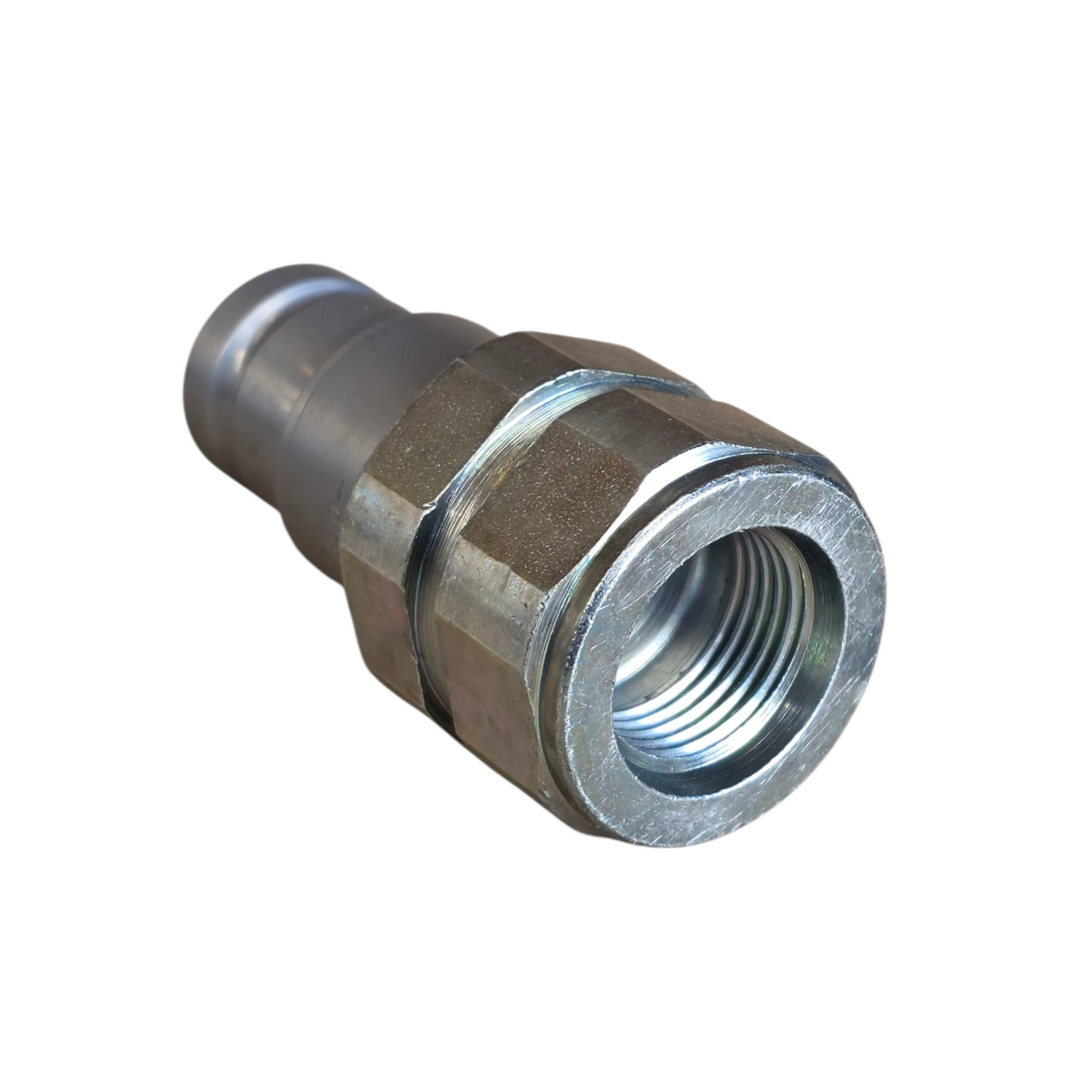

Genuine DNP PLT4 ISO16028 Flat Face Hydraulic Couplings
Premium performance. Zero compromise.
The DNP PLT4 Series is a range of high-pressure flat-face hydraulic quick couplings manufactured by DNP Industriale Srl (Italy) to meet the stringent ISO 16028 standard. These genuine DNP couplings are built for demanding hydraulic systems where durability, cleanliness, and reliability are critical — such as in excavators, attachments, and industrial equipment.
Product Overview
The DNP PLT4 design features flat mating faces that minimize oil spillage and prevent dirt ingress during connection and disconnection. Each coupling is machined from high-strength steel and finished in zinc-nickel (Zn-Ni) plating for extreme corrosion protection, providing up to 720 hours of red rust resistance in salt spray testing. With working pressures up to 500 bar, these couplings deliver consistent, leak-free performance under the harshest conditions.
Key Features
- Meets ISO 16028 standard – fully interchangeable with other flat-face brands
- Flat face design – prevents fluid loss and contamination during coupling
- High-pressure rated – 350 to 500 bar working pressure (varies by size)
- Durable steel body with Zn-Ni coating for superior corrosion resistance
- Push-to-connect system for quick, easy, and secure coupling
- Locking mechanism: precision radial ball system for long service life
- Thread options: BSP, NPT, SAE, and Metric available
- Seal options: NBR and PU (standard) or optional FKM/EPDM
- Temperature range: -25°C to +100°C
Applications
- Excavators, attachments, and quick hitch systems
- Construction and earthmoving equipment
- Agricultural and forestry hydraulics
- Industrial plant and tool circuits
- Any hydraulic system requiring clean, reliable quick connection
Technical Specifications
- Standard: ISO 16028 (DN06 → DN30)
- Type: Flat Face Quick Coupling
- Working Pressure: 350–500 bar (varies by size)
- Material: Steel
- Finish: Zn-Fe (Cr III) or Zn-Ni coating
- Seals: NBR + PU (standard) / FKM / EPDM optional
- Temperature: -25°C to +100°C
- Connection Under Residual Pressure: Not allowed
Interchangeable with: Stucchi FIRG / Faster 2FFI / Parker FF / Holmbury HCP / CEJN 525 Series

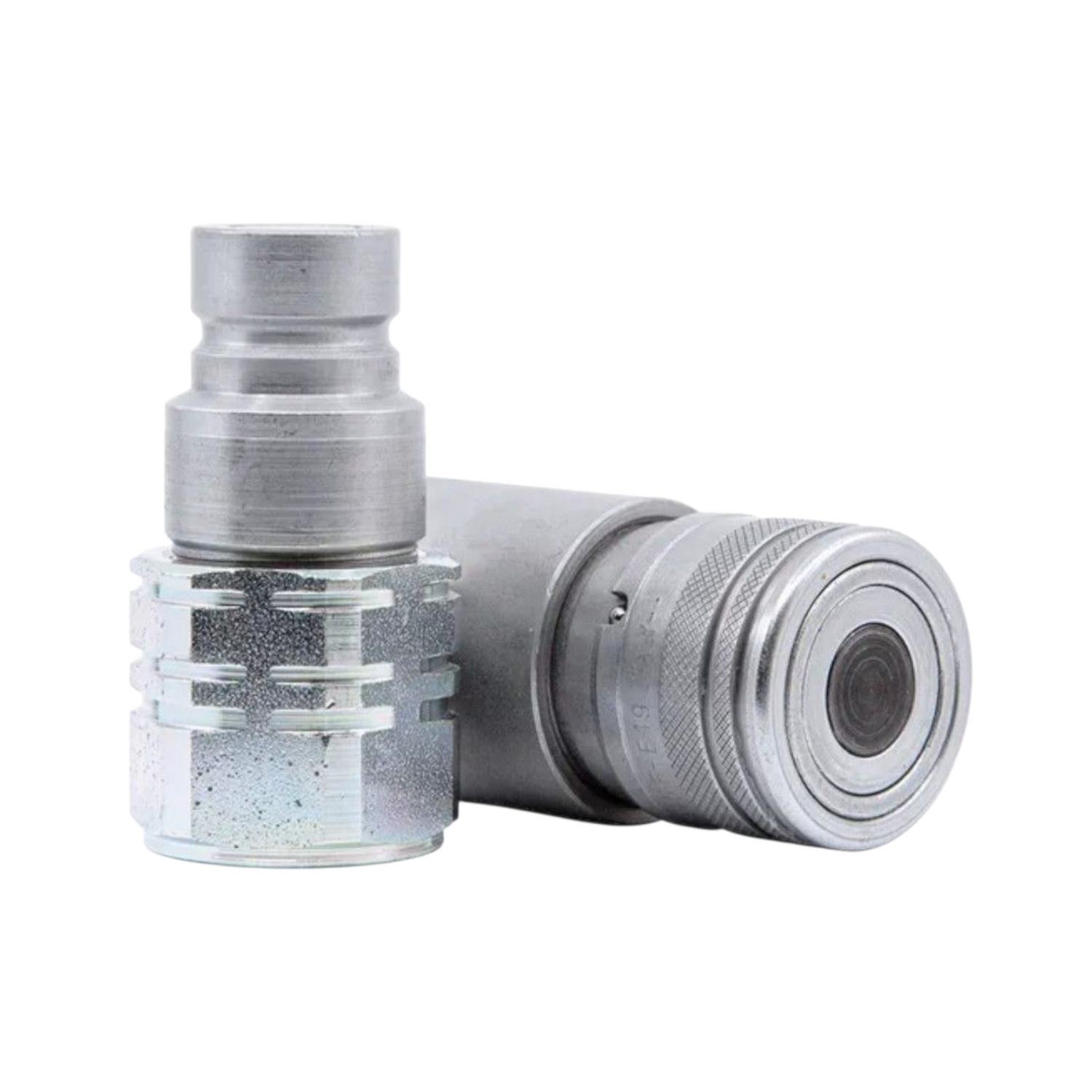

Available individually or as complete male/female sets. Contact our team for sizing or compatibility advice.
