Bi-Directional High Pressure BSP Flow Control Valve
Description
Description
PRODUCT TYPE:

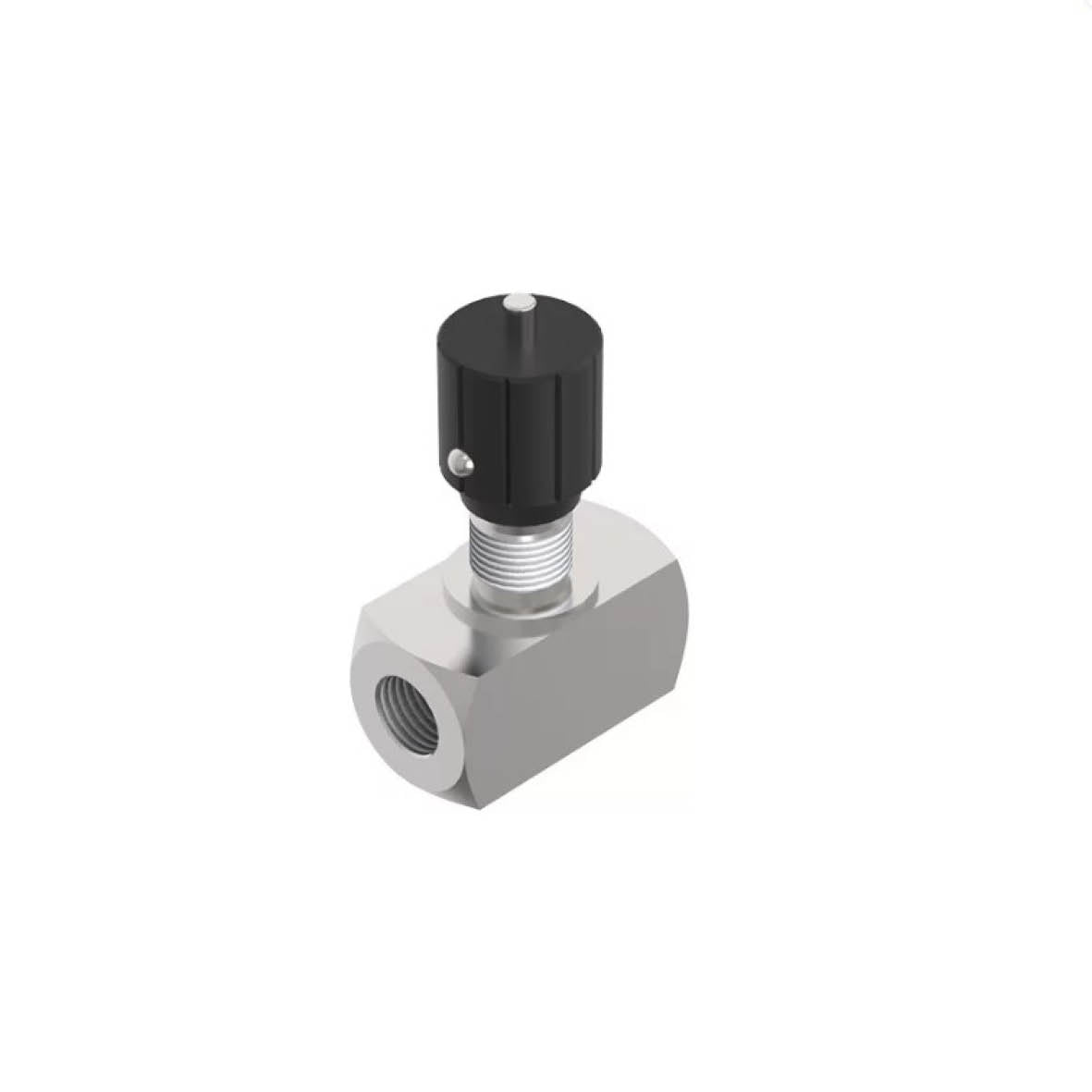

Bi-Directional High Pressure BSP Flow Control Valve QFV Series
APPLICATION OVERVIEW:
The QFV Series Bi-Directional Flow Control Valve offers precision flow regulation in both directions for high-pressure hydraulic systems. Perfect for controlling the speed of cylinders or motors, balancing hydraulic circuits, and fine-tuning flow in industrial and mobile equipment.
Built from high-strength carbon steel with a durable aluminium handle, these valves provide smooth and reliable control under high-pressure conditions. Compatible with MHA NDV, Parker N, and Hydac DV valves €” with standard crack pressure of 0.35 BAR (optional 3.5 BAR available). Zinc CR3 plated as standard €” Zinc Nickel also available.
FEATURES & BENEFITS:
- Bi-directional flow control €” regulates flow in both directions
- High-pressure BSP threaded ports €” up to 350 BAR
- Precision flow adjustment for hydraulic cylinders & motors
- Carbon steel body €” long service life in demanding conditions
- Aluminium handle €” easy to operate
- Crack pressure: Standard 0.35 BAR (optional 3.5 BAR)
- Compatible with MHA NDV, Parker N, Hydac DV valves
- Zinc CR3 plating standard €” Zinc Nickel optional (MOQ applies)
TECHNICAL SPECIFICATIONS:
- Body: Carbon steel
- Handle: Aluminium
- Plating: Zinc CR3 (Zinc Nickel optional)
- Crack Pressure: 0.35 BAR standard (3.5 BAR optional)
- Working Pressure: 350 BAR
- Port Type: BSPP threaded
COMMON APPLICATIONS:
- Controlling hydraulic cylinder speed (bi-directional)
- Motor flow regulation
- Balancing hydraulic circuits
- Flow fine-tuning on mobile & industrial equipment
AVAILABLE SIZES:
- QFV-04: 1/4€ BSPP €” 350 BAR
- QFV-06: 3/8€ BSPP €” 350 BAR
- QFV-08: 1/2€ BSPP €” 350 BAR
- QFV-12: 3/4€ BSPP €” 350 BAR
- QFV-16: 1€ BSPP €” 350 BAR
Need help selecting the right flow control valve for your system? Our team can help you choose valve size, port type, and crack pressure options €” contact us today for expert advice and trade pricing.
