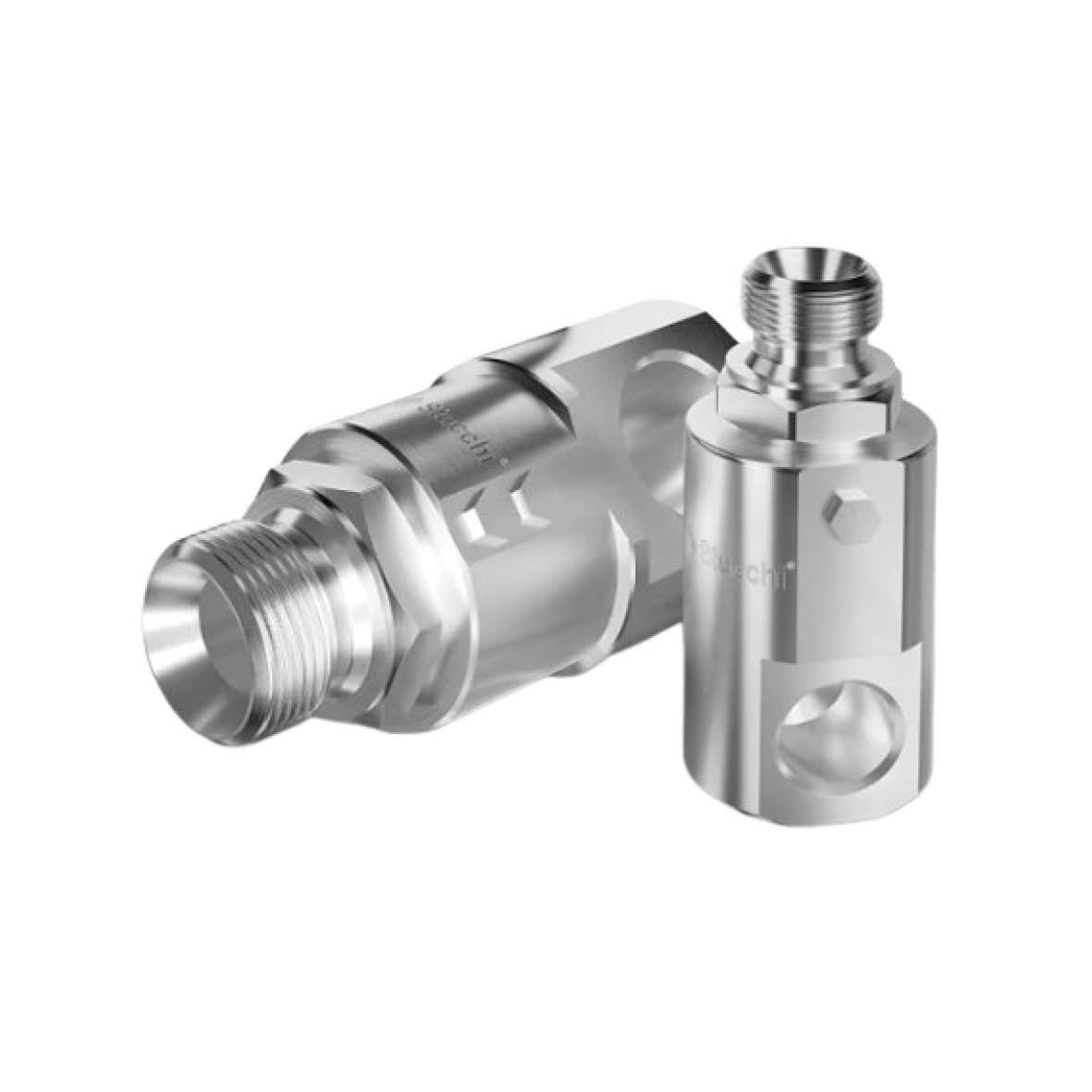

Hydraulic Swivel 90° BSPP Male/Female
Description
Description
PRODUCT TYPE:
90° Hydraulic Swivel Joint BSPP Male/Female G90 Series
APPLICATION OVERVIEW:
The G90 Series 90° Hydraulic Swivel Joint offers reliable rotation between hose assemblies and rigid components €” helping reduce hose stress, absorb movement and extend service life. Its compact, modular design is ideal for reducing system rigidity and preventing hose damage in high-pressure hydraulic circuits.
Designed for use between hydraulic hoses and fixed machinery, the G90 swivel compensates for rotation, vibration and misalignment while maintaining full pressure sealing. Commonly used on mobile equipment, earthmoving plant, agricultural machinery and industrial hydraulic systems. Available in sizes from 1/4€ to 2-1/2€.
FEATURES & BENEFITS:
- Compact 90° swivel joint €” BSPP Male/Female
- Carbon steel body €” Zinc CR3 plated (Zinc Nickel optional)
- Nitrile (NBR) seals with pressure back-up ring for superior sealing
- High number of locking balls €” reduces brinelling and wear
- Dust seal or O-ring to protect against dirt ingress
- Reduces hose twist and improves flexibility in hydraulic circuits
- Rated up to 400 BAR depending on size
- Modular design €” easy to install between hose & fixed ports
IMPORTANT APPLICATION NOTES:
- Designed to be mounted between a flexible hose and rigid component
- Requires flexible connector at one end (warranty void without)
- Suitable for standard hydraulic oils €” not for corrosive, flammable, or gas media
TECHNICAL SPECIFICATIONS:
- Body: Carbon steel
- Seals: NBR with back-up ring (Dust seal included on larger sizes)
- Plating: Zinc CR3 (Zinc Nickel optional)
- Working Pressure: Up to 400 BAR (size dependent)
- Temperature Range: -20°C to +100°C
- Thread Type: BSPP
COMMON APPLICATIONS:
- Mobile hydraulic equipment
- Earthmoving plant
- Agricultural machinery
- Industrial hydraulic systems
- Oil & Gas
- Cooling & Refrigeration
- Food & Chemical Industry (compatible fluids only €” confirm seal compatibility)
AVAILABLE SIZES:
- 1/4€ BSPP
- 3/8€ BSPP
- 1/2€ BSPP
- 3/4€ BSPP
- 1€ BSPP
- 1-1/4€ BSPP
- 1-1/2€ BSPP
- 2€ BSPP
- 2-1/2€ BSPP
To ensure correct selection, please confirm flow performance and working pressure requirements for your system. Need assistance? Our team can help you match swivel joints, hose assemblies and hydraulic ports €” contact us today for expert advice and trade pricing.
