QFF Flat Face ISO 16028 Hydraulic Coupling
QFF Flat Face ISO 16028 Hydraulic Coupling - FEMALE COUPLER / 1/4" BODY X 1/4" BSPP .
Couldn't load pickup availability
Warranty
Warranty
We pass on full manufacturer warranties for all products — minimum 12 months. For hose assemblies built by Tasmanian Hose Solutions, we offer a 2-year workmanship warranty (excluding normal wear and tear, misuse, or incorrect selection of hose, fittings or application). Contact us if you need support — we stand behind what we build.
Delivery and Shipping
Delivery and Shipping
We ship Australia-wide using a mix of Road Express and Premium Express services, depending on the size and weight of your order.
Smaller items often ship via StarTrack Premium Satchels (3kg & 5kg), which typically arrive within 1–2 business days to most metro areas. Larger or heavier items will ship via Road Express, with delivery generally taking 3–7 business days, and up to 10 days in remote regions.
QFF Flat Face ISO 16028 Hydraulic Coupling
Description
Description
PRODUCT OVERVIEW:
The QFF Flat Face Quick Release Coupling is engineered for reliability in the most demanding hydraulic systems. Built to ISO 16028 standards, it delivers clean, leak-free disconnections with minimal fluid loss €” perfect for applications where safety, cleanliness, and durability matter most.
KEY FEATURES:
- Flat face valve design prevents fluid loss and contamination
- Steel body with durable trivalent plating for corrosion resistance
- Standard seals: Nitrile (Buna N)
- Temperature Range: -20°C to +120°C
- Optional seals: Viton, EPDM, Neoprene
- Thread Options: BSPP (standard), NPT & UNF (optional)
COMMON APPLICATIONS:
- Construction & earthmoving equipment
- Public utility & service vehicles
- Rail maintenance & mobile hydraulic tools
- Hostile environments requiring easy-clean connections
PERFORMANCE:
- Working pressures up to 315 bar (size dependent)
- Leak-free connection even under residual pressure*
- Robust design handles high vibration & tough conditions
INTERCHANGE STANDARDS:
- Faster FFI/FFN, Parker FE, Aeroquip FD89
- Safeway S56, DNP PLT4, Hansen QA29000, Stucchi FIRG

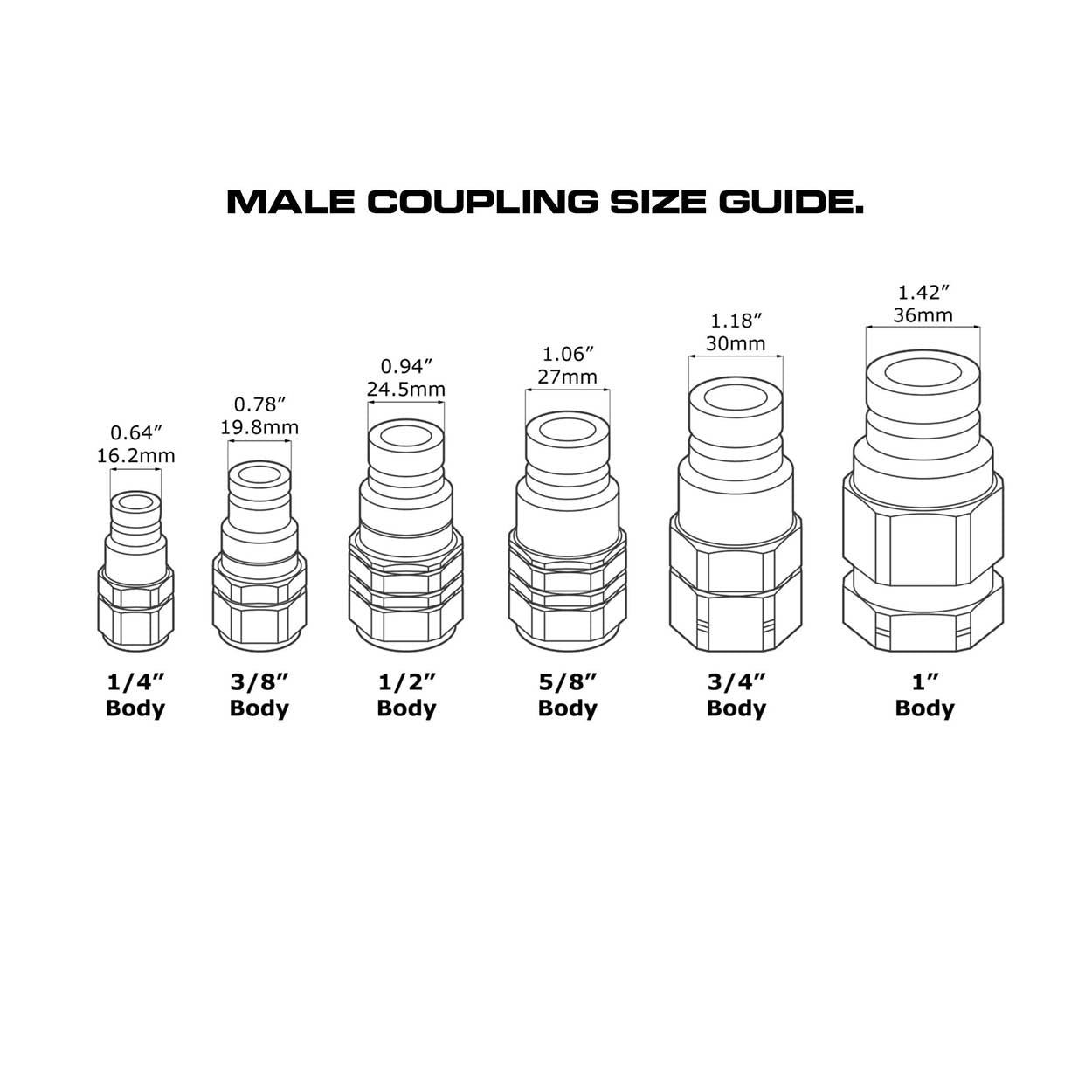

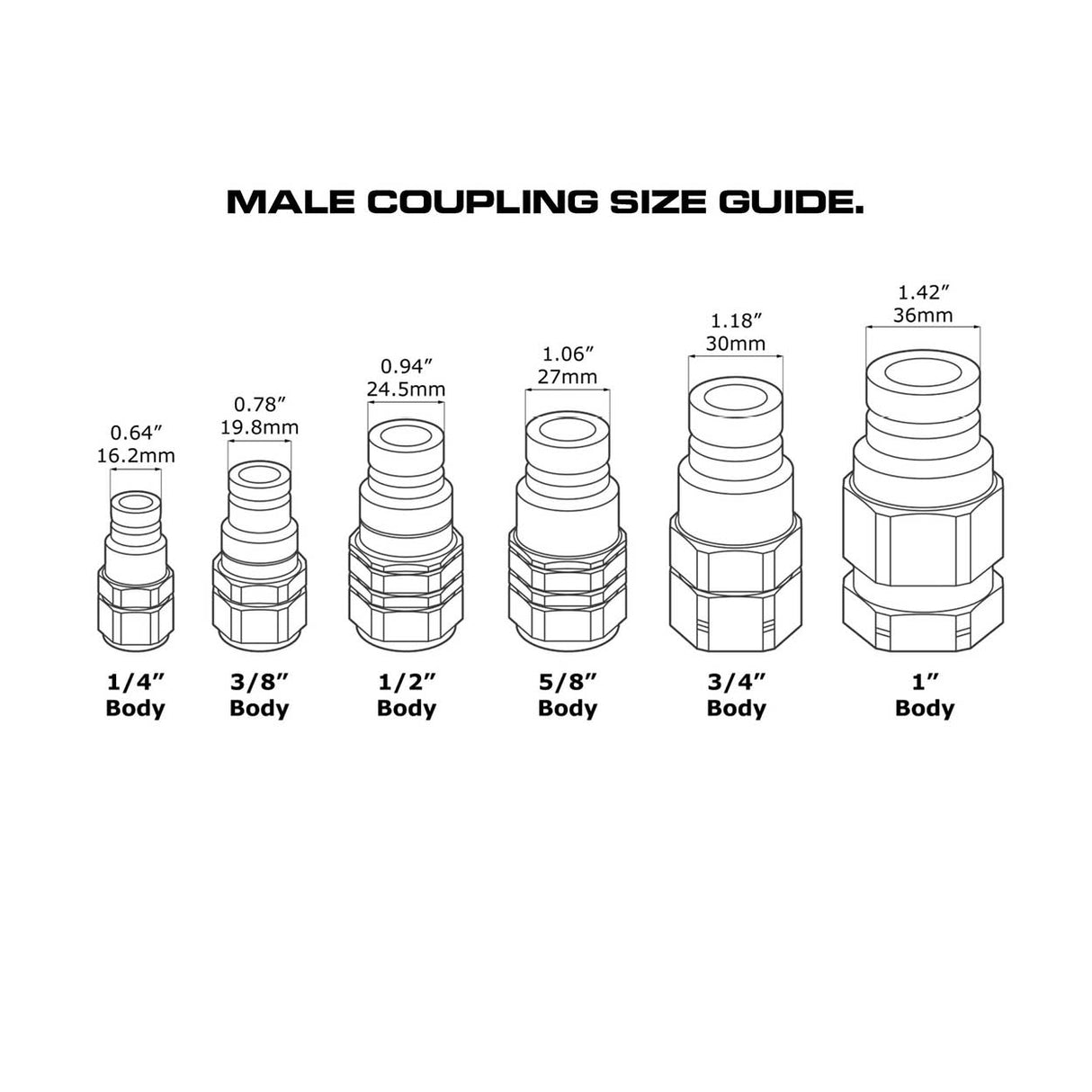

Available in sizes from 1/4€ to 1-1/4€ BSPP Female & Male €” UNO variants also available. Check the dropdown for full range and thread options.
*Dependent on system setup and application
Need help with sizing or compatibility? Contact our team for expert advice or trade pricing.
