TYPE:

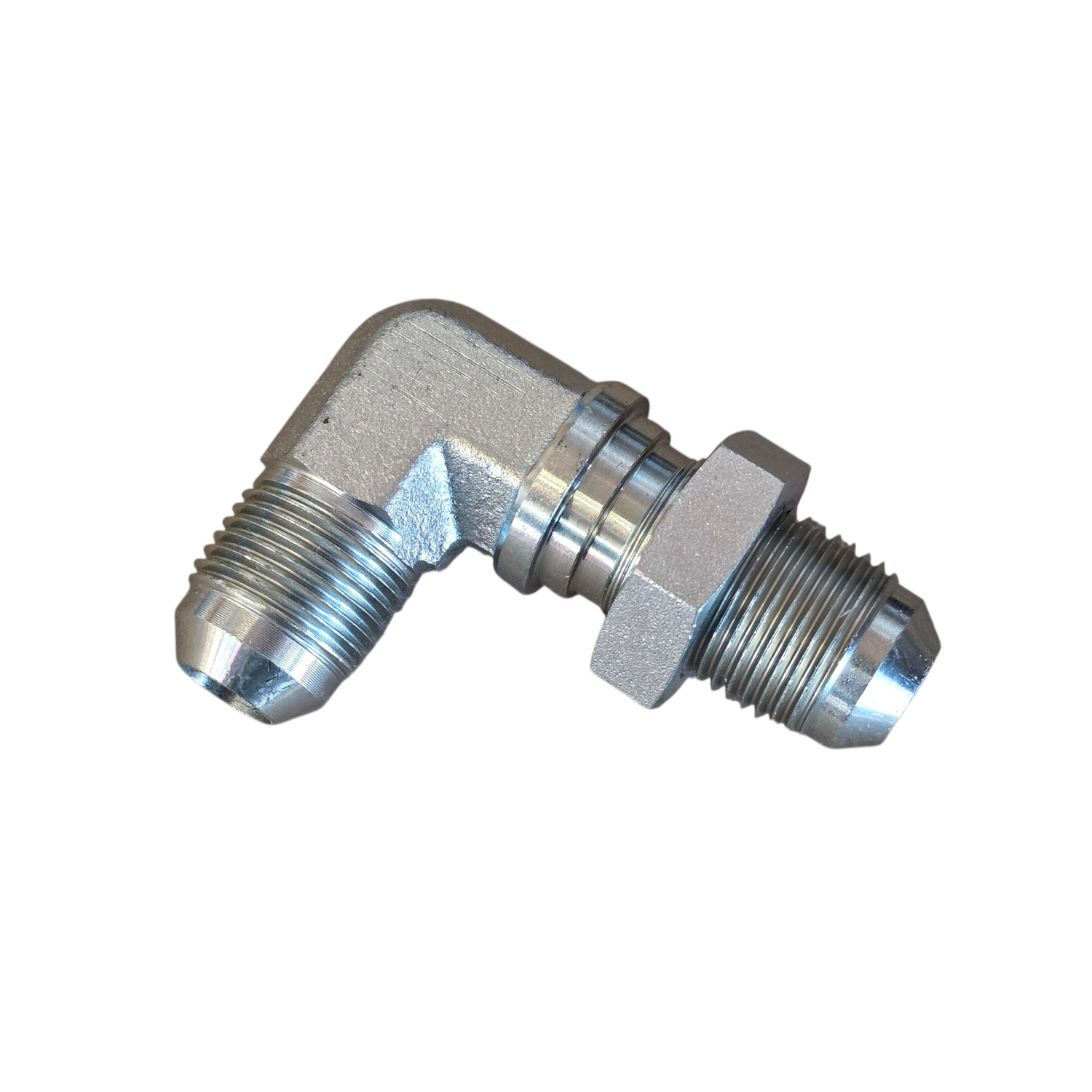

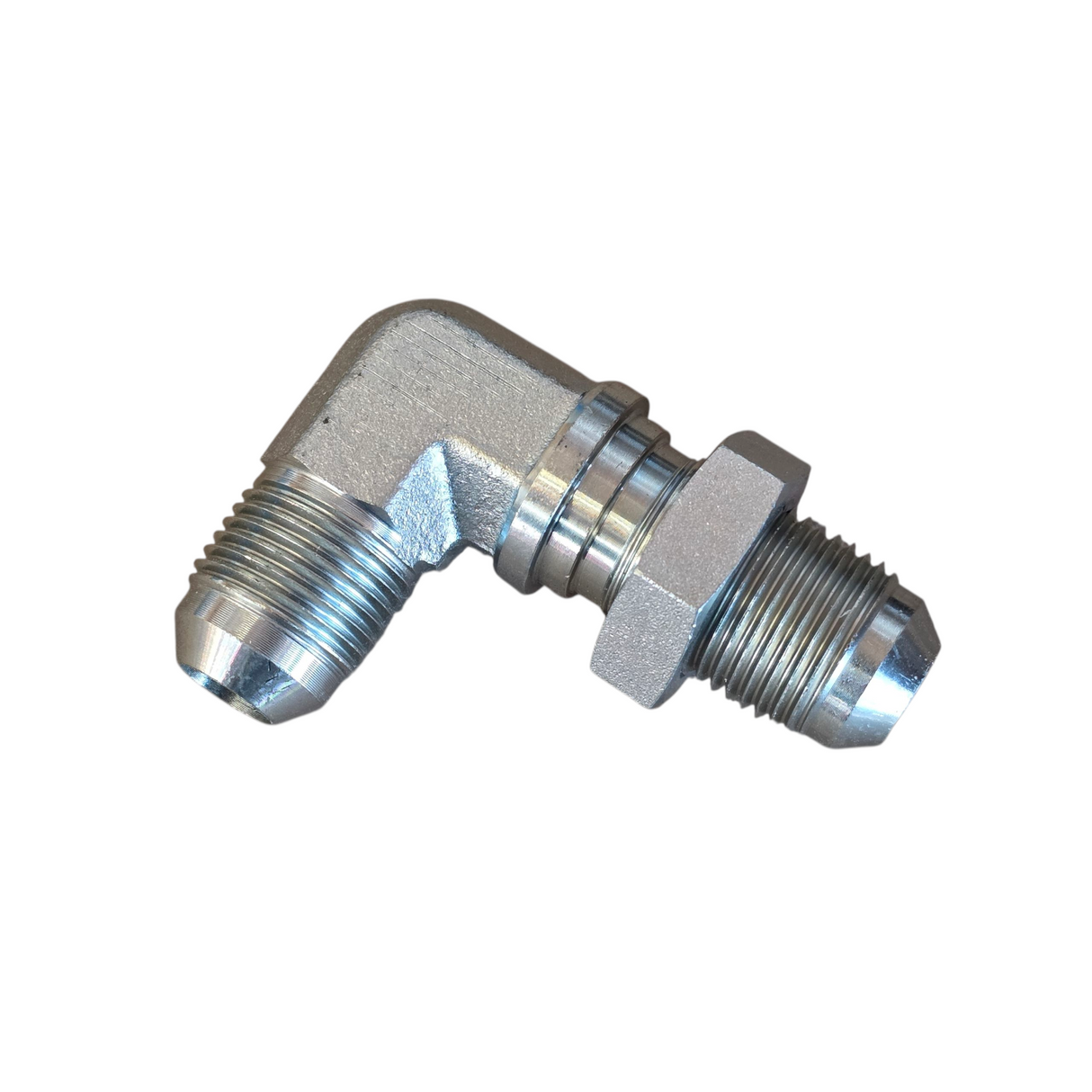

JIC Male Bulkhead x JIC Male – 90° Elbow
DESCRIPTION:
This 90° bulkhead elbow adaptor joins two JIC male ends in a right-angle configuration through a wall or panel. Suited for SAE J514 37° flare hose and tube systems, it enables compact corner routing in hydraulic control panels or machinery. Locknut included for panel mounting.
THREAD EXPLANATION:
JIC (SAE J514): 37° flare threads for metal-to-metal sealing in mobile and industrial applications.
COMMON APPLICATIONS:
- Panel-mounted 90° hose transitions
- Custom hose routing and test circuits
- Used in ag, transport, and hydraulic system builds
COMMONLY FOUND ON (and more):
CAT, Parker, John Deere, Bobcat – for right-angle hose routing in control boxes or machinery frames.Have questions or need help finding the right fitting? Our team is here to help you match threads, confirm compatibility, and get your hydraulic systems running reliably. Contact us for assistance or wholesale pricing today.
