TYPE:

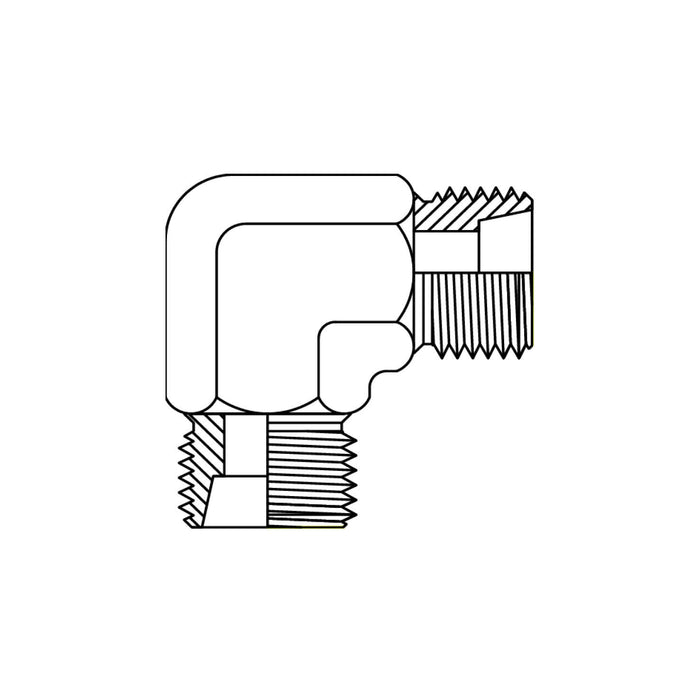

90° Elbow – Metric DKL Male x Metric DKL Male
CONNECTIONS:
- End 1 & 2: Metric DKL Male – 24° Cone, DIN Light Series (ISO 8434-1)
DESCRIPTION:
The 1C9 elbow features DIN Light Series DKL threads on both ends, using a 24° cone seat to form a reliable metal-to-metal seal. This 90° adaptor is perfect for European hydraulic systems needing compact hose or tube routing in tight spaces.
COMMON APPLICATIONS:
- Hydraulic manifolds, valve banks, and control blocks
- Used in European OEM machines, tractors, and forklifts
SUITS THESE MACHINES:
- CLAAS, Fendt, Valtra, Same, and industrial Euro systems
THREAD & SEAL DETAILS:
- Metric DKL: DIN 2353 Light Series – 24° cone, ISO 8434-1
Need a 90° adaptor for DIN Light Series connections? This fitting helps you route lines efficiently with full pressure sealing.
