TYPE:

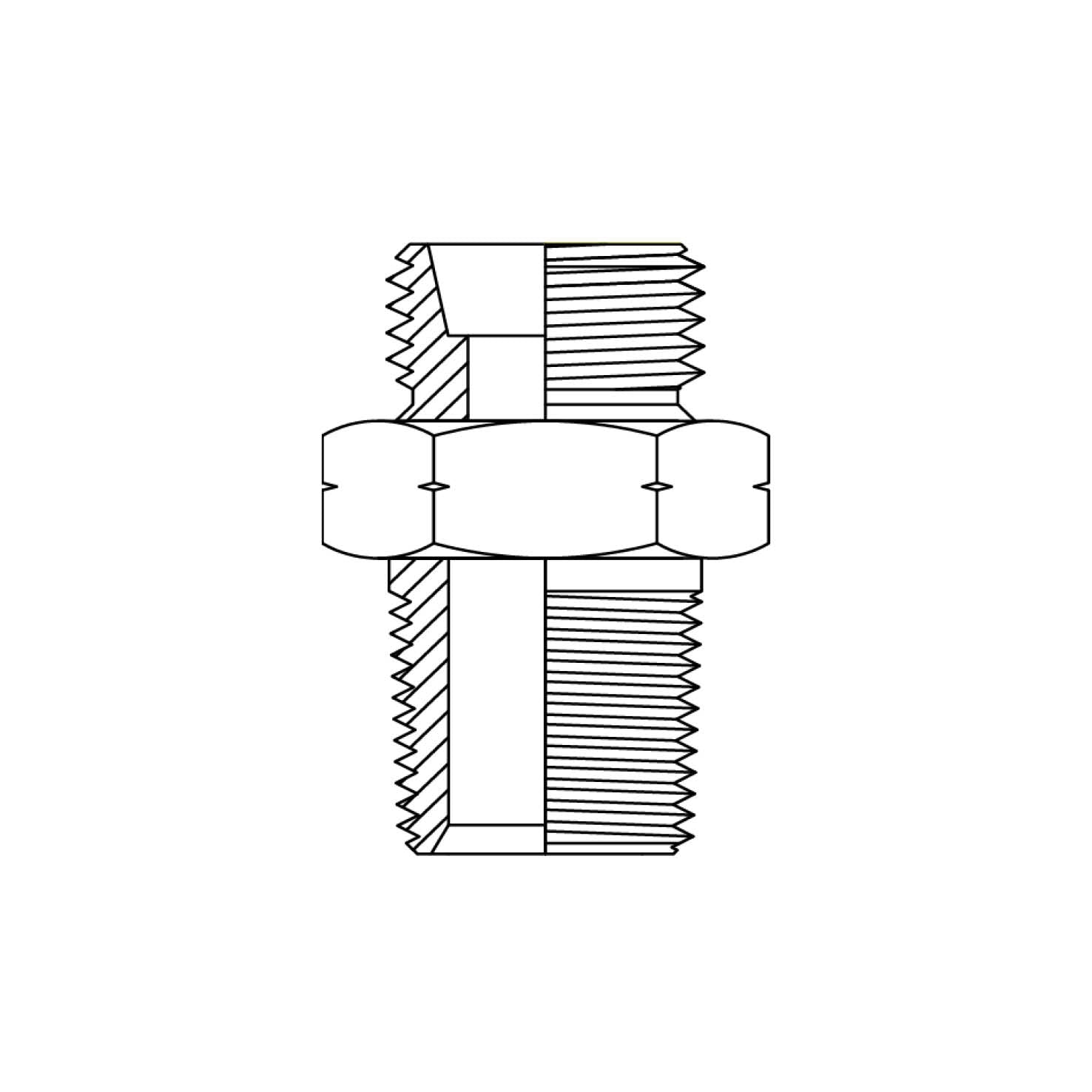

Straight Male x Male Nipple – Metric DKL Male x NPT Male
CONNECTIONS:
- End 1: Metric DKL Male – DIN 2353 Light Series, 24° Cone
- End 2: NPT Male – National Pipe Taper (ANSI B1.20.1)
DESCRIPTION:
The 1CN adaptor is designed to connect a metric DKL (DIN Light Series) hose or fitting to an NPT female port. It combines a 24° metal-to-metal cone seal (DIN 2353) on one end with a tapered thread seal (NPT) on the other. This makes it ideal for transitioning between European-style hydraulic fittings and American pipe-threaded ports commonly found on machinery imported from or used in the USA.
COMMON APPLICATIONS:
- Adapting DIN metric hydraulic hoses to NPT-threaded ports or fittings
- Used in retrofitting or maintaining global equipment with mixed standards
- Field repairs on gear combining European and North American thread formats
- Ideal for OEM replacement, mobile hose service, or custom installations
SUITS THESE MACHINES:
- Fendt, CLAAS, Valtra and Deutz with DIN-based hydraulics
- Skid steers, loaders, and attachments using NPT-threaded manifolds or pumps
- Imported industrial plant or machinery combining DIN and NPT fittings
THREAD & SEAL DETAILS:
- DKL (Metric): 24° cone seal – DIN 2353 Light Series (ISO 8434-1)
- NPT: Tapered thread – ANSI B1.20.1, requires thread tape or sealant
- Note: Mixed thread applications must be properly aligned and sealed
Have a DIN fitting and need to connect to an NPT port? Our team can help identify threads, seals, and ensure you get the right adaptor for the job.
