TYPE:

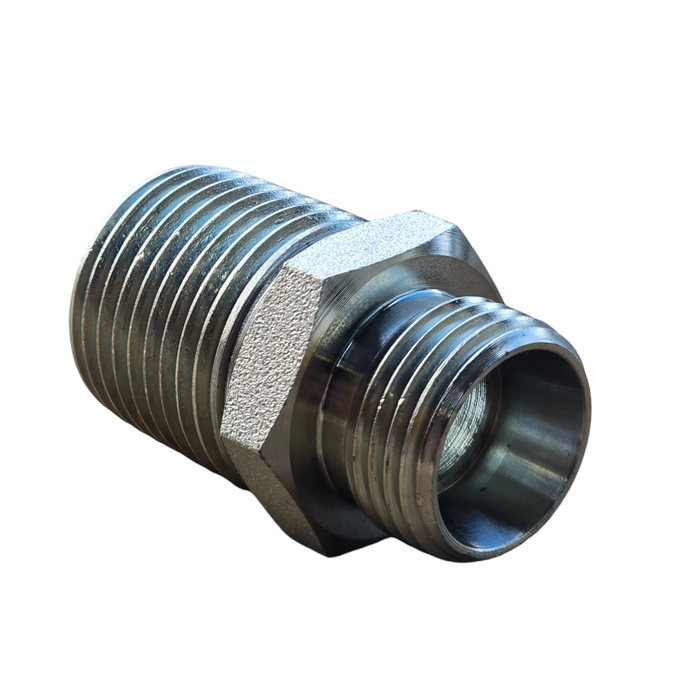

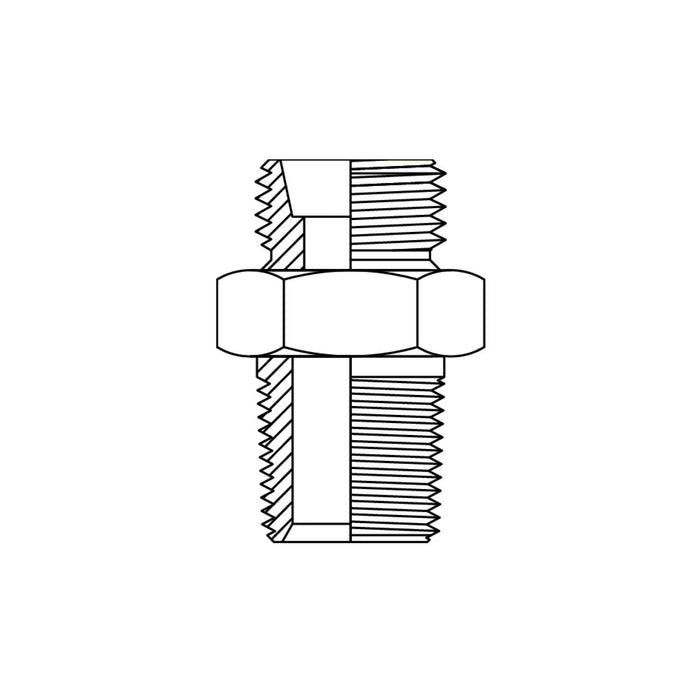

Straight Male x Male Nipple – Metric DKL Male x BSPT Male
CONNECTIONS:
- End 1: Metric DKLL/DKL Male – DIN 2353 Light Series, 24° Cone
- End 2: BSPT Male – British Standard Pipe Taper (ISO 7/1)
DESCRIPTION:
This 1CT adaptor allows connection between a Metric DKL Male (DIN Light Series) fitting and a BSPT female port. The DKL end uses a 24° cone to form a metal-to-metal seal with a DIN female cone seat, while the BSPT end is a tapered thread that seals via thread interference. Perfect for adapting European-style hose ends to threaded ports commonly used in Australian and older British equipment.
COMMON APPLICATIONS:
- Joining DIN metric hoses to BSPT female ports
- Used in agricultural equipment, industrial plant, and field repairs
- Found on tractors, spreaders, sprayers, and factory systems
- Ideal when integrating or retrofitting international hydraulic components
SUITS THESE MACHINES:
- European equipment (CLAAS, SAME, Deutz, etc.) with DIN hoses
- Australian farm machinery with BSPT-threaded valves or ports
- Hydraulic systems that mix metric fittings and tapered BSP threads
THREAD & SEAL DETAILS:
- DKL (Metric): 24° cone – metal-to-metal seal per DIN 2353 Light Series
- BSPT: British Standard Pipe Taper – thread seal (requires thread tape or sealant)
- Standards: DIN 2353 (Light) • ISO 8434-1 • BSPT ISO 7/1
Need help matching metric DIN fittings to BSPT ports? Our team can confirm thread types and help you select the correct adaptor for your application.
