TYPE:

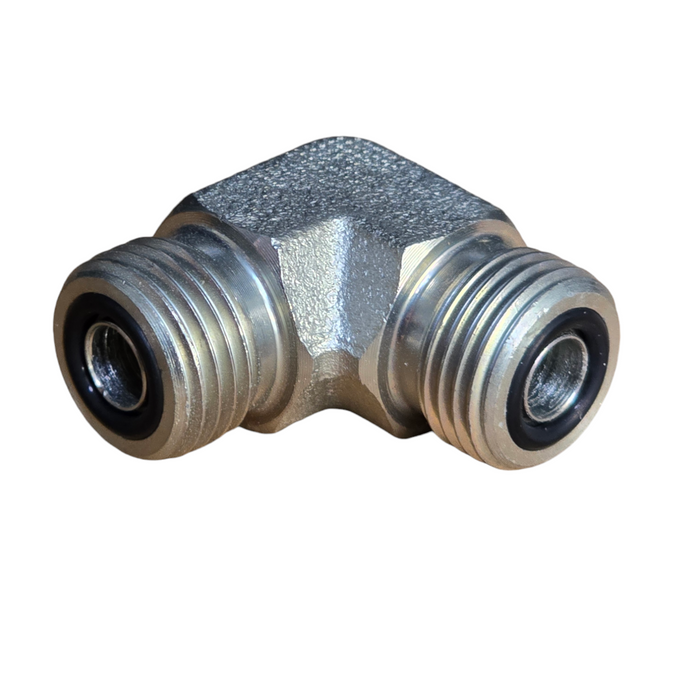

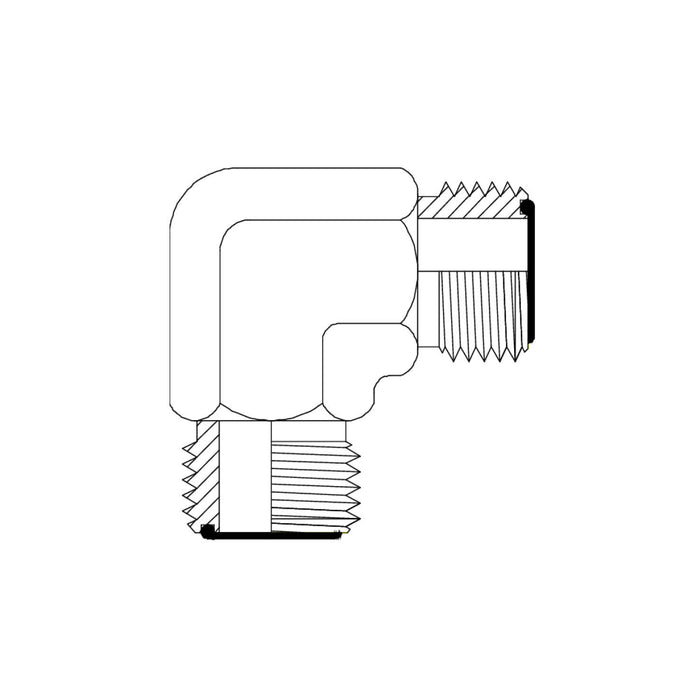

90° Elbow – ORFS Male x ORFS Male
CONNECTIONS:
- End 1 & 2: ORFS Male – O-Ring Face Seal (SAE J1453)
DESCRIPTION:
The 1F9 adaptor connects two ORFS male threads at a 90° angle, allowing low-leak, high-pressure directional changes in compact hydraulic layouts. ORFS connections use elastomeric O-ring face sealing, making them ideal for systems with vibration or high flow.
COMMON APPLICATIONS:
- High-pressure hoses, control valves, and pilot circuits
- Used in earthmoving, forestry, and agricultural hydraulics
SUITS THESE MACHINES:
- CAT, John Deere, Hitachi, Bobcat, Komatsu, and more

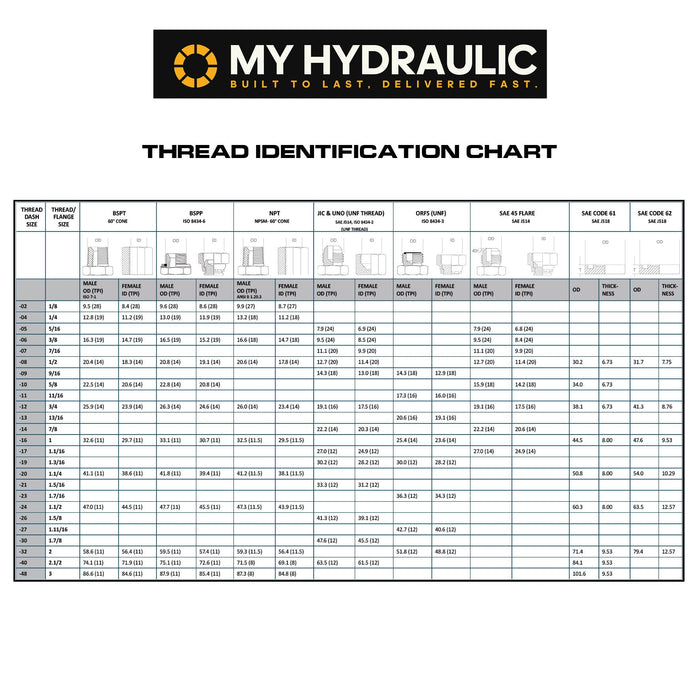

THREAD & SEAL DETAILS:
- ORFS: SAE J1453 – UNF thread, elastomeric face seal
Need a compact 90° turn between two ORFS ports? This fitting provides a leak-free seal in high-vibration zones.
