TYPE:

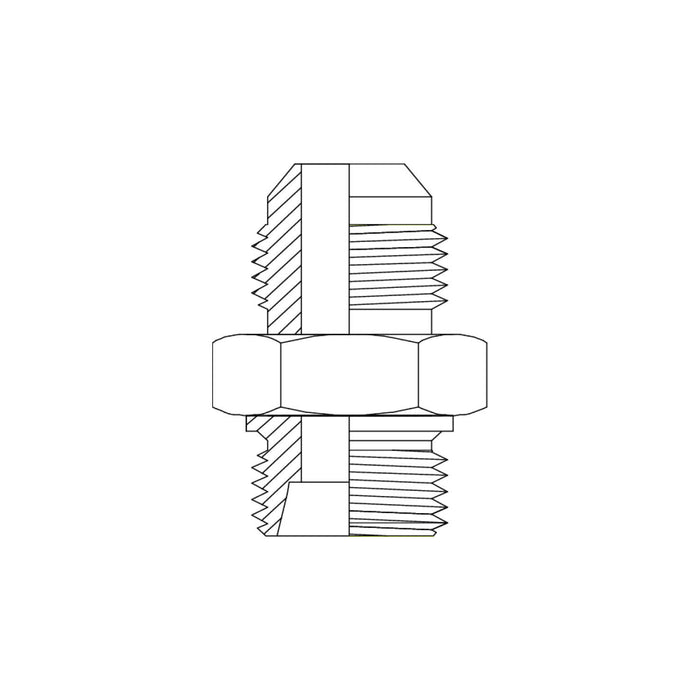

Straight Male x Male Nipple – JIC Male x Metric DKS Male
CONNECTIONS:
- End 1: JIC Male – 37° Flare (SAE J514)
- End 2: Metric DKS Male – 24° Cone, DIN 2353 Heavy Series
DESCRIPTION:
The 1JD adaptor bridges JIC Male (SAE 37°) to Metric DKS Male (DIN Heavy Series). It’s used to connect high-pressure European DIN components to American hydraulic systems. The JIC side seals on a flare, while the metric side seals via a 24° cone designed for higher pressure ratings than DKL fittings.
COMMON APPLICATIONS:
- Connecting DIN heavy hoses or valves to JIC hydraulic ports
- Used in mining, forestry, earthmoving, and industrial hydraulic equipment
SUITS THESE MACHINES:
- Komatsu, Volvo CE, Hitachi, and Caterpillar
THREAD & SEAL DETAILS:
- JIC: SAE J514 – 37° flare, UNF thread
- DKS: DIN 2353 Heavy Series – 24° cone (ISO 8434-1)
Not sure if you need DKL or DKS? We’ll help you identify the right DIN series to match your fitting.
