TYPE:
45° Elbow – JIC Male x Code 61 Flange
CONNECTIONS:
- End 1: JIC Male – 37° Flare (SAE J514)
- End 2: Code 61 Flange – SAE J518
DESCRIPTION:
The 1JFL4 fitting is a 45-degree elbow adaptor designed to connect a JIC hose end to a Code 61 flange port. It allows for angular mounting of JIC hoses onto high-flow SAE flange ports — ideal for systems that require both flexibility and strength in the connection.
COMMON APPLICATIONS:
- Adapting JIC hoses to Code 61 pumps, valves, or manifolds
- Used in mining, heavy construction, and high-flow hydraulics
SUITS THESE MACHINES:
- CAT, Komatsu, Volvo CE, Hitachi, and heavy-duty OEM systems

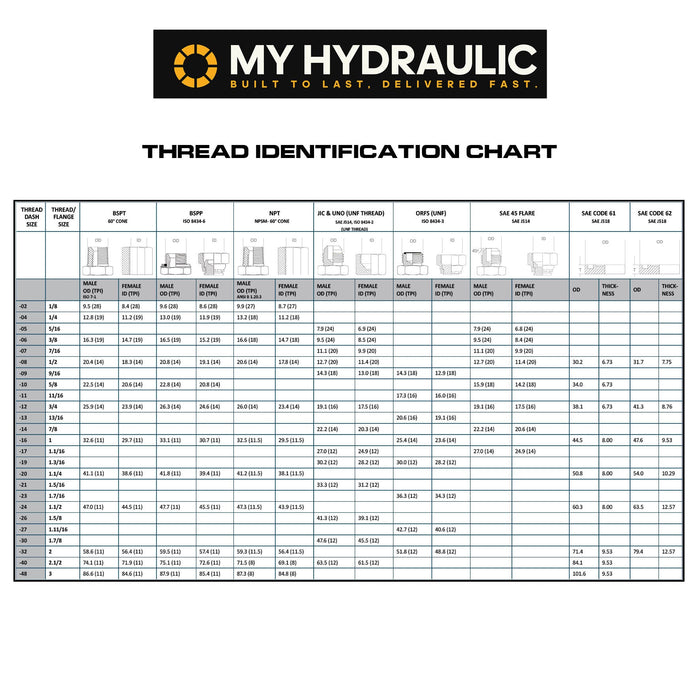

THREAD & SEAL DETAILS:
- JIC: SAE J514 – 37° flare
- Code 61: SAE J518 flange with O-ring face seal and bolt-on mounting
Need to angle a JIC hose into a Code 61 flange? This 45° adaptor provides flexibility, strength, and reliable sealing under pressure.
