TYPE:

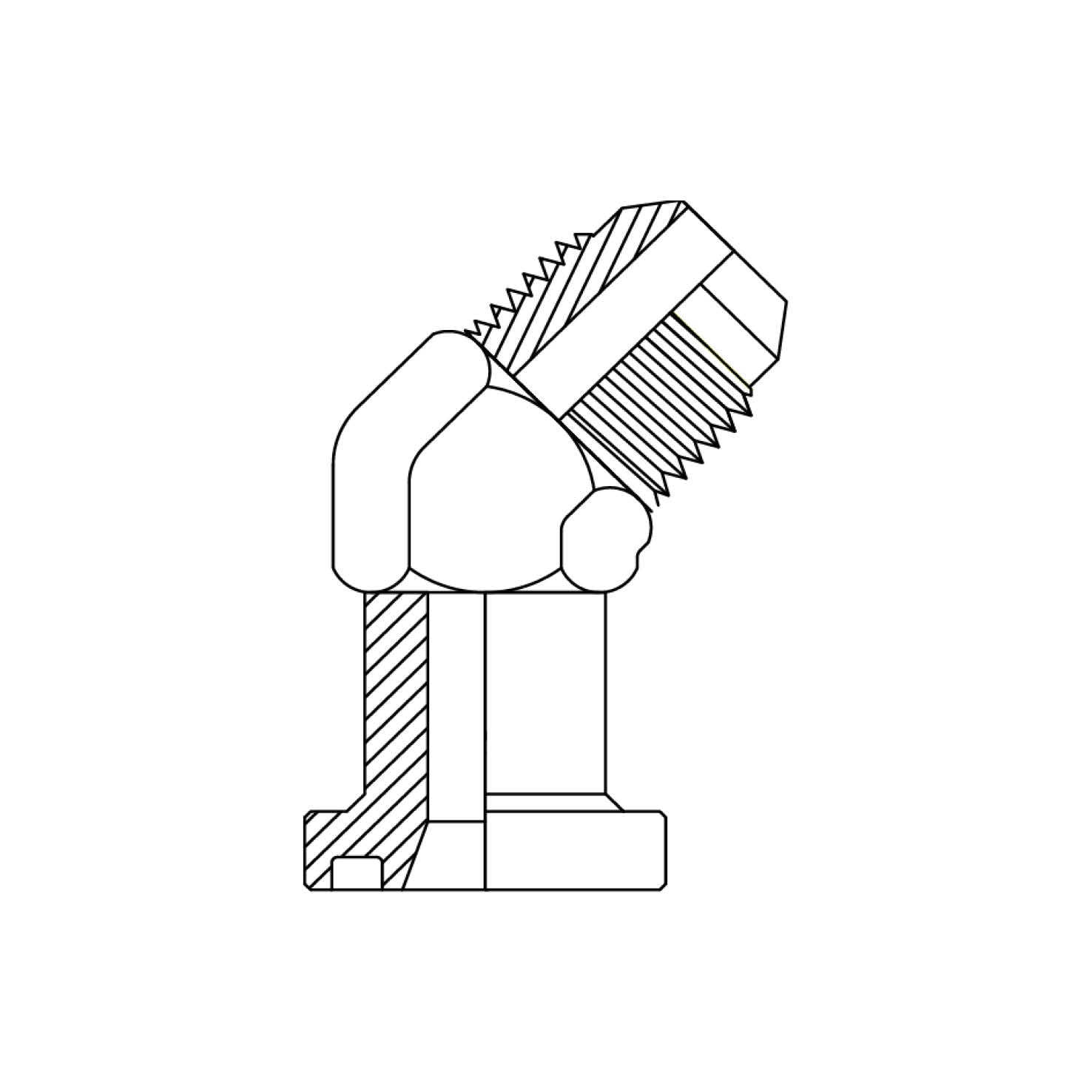

45° Elbow – JIC Male x Code 61 Flange (Compact)
CONNECTIONS:
- End 1: JIC Male – SAE J514, 37° Flare
- End 2: Code 61 Flange – Compact profile
DESCRIPTION:
The 1JFL4C adaptor offers a compact 45° connection from JIC male to Code 61 flange, ideal for applications where space is restricted. The reduced footprint allows hose routing flexibility without compromising on pressure or sealing performance.
COMMON APPLICATIONS:
- Hydraulic systems requiring tighter hose routing or reduced bend radius
- Used in OEM builds, mobile equipment, and high-pressure repairs
SUITS THESE MACHINES:
- Komatsu, CAT, Hitachi, and custom engineered systems

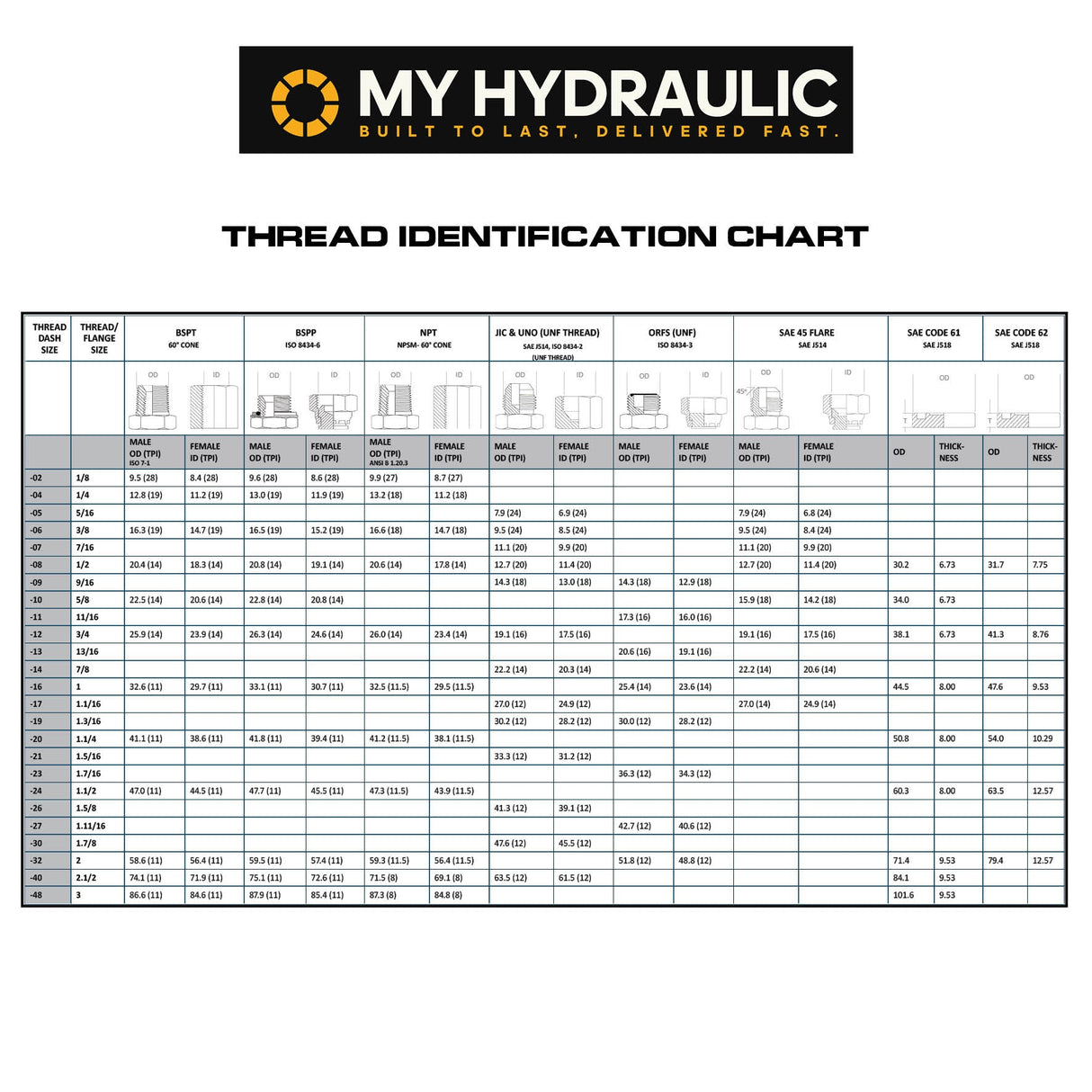

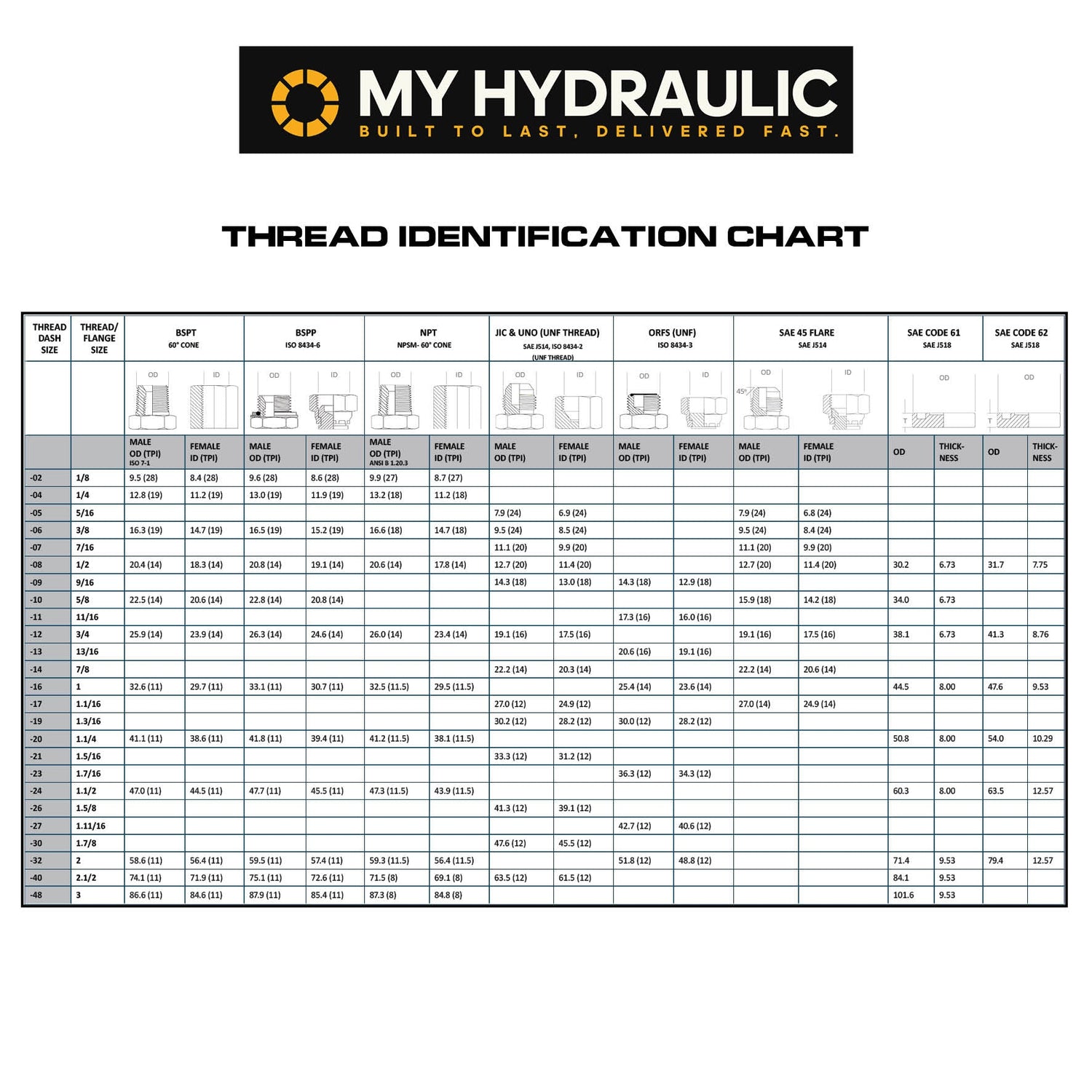

THREAD & SEAL DETAILS:
- JIC: 37° flare (SAE J514)
- Code 61 Flange: SAE J518 – O-ring face seal with compact profile
Working in tight spots? This compact 45° flange adaptor helps improve hose clearance and reduce stress on fittings.
