TYPE:

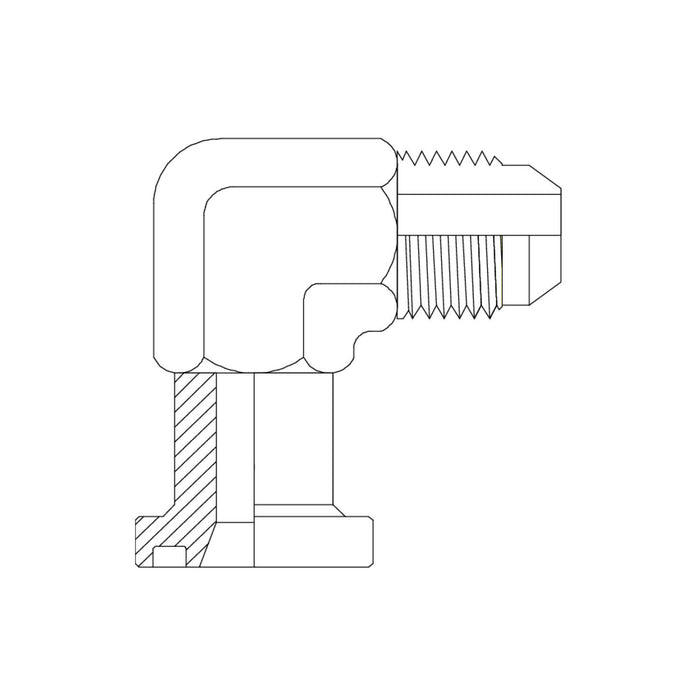

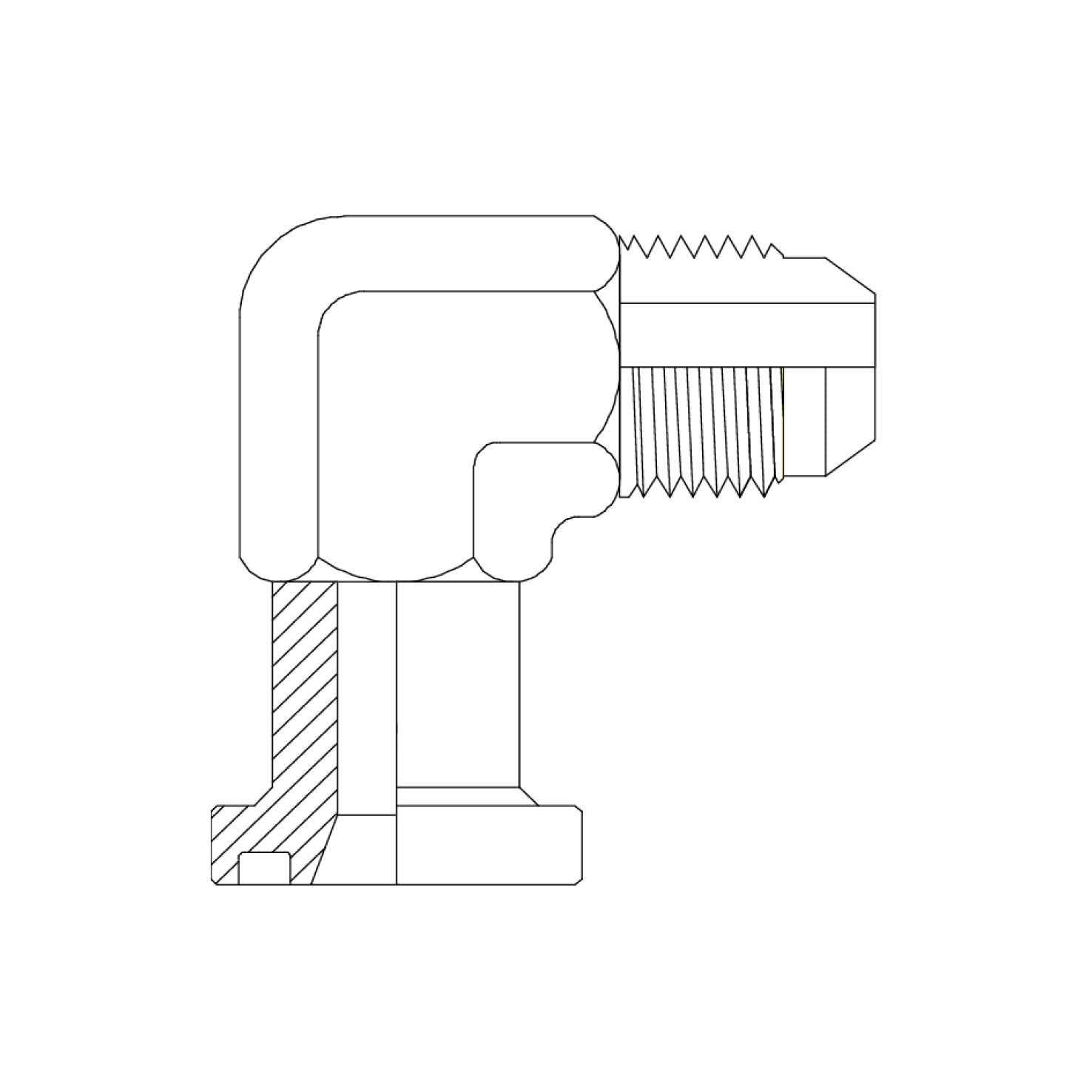

90° Elbow – JIC Male x Code 61 Flange (Compact)
CONNECTIONS:
- End 1: JIC Male – SAE J514, 37° Flare
- End 2: Code 61 Flange – SAE J518 (Compact Profile)
DESCRIPTION:
The 1JFL9C is a compact 90° elbow designed for space-sensitive installations where a JIC hose must be routed into a Code 61 flange port. It offers the same robust sealing and flow characteristics as a full-body fitting, in a smaller footprint.
COMMON APPLICATIONS:
- Hydraulic manifolds, power units, and service vehicles
- OEM compact machine frames and tight line clusters
SUITS THESE MACHINES:
- CAT, Volvo CE, Komatsu, and all SAE Code 61 port systems
THREAD & SEAL DETAILS:
- JIC: SAE J514 – 37° flare
- Code 61: SAE J518 – flange with O-ring groove
Need to squeeze JIC-to-flange into a tight corner? This compact 90° adaptor does the job beautifully.
BUILT TO LAST, DELIVERED FAST.
