TYPE:

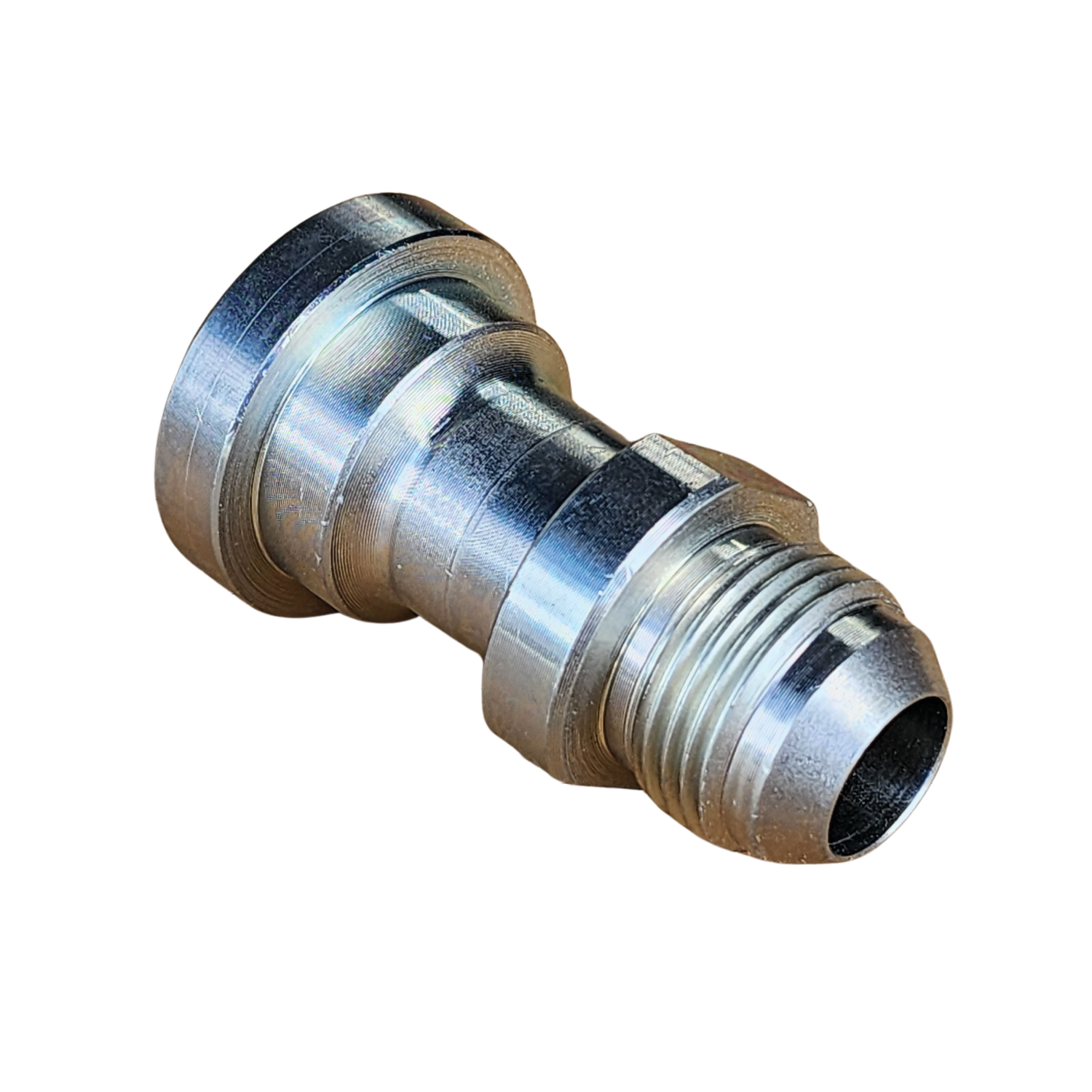

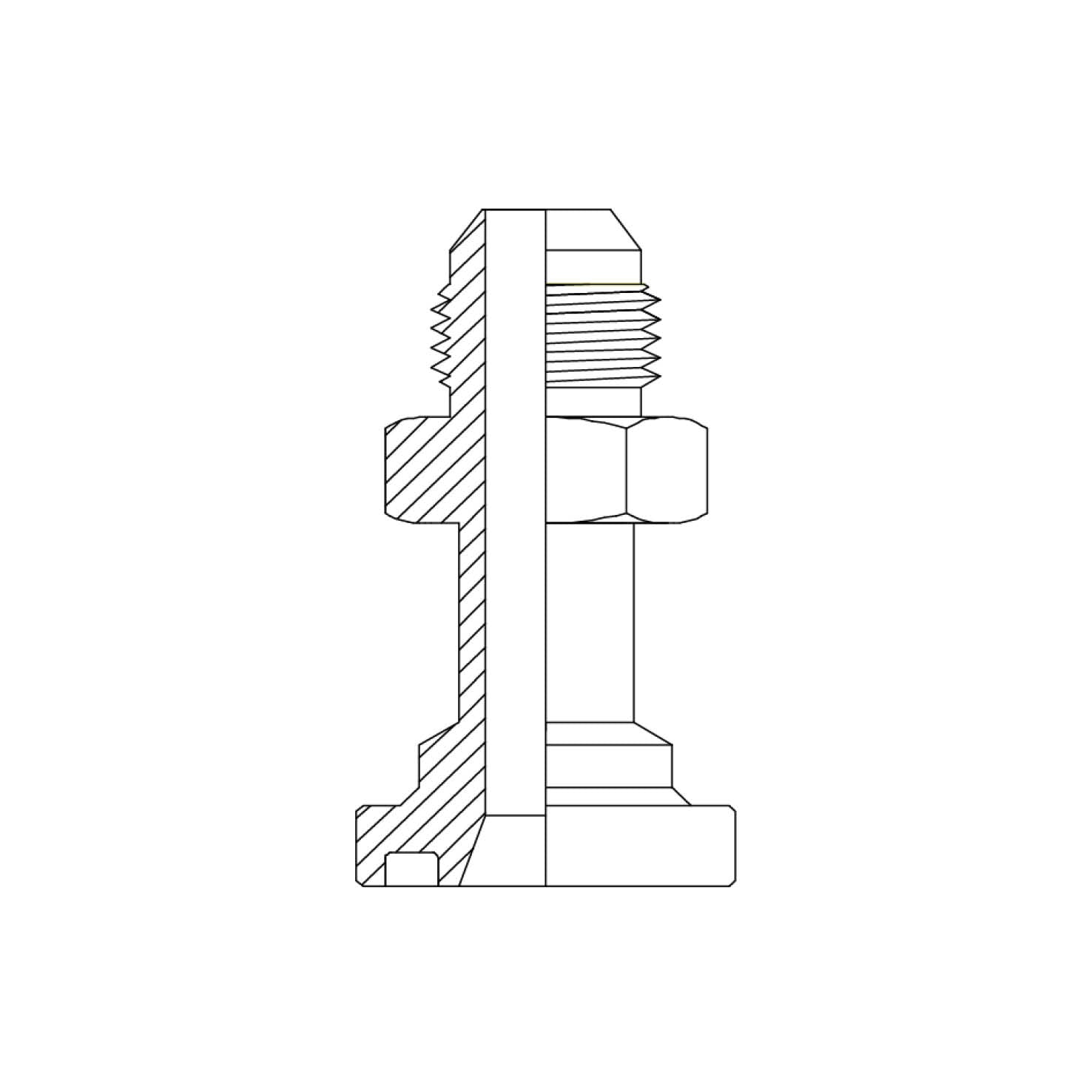

Straight Adaptor – JIC Male x Code 62 Flange
CONNECTIONS:
- End 1: JIC Male – SAE J514, 37° Flare
- End 2: Code 62 Flange – SAE J518 (High Pressure)
DESCRIPTION:
The 1JFLH adaptor allows a secure transition between a JIC Male thread and a Code 62 flange port. Designed for extremely high-pressure hydraulic systems, this fitting combines the proven metal-to-metal seal of JIC with the bolt-on, O-ring face seal of the Code 62 flange system. Common in OEM equipment and large-scale machinery, this adaptor ensures leak-free, high-performance operation under demanding conditions.
COMMON APPLICATIONS:
- Connecting JIC hoses to Code 62 high-pressure flanged components
- Used in mining, civil construction, logging, and industrial hydraulic systems
- Ideal for hydraulic circuits requiring high flow and vibration resistance
SUITS THESE MACHINES:
- Hitachi, Komatsu, CAT, and John Deere heavy machinery
- Hydraulic pumps, valves, and HPU manifolds with Code 62 flange ports

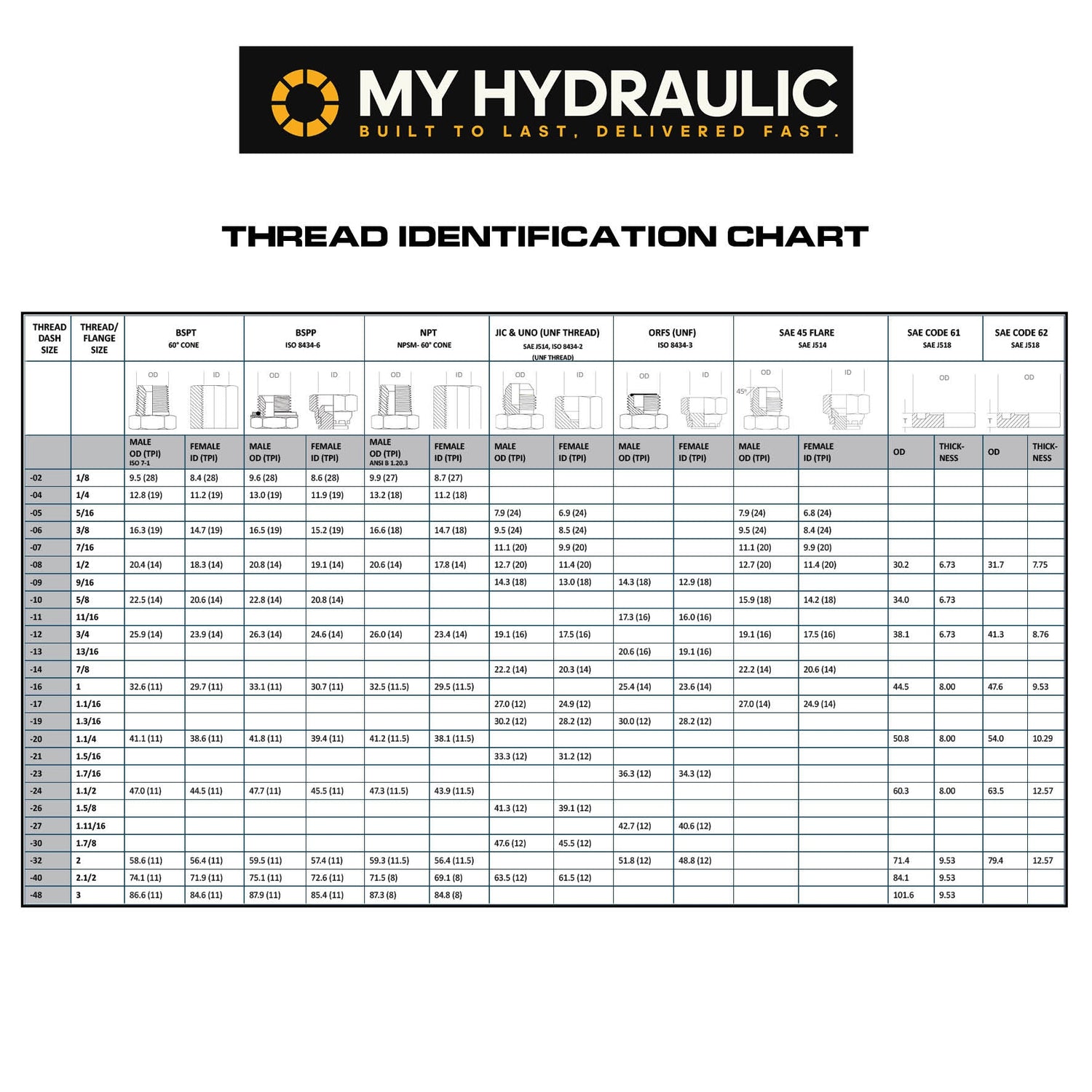

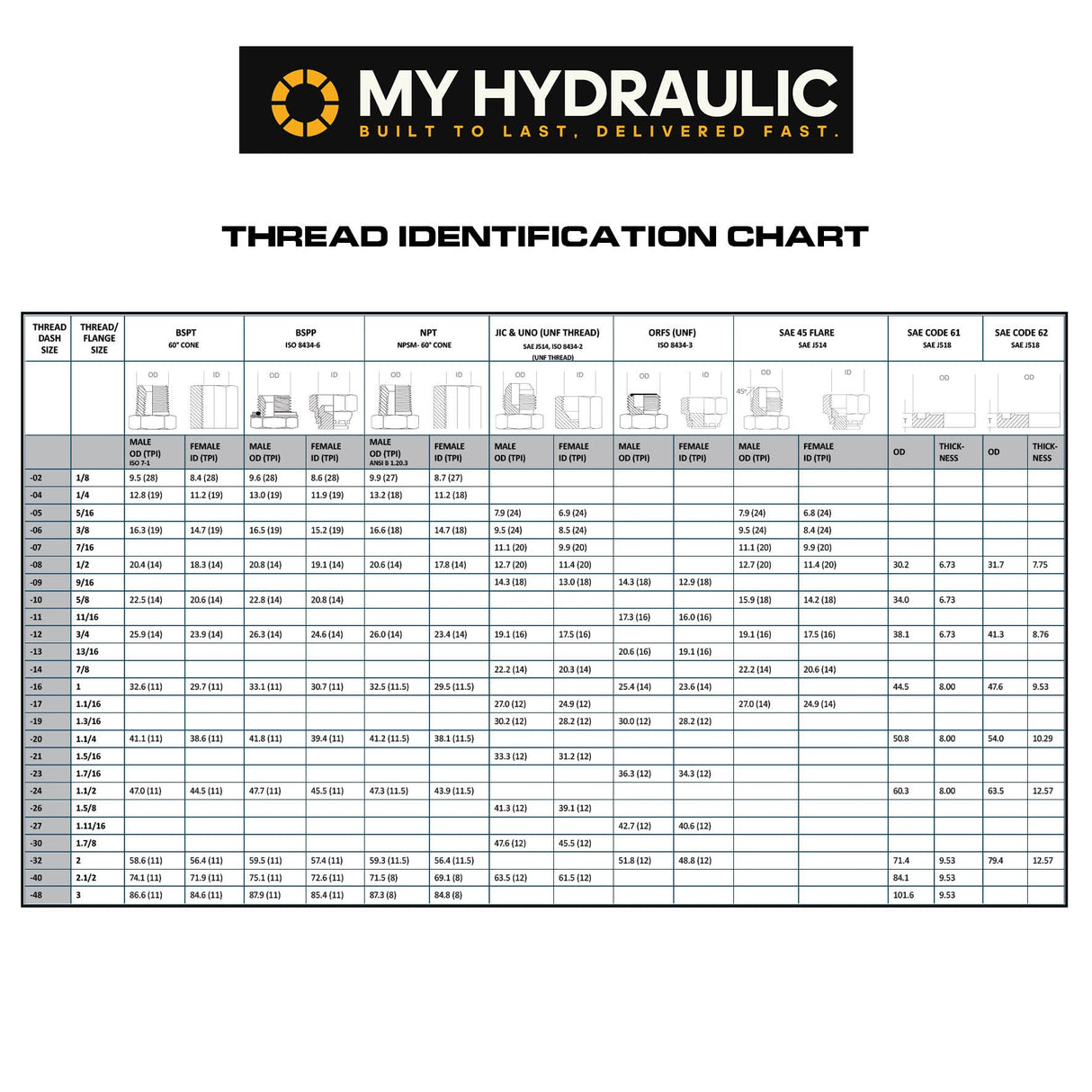

THREAD & SEAL DETAILS:
- JIC: SAE J514 – 37° flare, UNF thread
- Code 62: SAE J518 – High-pressure O-ring face flange with bolt holes
- Note: Always check flange bolt pattern and pressure rating
Upgrading to a Code 62 flange system but still using JIC hoses? Contact our team to confirm sizing and pressure specs — we’ll get you sorted fast.
