Stucchi VD Series Screw-to-Connect Poppet Couplings
Description
Description

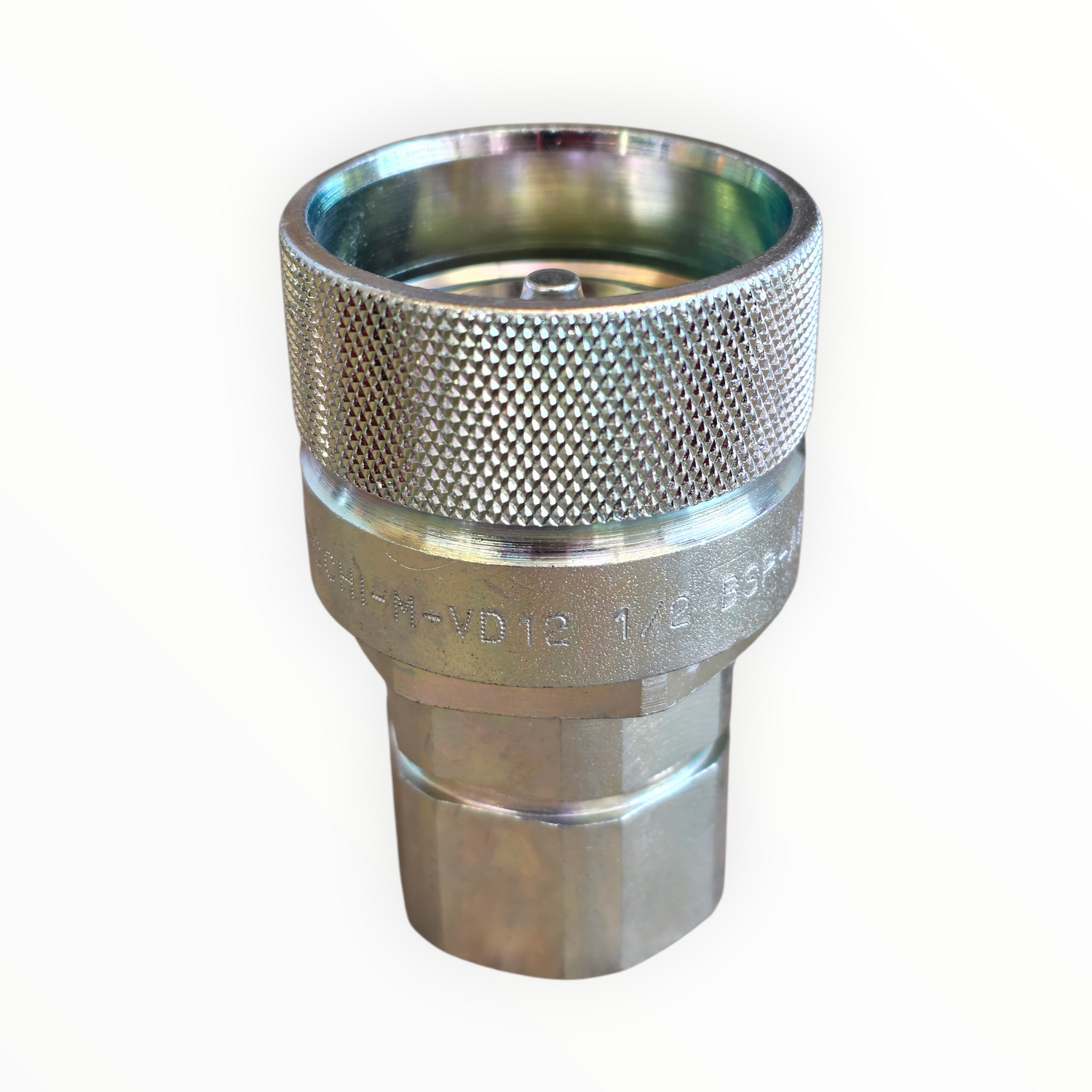

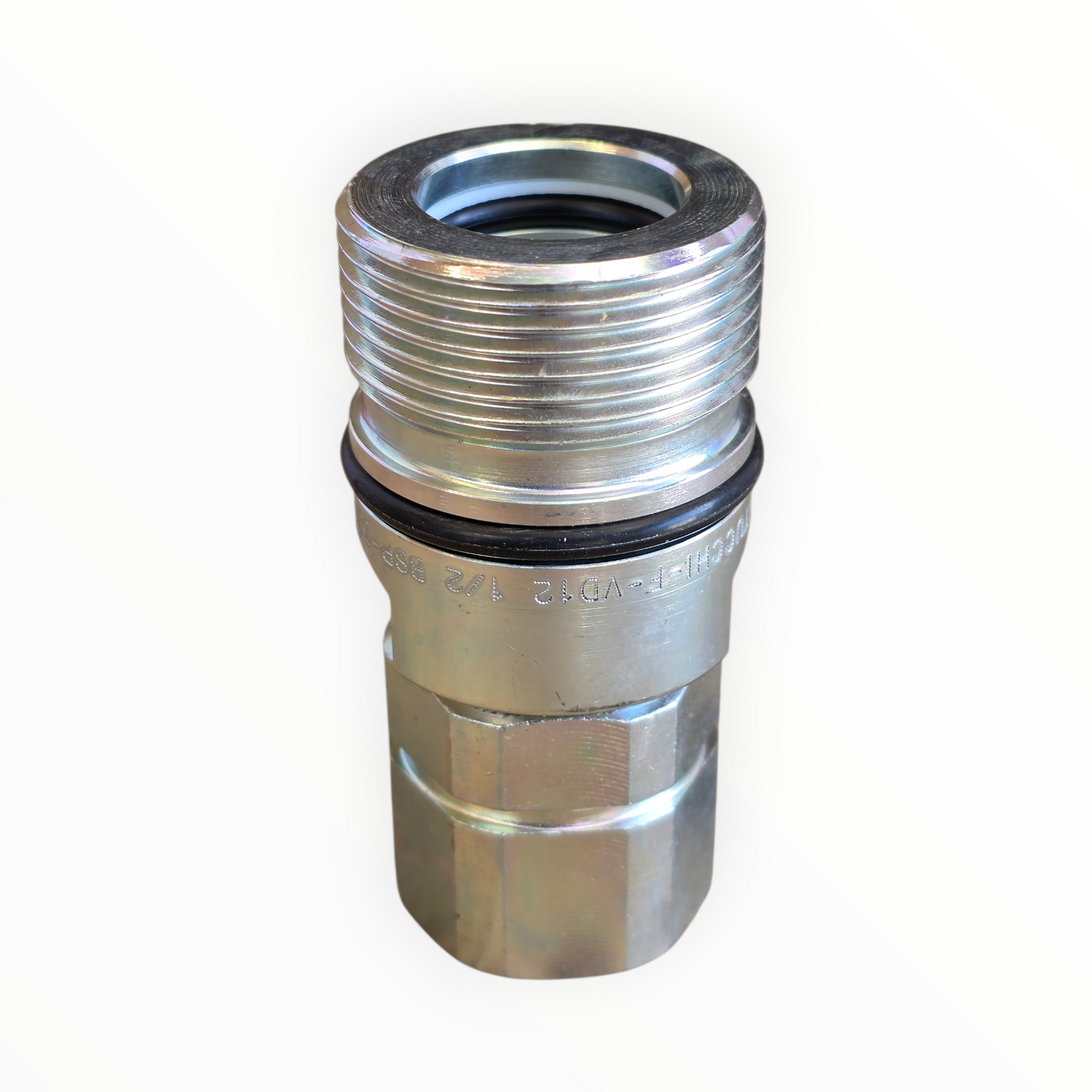

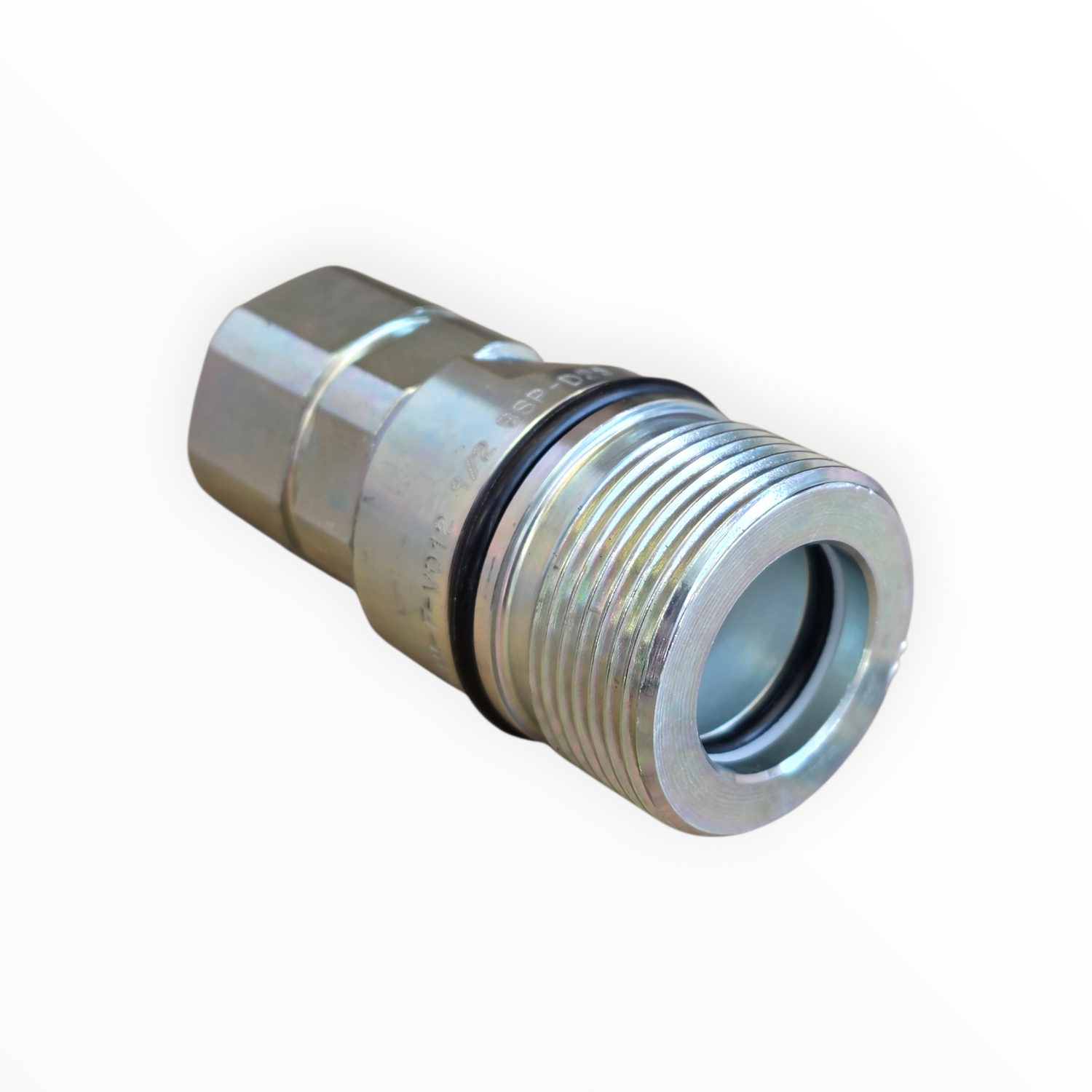

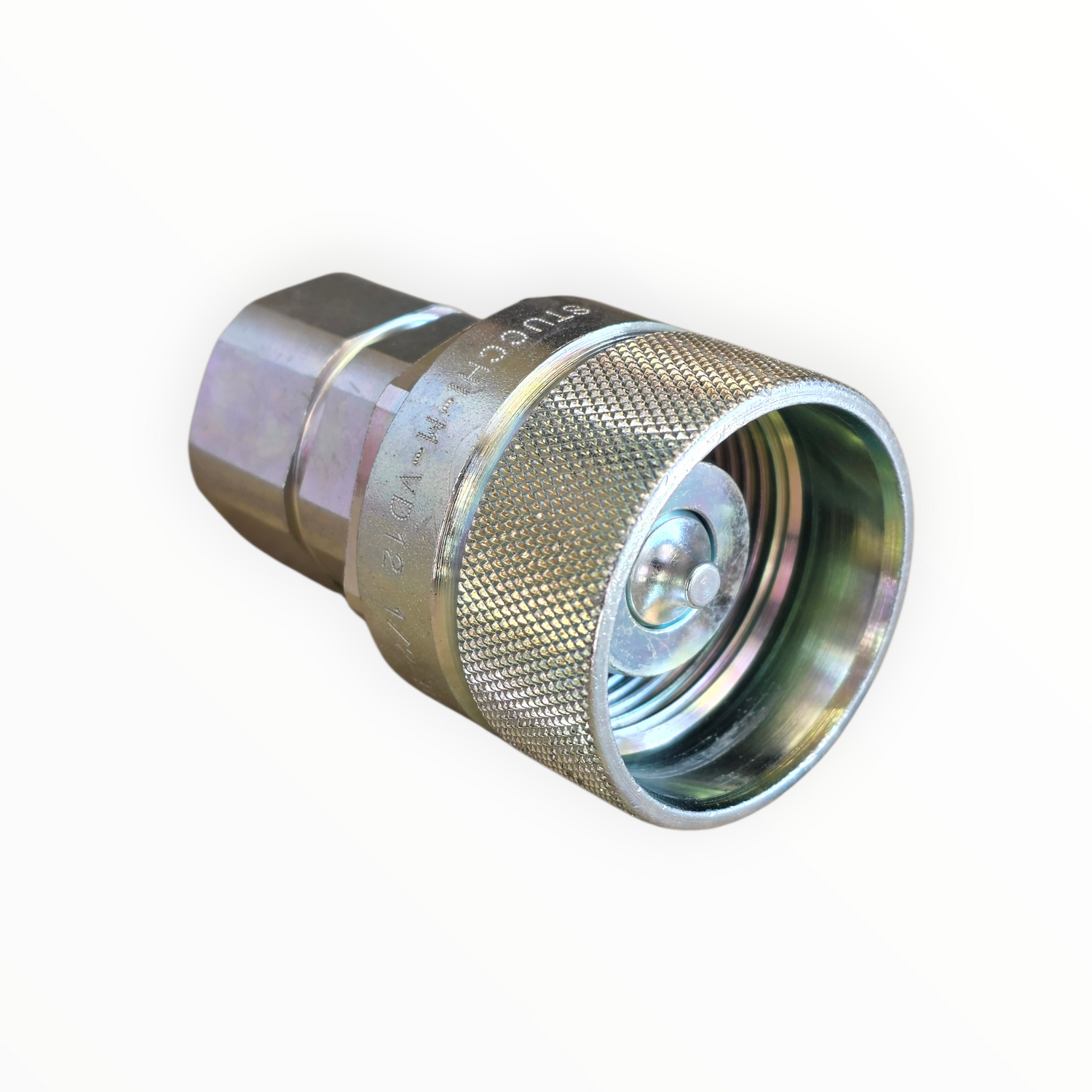

Stucchi VD Series Screw-to-Connect Poppet Couplings
High-pressure performance with secure screw connection.
The Stucchi “VD” Series is a heavy-duty screw-to-connect hydraulic coupling featuring poppet style valving and high-strength carbon steel construction. Designed for demanding hydraulic circuits subject to pressure impulses, the VD Series combines the mechanical security of a threaded connection with the sealing reliability of poppet valving.
Manufactured from high-strength carbon steel with Cr III zinc plating and NBR sealing, the VD Series is interchangeable with ISO 14541 standard couplings and similar products on the market.
Key Specifications
- Interchange Standard: ISO 14541
- Valving Style: Poppet
- Connection System: Screw-to-connect
- Locking Mechanism: Threaded sleeve
- Connection Under Pressure: Allowed (up to 100 bar on one side)
- Material: Carbon Steel
- Treatment: Cr III Zinc Plating
- Seals: Nitrile (NBR)
- Available Threads: BSP, Metric (DIN 3852 / DIN 2353 / ISO 8434-1)
- Available Sizes: 1/4", 3/8", 1/2", 3/4", 1", 1-1/4"
- Operating Pressure: Up to 450 bar
- Flow Rate: Up to 378 L/min
- Temperature Range: -20°C to +100°C
Designed for Demanding Hydraulic Applications
The VD Series adds the resistance of a robust internal design to the security of a screw connection. This makes it particularly suited for hydraulic circuits subject to pressure impulses and heavy-duty operation.
The poppet valve with elastomer sealing ensures maximum sealing performance when disconnected, reducing fluid loss and contamination.
Performance Benefits
- Connection allowed with residual pressure (max 100 bar on one side)
- Poppet valve ensures superior sealing when disconnected
- Internal design reduces turbulence and pressure drop
- High resistance to impulse pressures
- Compact and durable construction
- Modular design allows multiple port configurations
- External O-ring provides visual confirmation of full connection
- Threaded sleeve protects male sealing surface
- Prevents accidental disconnection
- Designed to resist dirt ingress
Thread Configurations Available
Due to its flexible modular design, the VD Series is available in a range of port configurations:
- Metric (DIN 3852)
- Metric Tube (DIN 2353 / ISO 8434-1)
- BSP (DIN 3852)
- Bulkhead (DIN 2353 / ISO 8434-1)
- Other configurations available on request
Applications
- Mobile plant and construction equipment
- Forestry and agricultural machinery
- Industrial hydraulic systems
- High impulse hydraulic circuits
- Heavy-duty attachment connections
Built to handle pressure. Built to last.
