QVV Screw Connect Poppet Valve
Description
Description
PRODUCT TYPE:
Heavy-Duty Screw Connect Poppet Valve Connect Under Pressure
APPLICATION OVERVIEW:
The QVV Screw Connect Poppet Valve is a rugged, general-purpose hydraulic quick coupling designed for extreme performance in demanding conditions. Built from high-strength steel with trivalent plating, this valve allows secure connections under pressure making it the go-to choice for mobile equipment, high-impulse systems, and industrial applications where durability and reliability are critical.
This valve series features BSPP female and male thread configurations and a poppet-style sealing mechanism that ensures minimal leakage, reduced contamination, and strong flow control even during high-pressure surges.
- Connect Under Pressure: Ideal for high-impulse hydraulic circuits
- Screw-Type Connection: Secure thread-to-thread engagement prevents blow-off under load
- Steel Construction: Trivalent plating for corrosion resistance
- Versatile Compatibility: Interchangeable with Faster CVV, Stucchi VD, and DNP PVV3
- Seal Type: Nitrile (Buna-N) for broad fluid compatibility
- Temperature Range: -20°C to +100°C

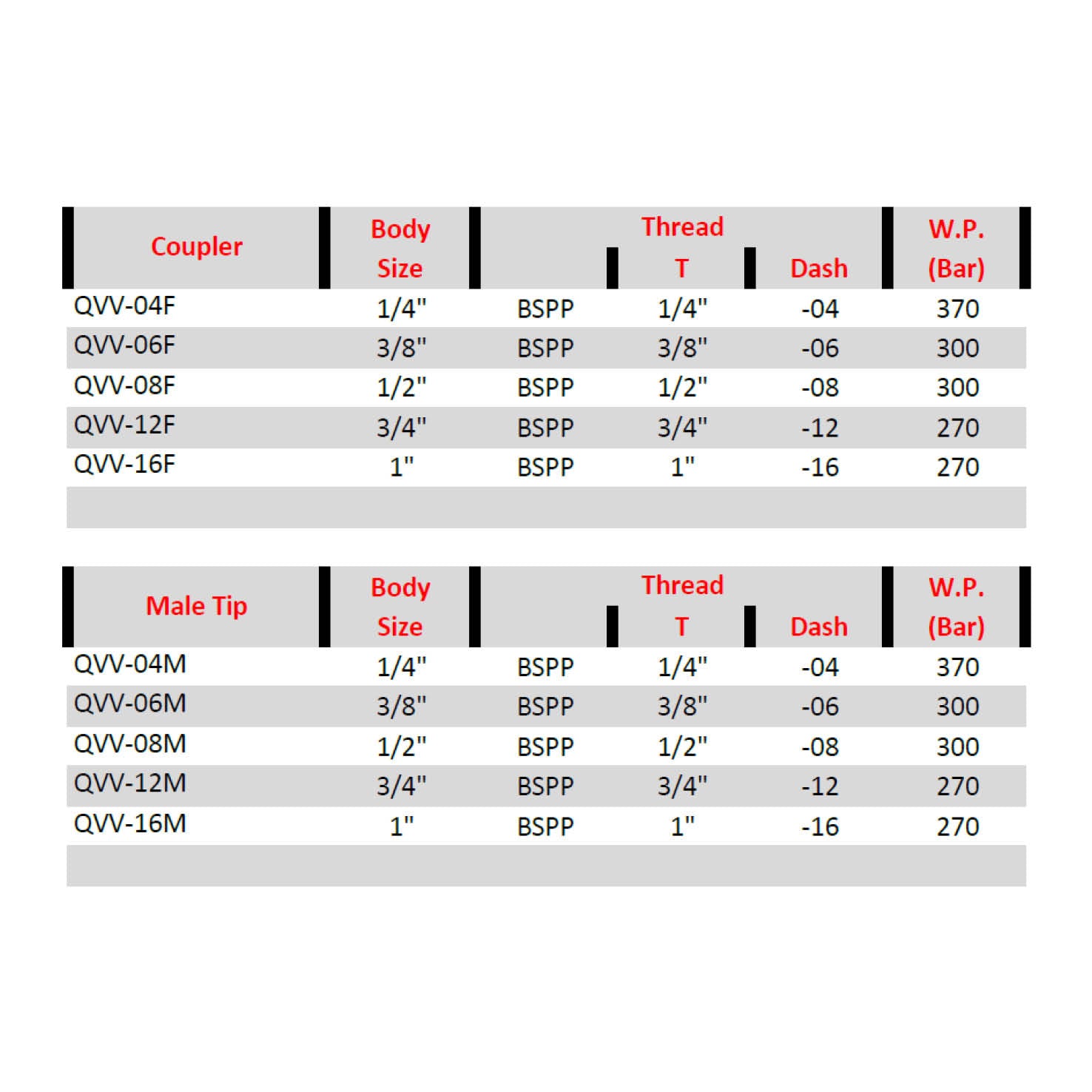

WORKING PRESSURES:
- QVV-04: 1/4" BSPP 370 Bar
- QVV-06: 3/8" BSPP 300 Bar
- QVV-08: 1/2" BSPP 300 Bar
- QVV-12: 3/4" BSPP 270 Bar
- QVV-16: 1" BSPP 270 Bar
TECHNICAL SPECIFICATIONS:
- Valve Type: Poppet
- Material: Steel with trivalent plating
- Seal: Nitrile (Buna N)
- Thread Type: BSPP (British Standard Parallel Pipe)
INTERCHANGEABLE WITH: Faster CVV, Stucchi VD, DNP PVV3
Need help selecting the correct valve size or thread type? Our team can assist with fitting selection, assembly advice, and trade pricing.
