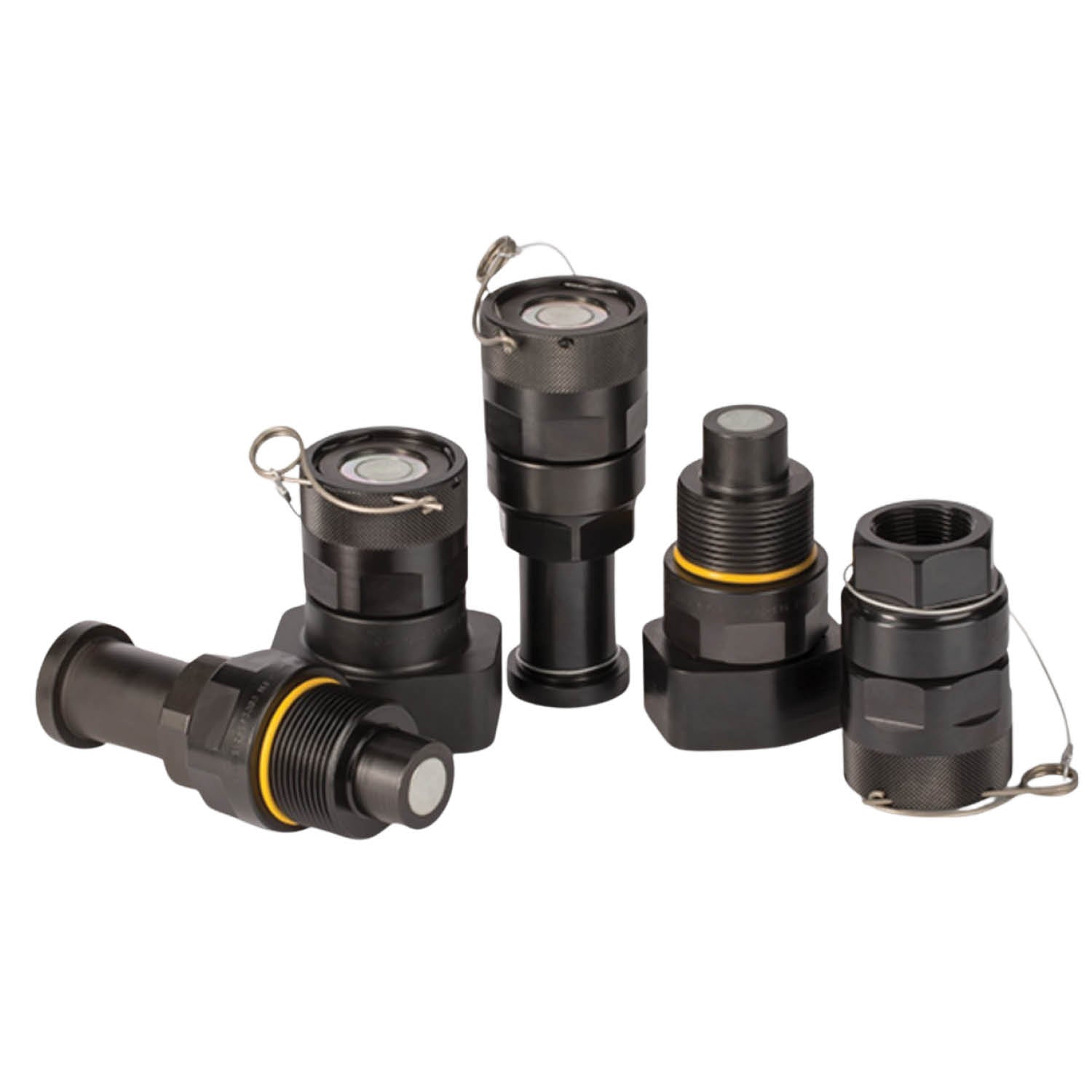

Stucchi VEP-HD Screw Flat Face Hydraulic Coupling Heavy Duty
Why You Should Be Using VEP-HD Couplers
Why You Should Be Using VEP-HD Couplers
If you're running high-impulse hydraulic attachments — whether it's rock breakers, augers, grabs, pulverisers, or rotating grapples — the Stucchi VEP-HD series is a game-changing upgrade. These flat face, screw-to-connect couplers are built to handle extreme backpressure, surge loads, and punishing duty cycles where standard push-to-connect or thread-on fittings simply don’t survive.
VEP-HD couplers deliver a rock-solid, leak-free connection that stays locked in under intense vibration and side load. No brinelling. No accidental disconnections. No struggling to connect under pressure. Whether you’re using hose-to-port threads or standard quick couplers, this is a serious step up in reliability, safety, and performance.
Ideal for demolition, civil construction, quarrying, forestry, and mobile plant, VEP-HD couplers have been tested to over 1 million impulse cycles at 133% working pressure — and they just keep going. From OEMs building hydraulic systems to operators in the field who can't afford downtime, Stucchi is the trusted choice.
Step up to VEP-HD.
No more smashed couplers. No more seized fittings. No more second-guessing your connections — just bulletproof performance, every time.

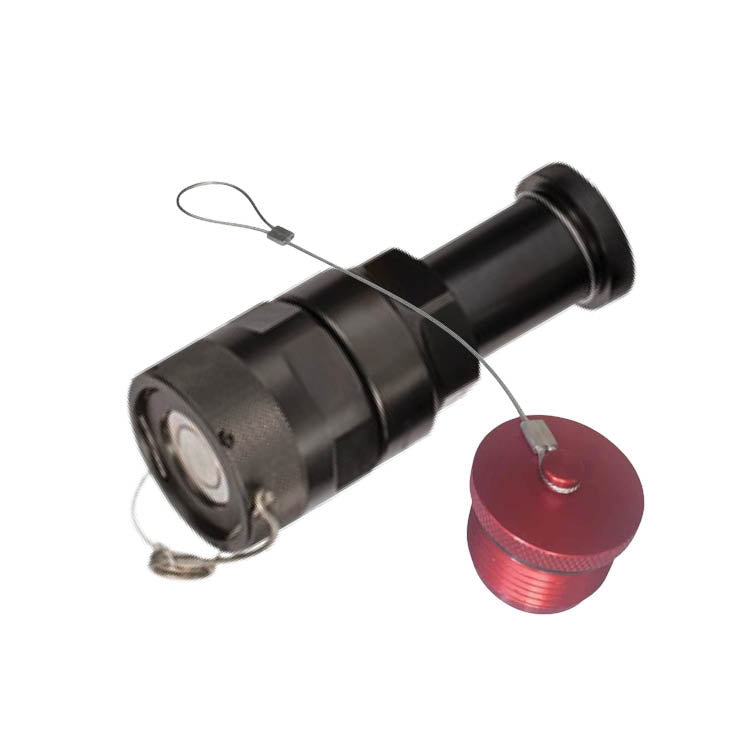

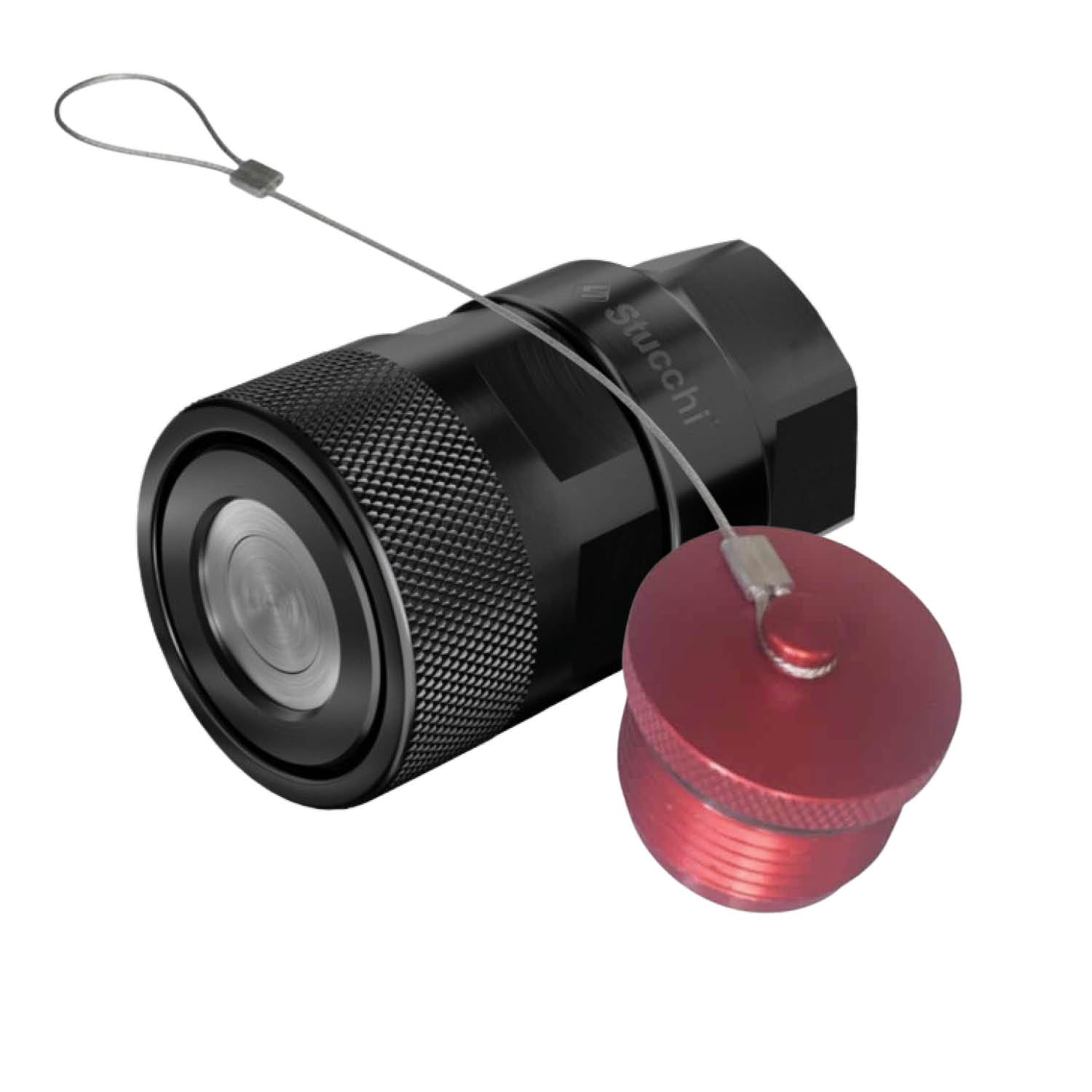

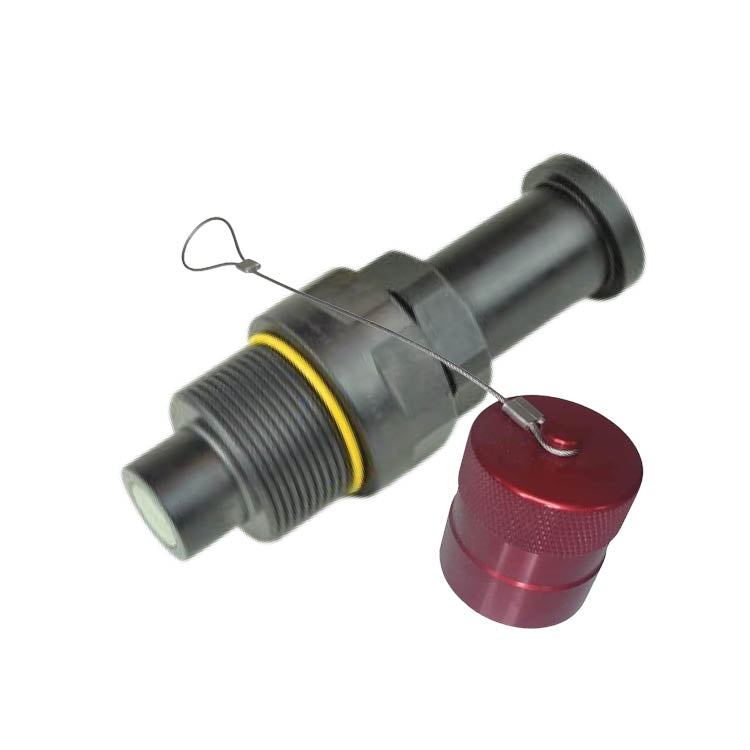

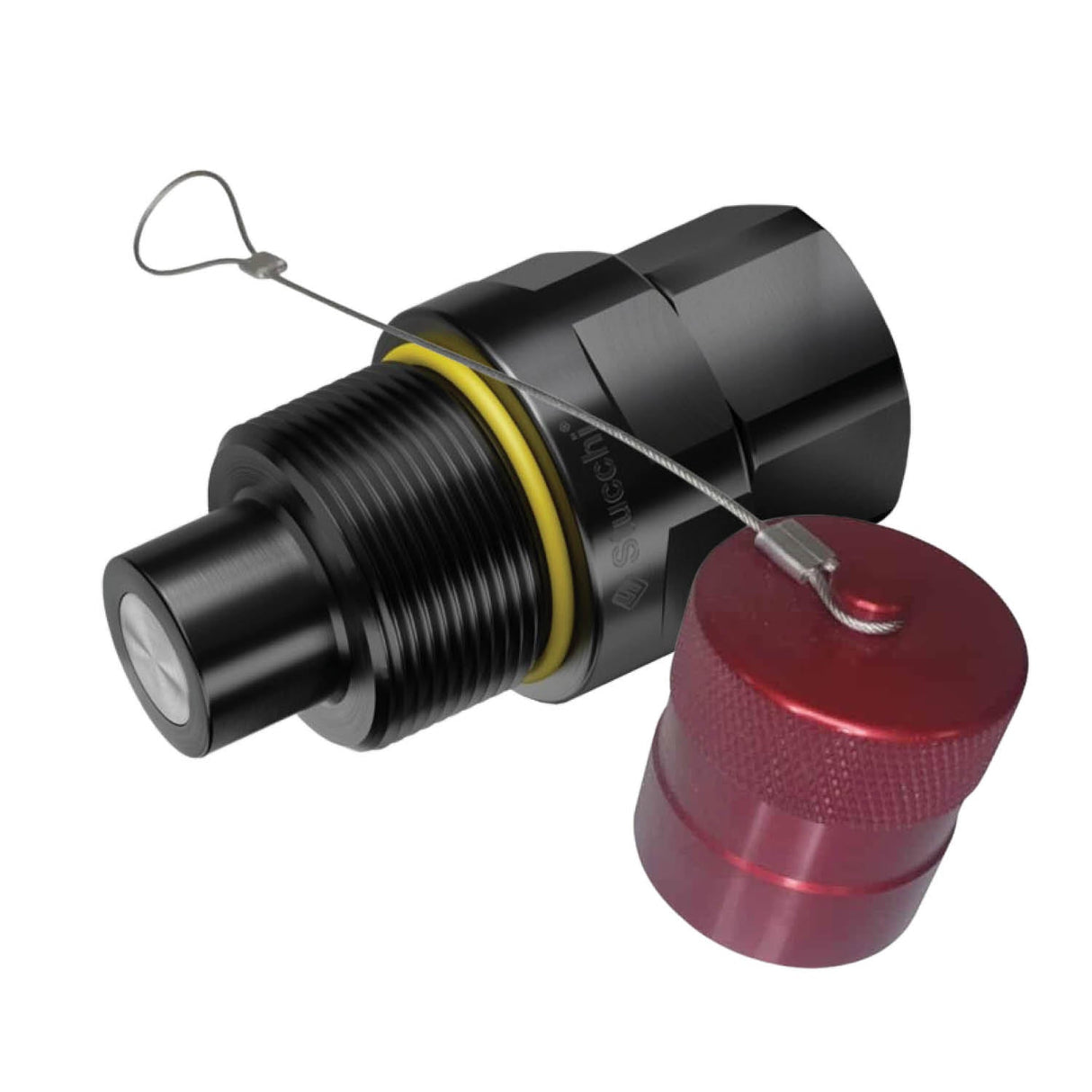

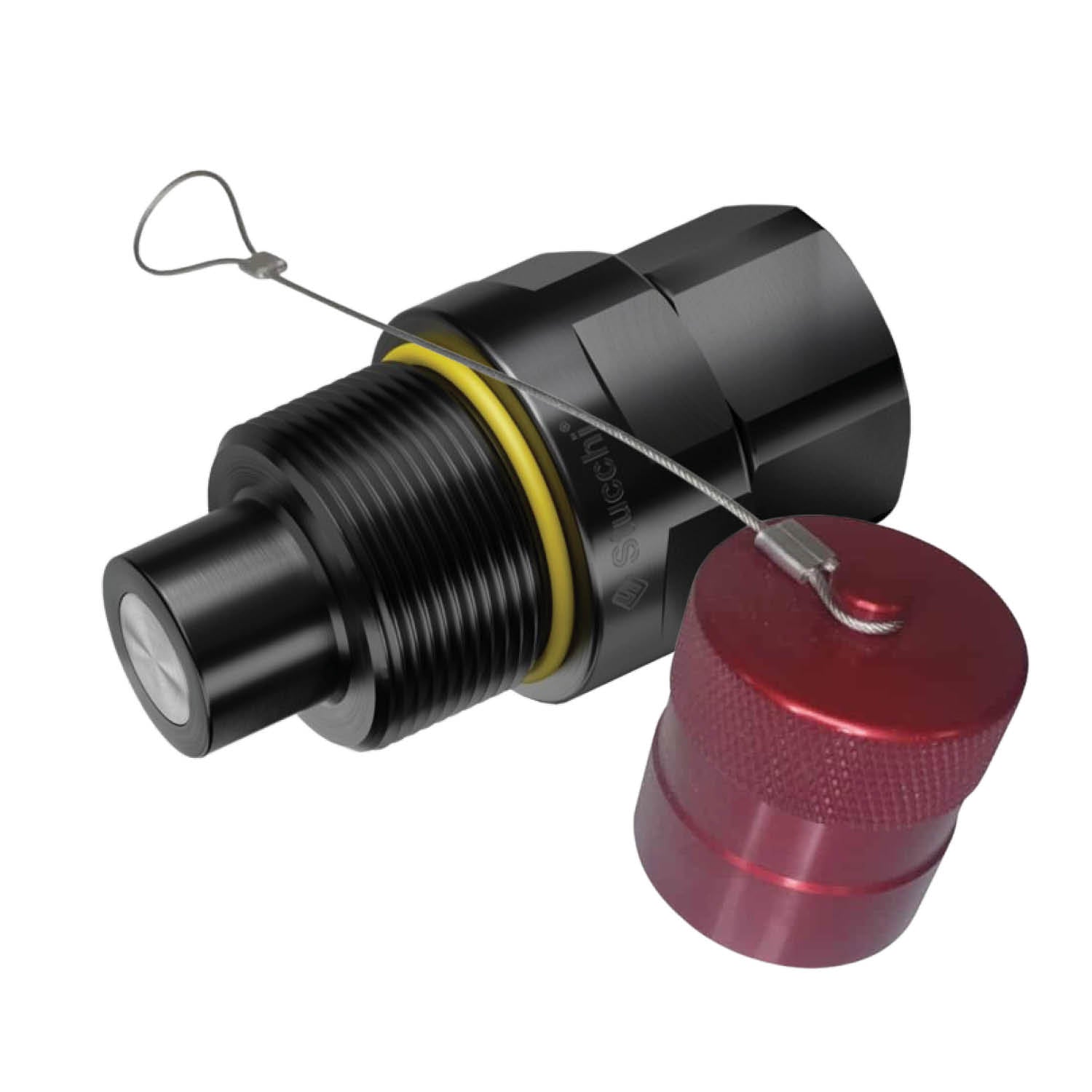

Choose the type, size, and thread style to suit your setup — BSPP, UNO (O-Ring), NPT, or Code 62 Flange. Don’t forget to add protective caps/plugs to keep your gear clean and damage-free.

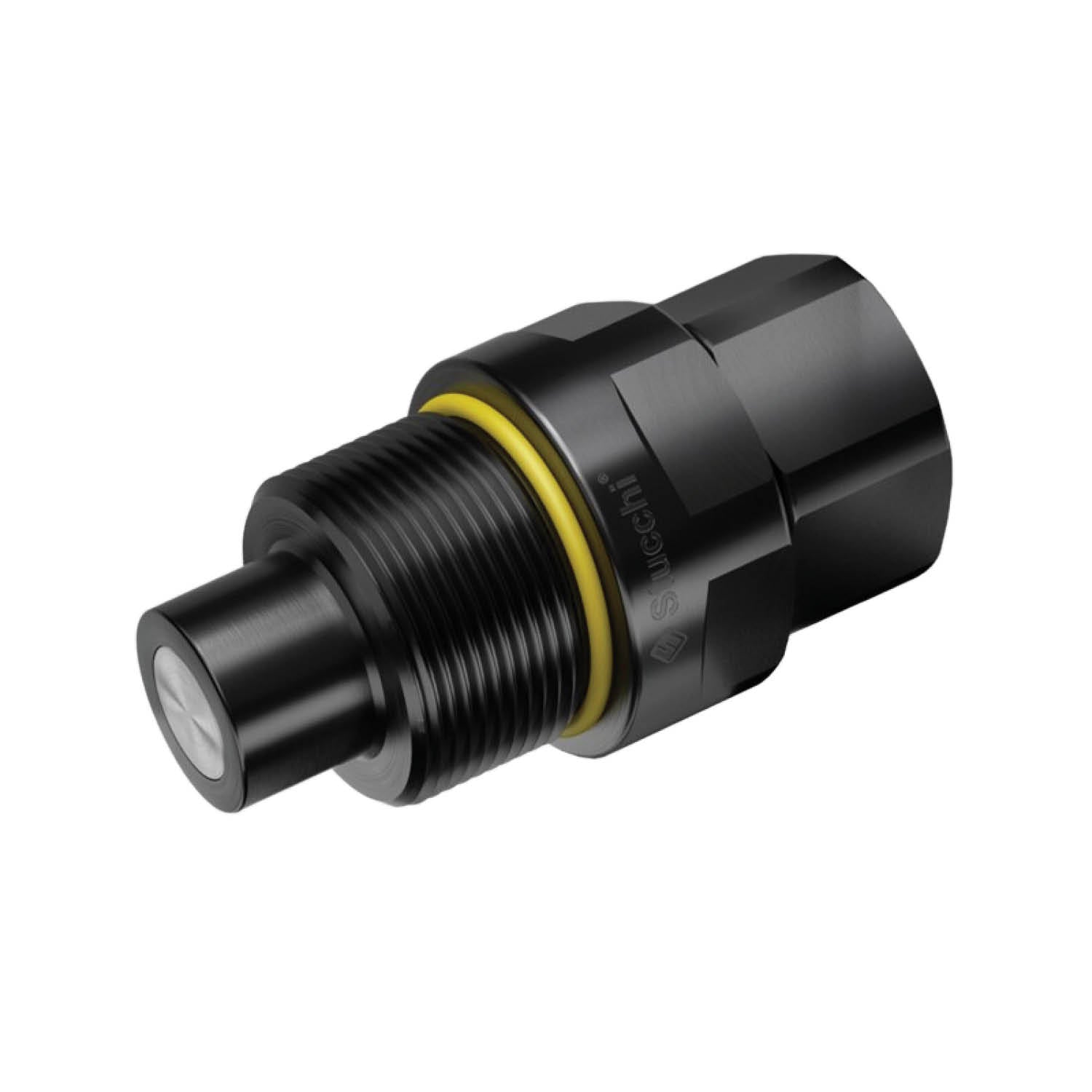

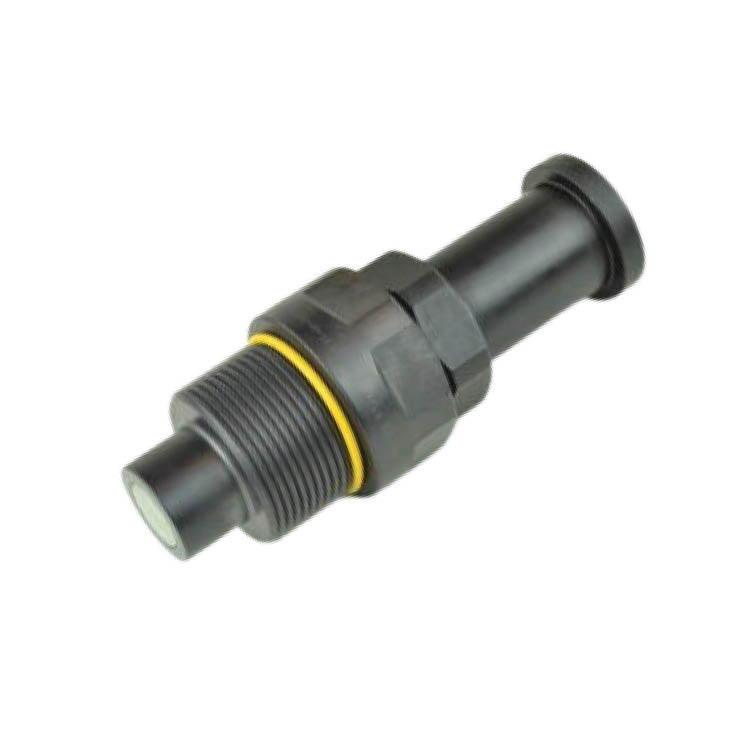

Stucchi VEP-HD Screw Flat Face Hydraulic Coupling Heavy Duty - Male Adaptor / 5/8" Body x 3/4" BSPP / No .
Couldn't load pickup availability
Warranty
Warranty
We pass on full manufacturer warranties for all products — minimum 12 months. For hose assemblies built by Tasmanian Hose Solutions, we offer a 2-year workmanship warranty (excluding normal wear and tear, misuse, or incorrect selection of hose, fittings or application). Contact us if you need support — we stand behind what we build.
Delivery and Shipping
Delivery and Shipping
We ship Australia-wide using a mix of Road Express and Premium Express services, depending on the size and weight of your order.
Smaller items often ship via StarTrack Premium Satchels (3kg & 5kg), which typically arrive within 1–2 business days to most metro areas. Larger or heavier items will ship via Road Express, with delivery generally taking 3–7 business days, and up to 10 days in remote regions.
Stucchi VEP-HD Screw Flat Face Hydraulic Coupling Heavy Duty
Why You'll Like It
Description
Description
WHAT IS IT:

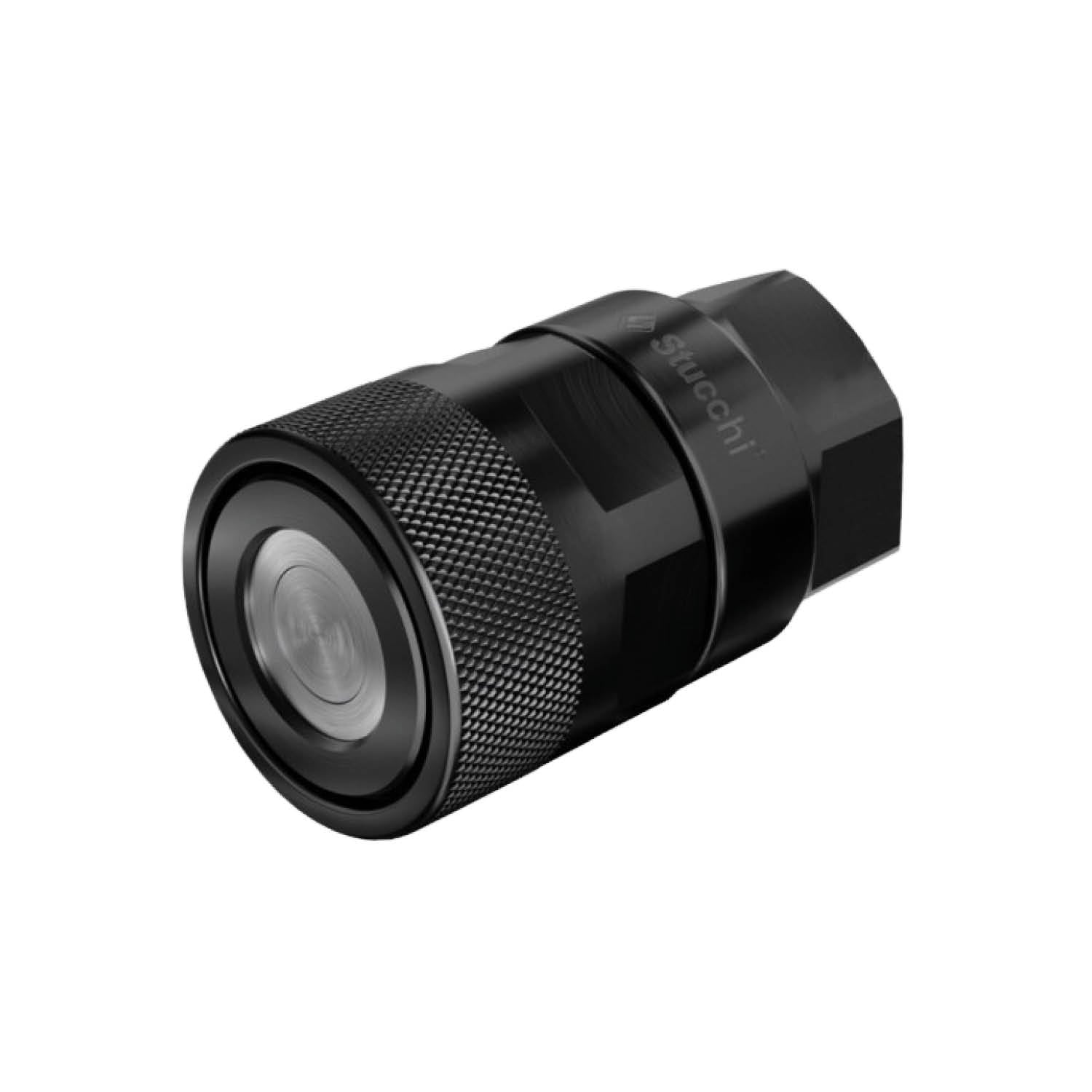

The Stucchi VEP-HD is a heavy-duty screw-to-connect flat face quick coupling, designed to excel in high-pressure, high-impulse hydraulic applications. Engineered from high-resistance carbon steel and tested to 1,000,000 impulses, this coupling delivers unmatched performance in mobile equipment, mining, drilling, and rock-breaking systems. The triple valve system allows connection under residual pressure while virtually eliminating fluid loss and contamination.
WHY YOU'LL LIKE IT:
- Handles extreme impulse pressure up to 550 bar operating pressure
- Screw connect with safety lock won't disconnect under vibration or load
- Flat face connection easy to clean, minimal spillage, reduces contamination risk
- Connect under residual pressure both male and female sides
- Compatible with VEP, VEP-HD, and HDL variants for modular configurations
- Ultra-reliable for high-frequency disconnects, even in dirty, high-stress environments
CONSTRUCTION:
- Body: Carbon steel with QPQ nitriding surface treatment
- Seals: NBR (Nitrile), options available upon request
- Valve Style: Flat face with triple valve system
- Connection: Screw together with anti-loosening safety sleeve (HDL option)

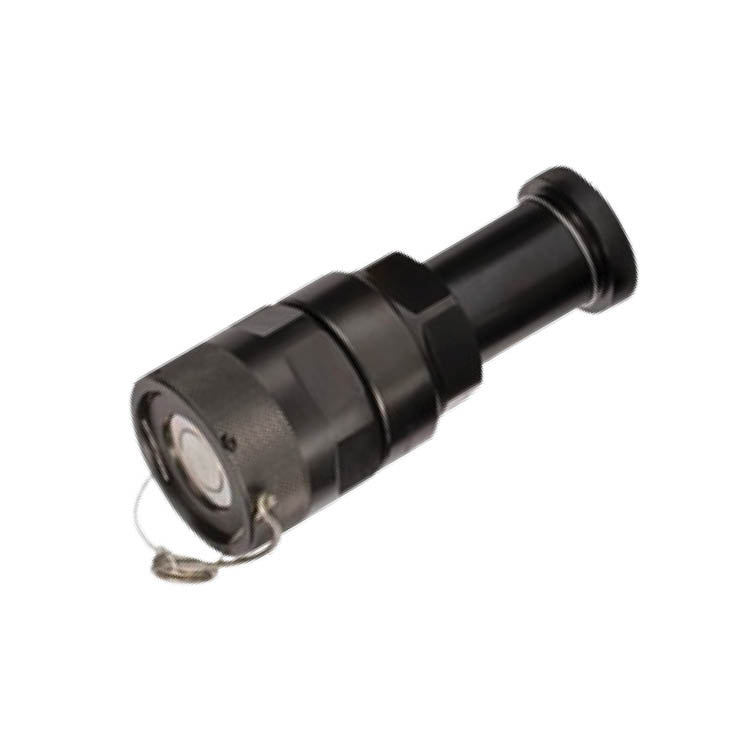

- Threads Available: BSP, NPT, Metric, SAE, and Code 62 flange

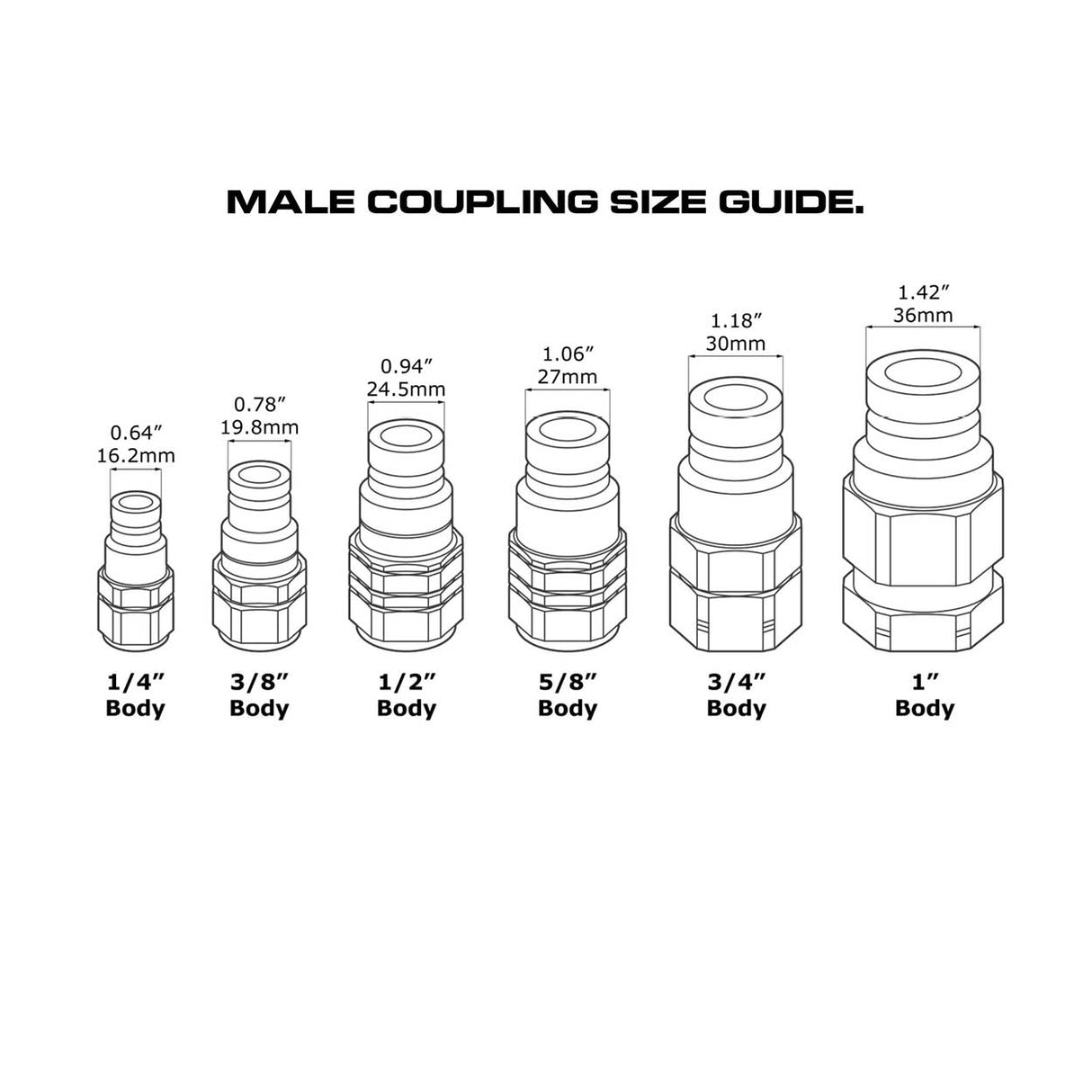

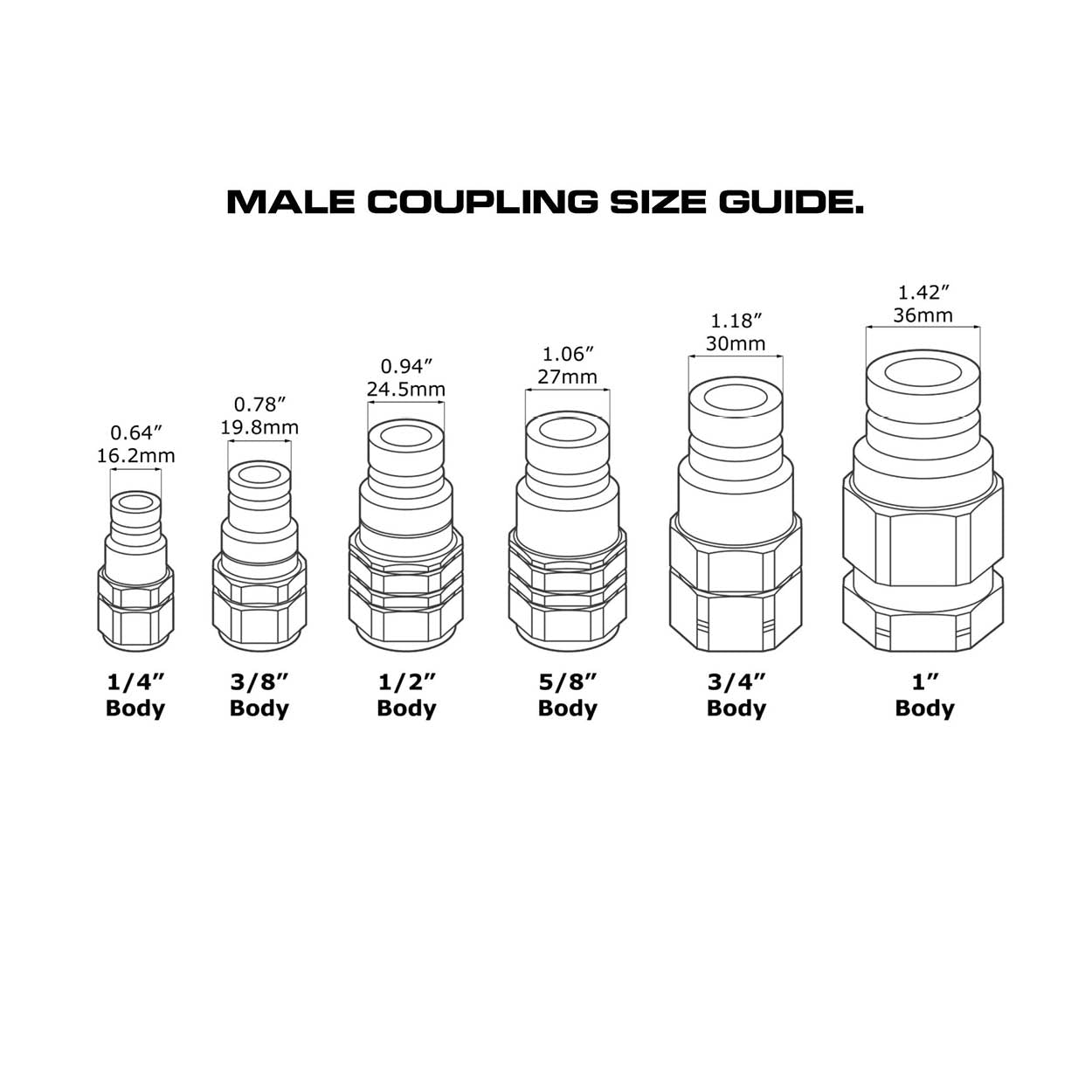

- Sizes: 5/8", 3/4", 1", 1-1/2"
- Operating Temp: -20°C to +100°C
FITTINGS & COMPATIBILITY:
The VEP-HD series is fully compatible with existing Stucchi VEP male and female components. Female HDL versions can be used with standard VEP-HD male couplings (remove external O-ring if required). Pair with Insta-Lock„¢ crimped hose ends and protective caps for best performance in mobile hydraulic environments.
WHERE TO USE IT:
This is the premium choice for high-demand hydraulic systems requiring secure, leak-free coupling under pressure €” such as rock breakers, augers, drilling rigs, forestry attachments, high-flow circuits, and mobile construction equipment. Ideal for operators upgrading from threaded hose ends to quick-connect options without sacrificing pressure integrity or performance.
Need help choosing the right size or thread? Contact us for expert help or custom hose kit pairing.
BUILT TO LAST. DELIVERED FAST.
