5BO - BSPP MALE X UNO FIXED FEMALE
Description
Description

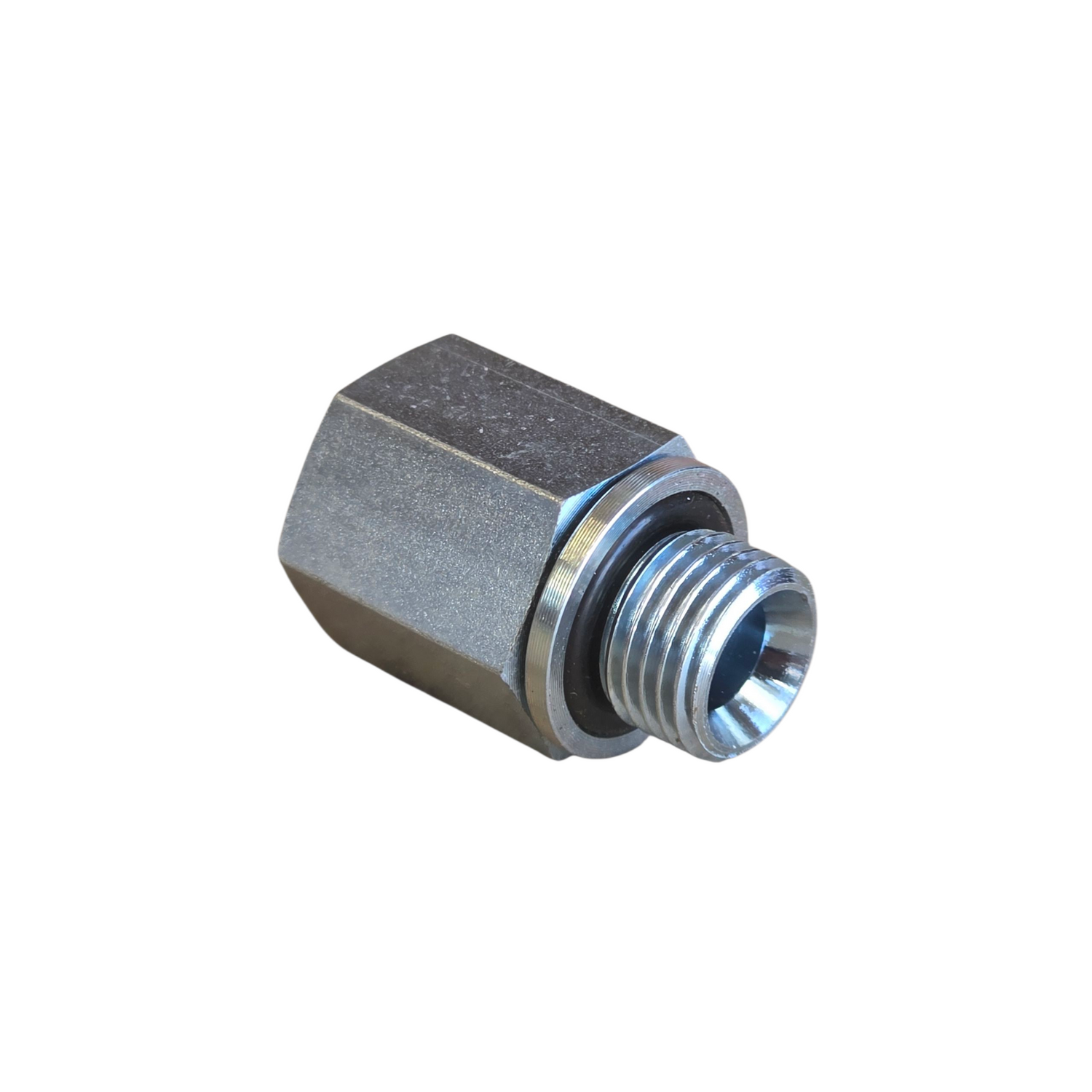

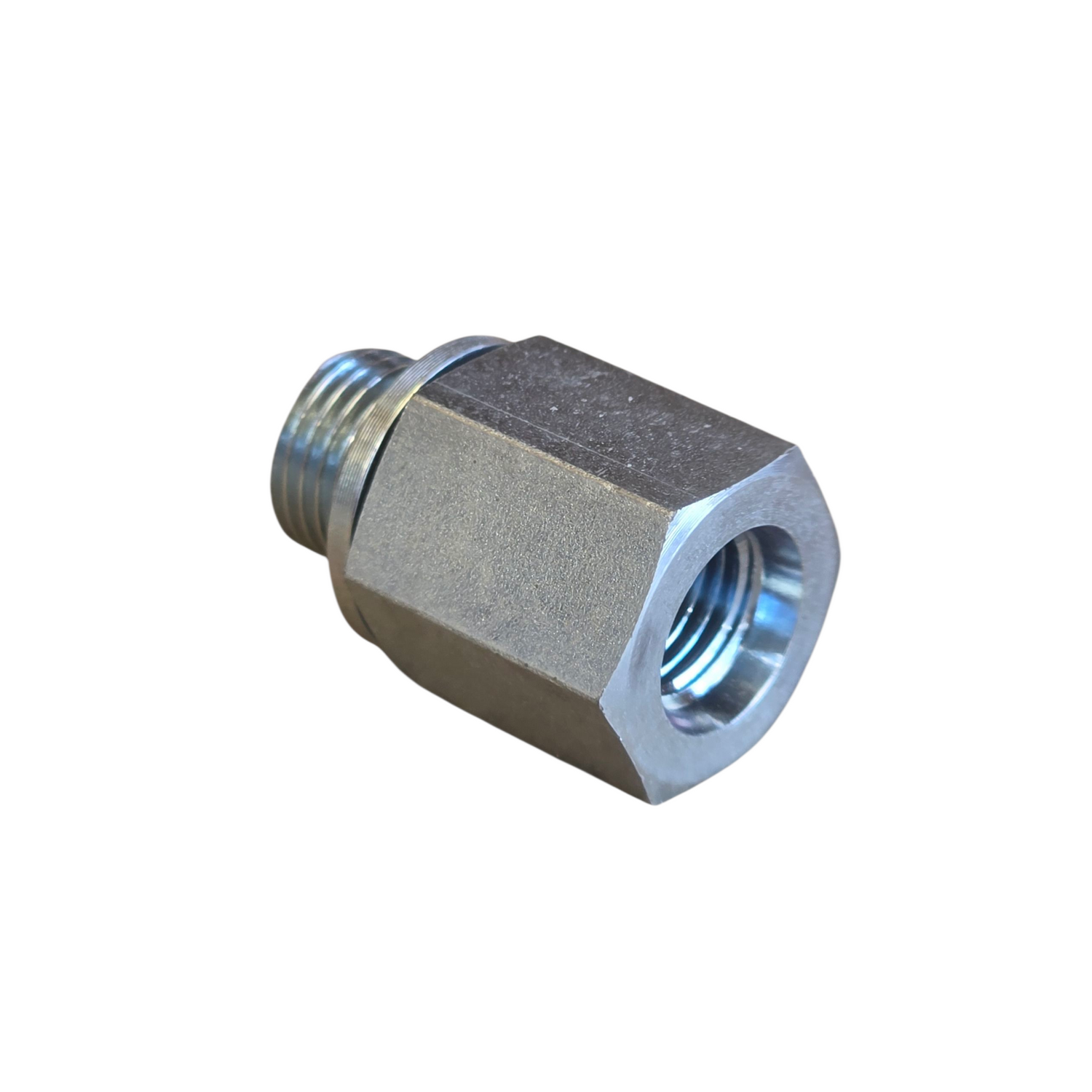

5BO — BSPP Male × UNO Fixed Female Adaptor
Type
BSPP Male × UNO Fixed Female Adaptor
Connections
| End 1 |
BSPP Male (British Standard Pipe Parallel, BS EN ISO 228-1 / ISO 1179) Seals with a bonded washer (Dowty) against a flat port face. |
| End 2 |
UNO Fixed Female (Unified National O-Ring, SAE J514 straight-thread swivel) Mates to a UN/UNF male with O-ring; seal is on the male O-ring, not the threads. |
Description
This adaptor links British parallel BSPP ports to American straight-thread O-ring connections. The BSPP male end seats with a bonded seal on the port face, while the UNO fixed female swivel connects to a UN/UNF male featuring an O-ring. Ideal for joining international hydraulic components without compromising sealing integrity, especially in retrofit and service environments.
Thread Explanations
- BSPP (British Standard Pipe Parallel, ISO 228-1 / ISO 1179): Straight thread that does not seal on the threads. Requires a bonded washer under the hex to seal against a flat-faced port. Common on UK/EU equipment, manifolds, valves, and cylinders.
- UNO Fixed Female (SAE J514, Unified National O-Ring): Straight UN/UNF swivel thread that seals on the male O-ring. Provides reliable, repeatable sealing under vibration and thermal cycling; widely used on American-spec hydraulics and imported machinery.
Common Applications
- Connecting BSPP ports to US straight-thread O-ring male fittings
- Retrofitting imported machinery to local hose & fitting standards
- Workshop and field repairs where mixed standards exist
- Service trucks bridging BSPP equipment to UN/UNF O-ring components
Commonly Found On
Case Construction, John Deere (US-built), Bobcat, Terex, Parker, Caterpillar (selected models), Ingersoll Rand, plus European/UK hydraulic systems using BSPP ports interfacing with UN/UNF O-ring fittings.
Need help matching threads? We’ll confirm sizes, sealing method, and compatibility so your system goes together first time. Contact us for assistance or wholesale pricing.
