Macnaught ADTFM Digital Diesel Flow Meter – 1" BSP | 10–150 LPM
Description
Description
Compact digital fuel metering for diesel transfer, gravity feed and inline applications.

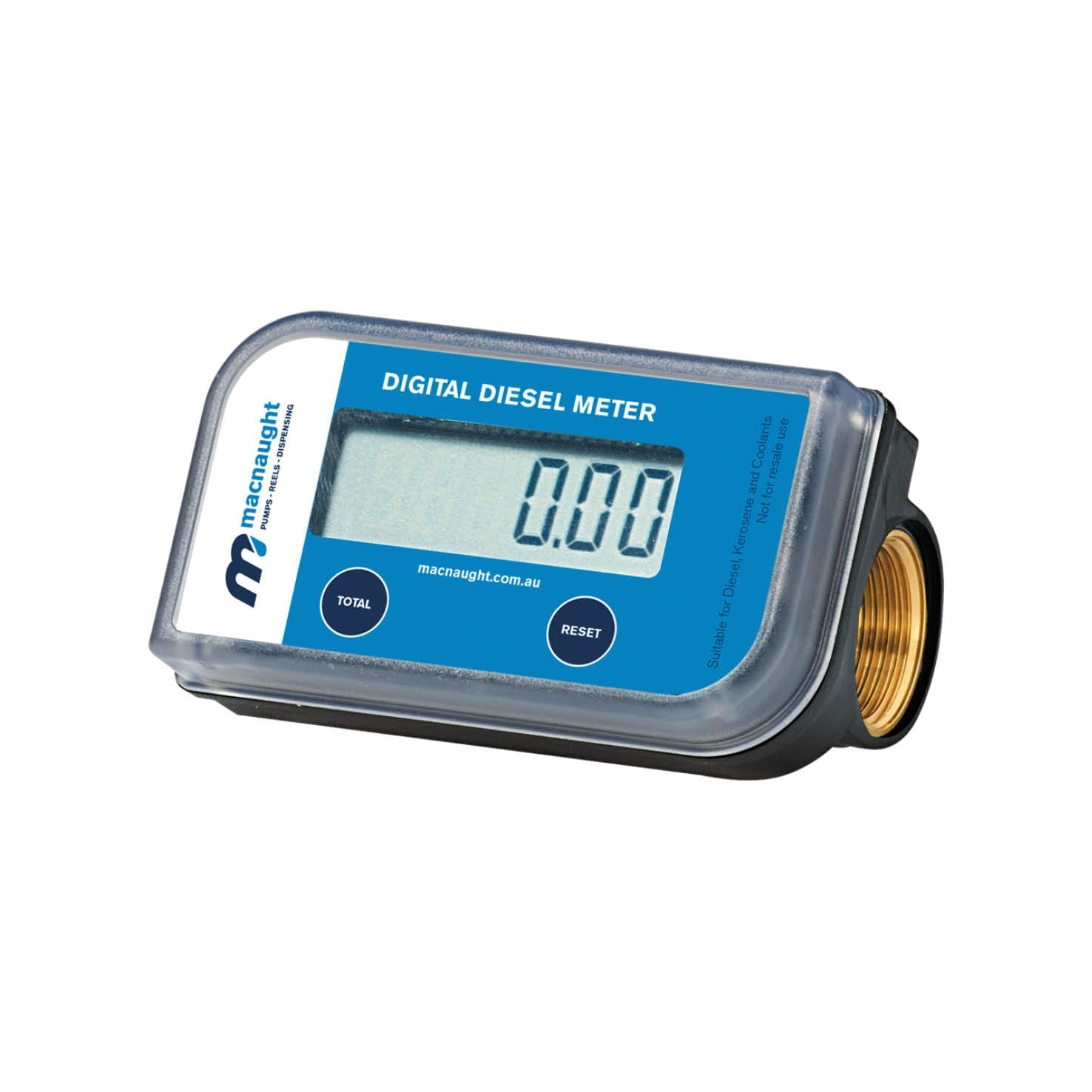

The Macnaught ADTFM Digital Diesel Flow Meter provides a compact and lightweight solution for measuring diesel fuel transfer in inline and gravity-feed systems.
Featuring a digital turbine measuring system, the ADTFM operates across a 10–150 L/min flow range and uses 1" BSP inlet and outlet connections, making it well suited to fuel transfer tanks, pumps and dispensing systems.
The meter can be field calibrated for accuracy of ±0.5% and is ideally suited for installation inline with an automatic fuel nozzle. Its electronic register can also be rotated through 180°, allowing the display orientation to be adjusted to suit the installation.
Key Features
- Digital turbine fuel flow meter
- 10–150 L/min flow range
- 1" BSP inlet and outlet
- Maximum working pressure: 50 PSI (3.5 bar)
- Suitable for diesel, kerosene and coolants
- 6-digit resettable total
- 6-digit non-resettable total
- Display/register rotates through 180°
- Field calibration capability
- Accuracy of ±0.5% when field calibrated
- Compact and lightweight construction
- Suitable for inline and gravity-feed applications
Digital Fuel Management Functions
The ADTFM's electronic display incorporates additional functions designed to make monitoring diesel usage easier:
- Real-Time Flow Rate – displays the current fuel flow rate
- Dispensing History – view the last five volumes dispensed
- Available Stock – enter available fuel volume to assist with stock monitoring
- Low-Level Alarm – provides an alert to help prevent unexpectedly running out of fuel
Technical Specifications
| Specification | Details |
|---|---|
| Product Code | ADTFM |
| Meter Type | Digital Turbine Meter |
| Flow Range | 10–150 L/min |
| Connections | 1" BSP |
| Maximum Working Pressure | 50 PSI / 3.5 bar |
| Suitable Fluids | Diesel, kerosene & coolants |
| Reset Total | 6 digit |
| Non-Reset Total | 6 digit |
| Display Rotation | 180° |
| Calibration | Field calibratable |
| Accuracy | ±0.5% when field calibrated |
