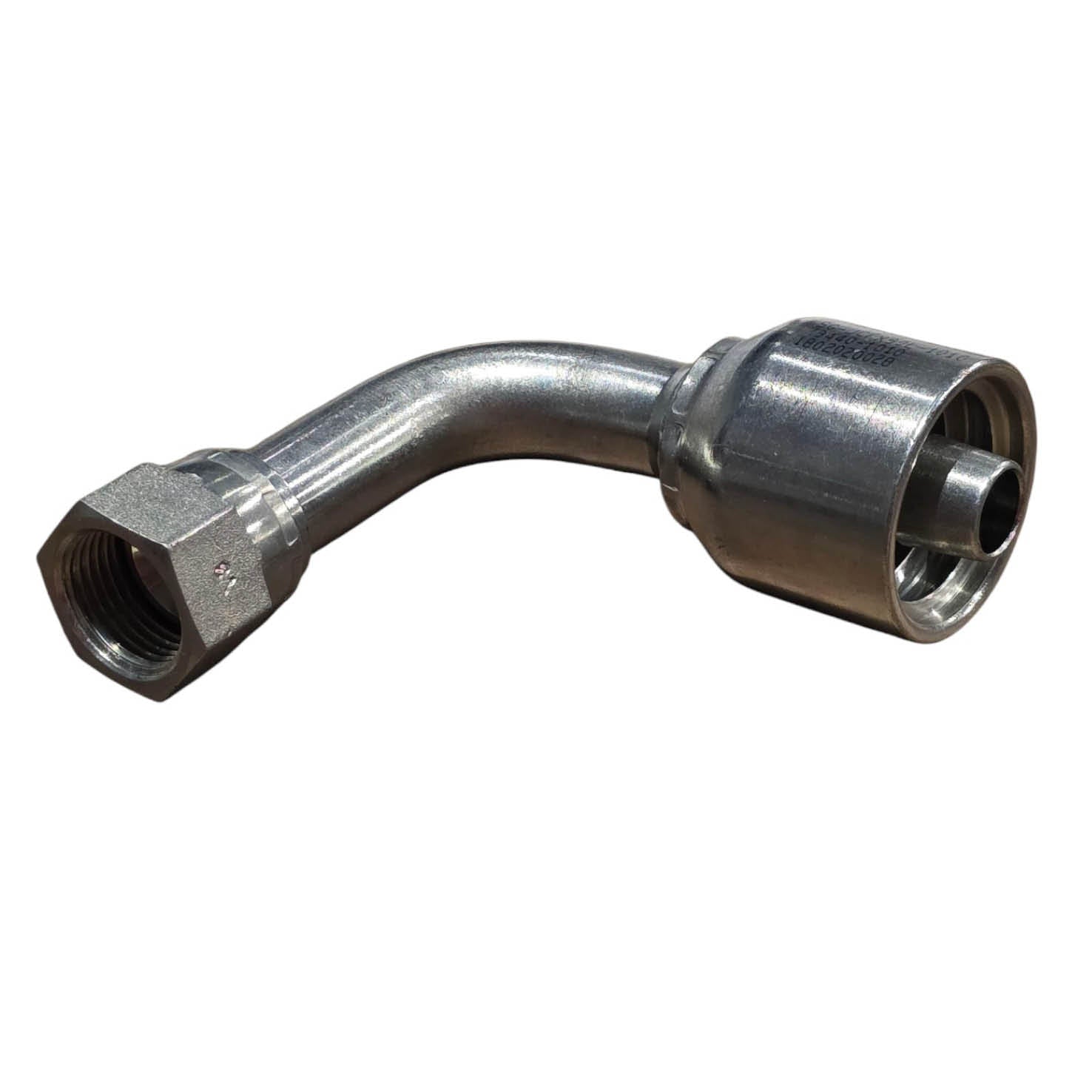

SG-JCFX90L JIC Female Swivel 90° Long Drop Spiral Coupling

SIZE

Product variants

$43.16

Tax included Shipping calculated at checkout.

📏 Find Your Thread Size

Not sure if it’s BSPP, JIC, or NPT? We’ve got you covered.

Whether you're matching a 3" BSP Brass Ball Valve or identifying a hydraulic hose fitting, our thread chart makes the guesswork easy. Just grab a set of calipers (or even a tape measure), compare your fitting against our chart, and in most cases — boom — you’ll know exactly what thread you’ve got.

Still unsure? No worries. Snap a photo or two, send us the measurements, and we’ll help you confirm the thread so you can order with confidence.

💪 Built to Last Promise

Products we trust. Quality you can count on.

Every hose, fitting, clamp, valve and accessory we supply is carefully selected, used in our own workshop, and backed by our reputation for reliability. We don’t sell anything we wouldn’t use ourselves.

✔️ We crimp every hose assembly in-house for full quality control
✔️ We source only from trusted brands we’d stake our name on
✔️ We offer a no-fuss 2-year warranty on our hose assemblies
✔️ Most fittings, clamps and accessories carry manufacturer warranties from 12 months up to 10 years

Whether it’s under pressure or in harsh environments, our gear is built to last — and delivered fast.

🚚 Fast, Flexible Shipping

Australia-wide delivery with options to suit your jobsite and your deadline.

Whether it’s a single hose or a pallet of fittings, we’ll get it to you fast — with flexible options for critical and non-critical needs.

✔️ We ship Australia-wide — satchels, cartons & pallets
✔️ Delivery typically takes 1–10 business days, depending on your location
✔️ Urgent order? Priority freight options available at checkout
✔️ Some items may ship direct from our supply partners to speed up delivery
✔️ Tracking details provided once your order is dispatched

Need it fast or want to organise your own freight? Let us know — we’re here to help.

Engineered for Continental Spiral Hoses from 3000 to 6000 PSI. One-piece leak-free construction, Bite-to-Wire retention, no skive required, and reliable 37° flare sealing.

Description

PRODUCT TYPE:

One Piece Crimp Coupling: JIC Female Swivel 90° Long Drop (SAE J514 37° Flare)

CONNECTIONS:

End 1: Hose Tail (Spiral Hose Series)
End 2: JIC Female Swivel 90° Long Drop

PRODUCT DESCRIPTION:

The SG-JCFX90L is a Long Drop JIC Female Swivel Coupling designed for high-pressure hydraulic systems requiring extended clearance during hose routing. This one-piece 90° fitting eliminates potential leak points with a forged carbon steel body and no brazed seams. The elongated drop provides extra reach beyond a standard 90°, ideal for maneuvering around tight machinery or structural components. It connects via a 37° flare swivel nut and features Bite-to-Wire retention with full-length crimping for unmatched grip, safety, and durability no skiving required.

JIC THREAD EXPLANATION:

JIC (SAE J514) fittings use straight threads and a 37° flare for metal-to-metal sealing. This female swivel design mates with male JIC counterparts and is commonly used on mobile equipment, agricultural machinery, hydraulic cylinders, and tilt hitches. The long drop configuration supports compact or obstructed installations without kinking or stressing the hose.

FITS THE FOLLOWING CONTINENTAL HOSES:

SR12 (SAE 100R12 / EN 856 R12)
SR13 (SAE 100R13 / EN 856 R13)
SR15 (SAE 100R15)
XCP3S (SAE 100R12)
XCP4S (SAE 100R12)
XCP5S (SAE 100R13)
XCP6S (SAE 100R15)
SAE 100R15 EN 857 4SP

FEATURES & BENEFITS:

Forged one-piece body no welds, no leaks
90° Long Drop for additional hose routing flexibility
SAE J514 37° flare swivel connection for reliable sealing
Bite-to-Wire retention ensures high-pressure hose grip
Full-length crimp for safe and secure assembly
No skiving required cleaner, faster installs

Have questions or need help finding the right fitting? Our team is here to help you match threads, confirm compatibility, and get your hydraulic systems running reliably. Contact us for assistance or wholesale pricing today.
