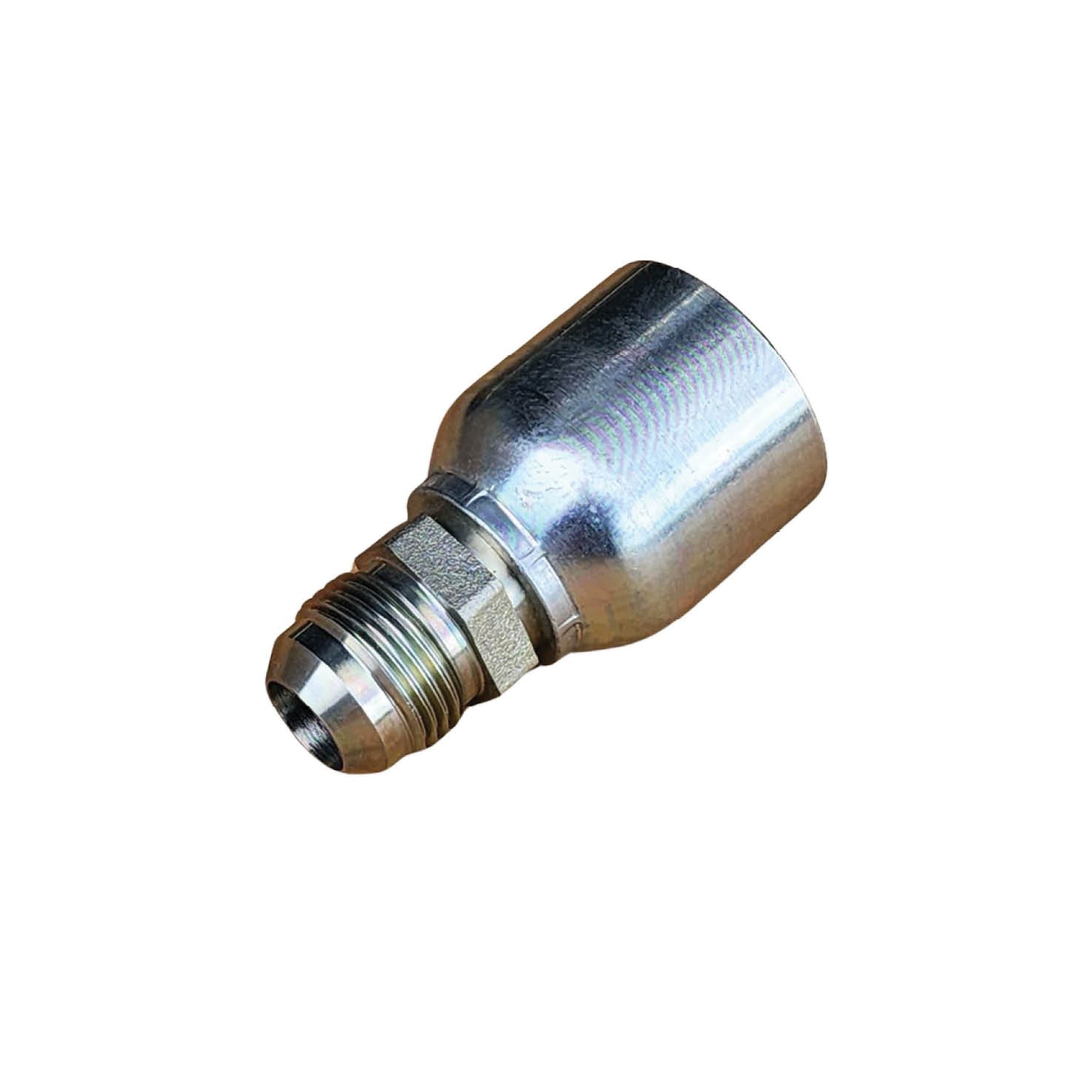

SG-JCM One-Piece JIC Male Spiral Hose Coupling

SIZE

Product variants

$28.56

Tax included Shipping calculated at checkout.

📏 Find Your Thread Size

Not sure if it’s BSPP, JIC, or NPT? We’ve got you covered.

Whether you're matching a 3" BSP Brass Ball Valve or identifying a hydraulic hose fitting, our thread chart makes the guesswork easy. Just grab a set of calipers (or even a tape measure), compare your fitting against our chart, and in most cases — boom — you’ll know exactly what thread you’ve got.

Still unsure? No worries. Snap a photo or two, send us the measurements, and we’ll help you confirm the thread so you can order with confidence.

💪 Built to Last Promise

Products we trust. Quality you can count on.

Every hose, fitting, clamp, valve and accessory we supply is carefully selected, used in our own workshop, and backed by our reputation for reliability. We don’t sell anything we wouldn’t use ourselves.

✔️ We crimp every hose assembly in-house for full quality control
✔️ We source only from trusted brands we’d stake our name on
✔️ We offer a no-fuss 2-year warranty on our hose assemblies
✔️ Most fittings, clamps and accessories carry manufacturer warranties from 12 months up to 10 years

Whether it’s under pressure or in harsh environments, our gear is built to last — and delivered fast.

🚚 Fast, Flexible Shipping

Australia-wide delivery with options to suit your jobsite and your deadline.

Whether it’s a single hose or a pallet of fittings, we’ll get it to you fast — with flexible options for critical and non-critical needs.

✔️ We ship Australia-wide — satchels, cartons & pallets
✔️ Delivery typically takes 1–10 business days, depending on your location
✔️ Urgent order? Priority freight options available at checkout
✔️ Some items may ship direct from our supply partners to speed up delivery
✔️ Tracking details provided once your order is dispatched

Need it fast or want to organise your own freight? Let us know — we’re here to help.

Engineered for Continental Spiral Hoses from 3000 to 6000 PSI. One-piece leak-free construction, Bite-to-Wire retention, no skive required, and reliable 37° flare sealing.

Description

PRODUCT TYPE:

One Piece Crimp Coupling: JIC Male (SAE J514 37° Flare)

CONNECTIONS:

End 1: Hose Tail (Spiral Hose Series)
End 2: JIC Male Straight (SAE J514 37° Flare)

PRODUCT DESCRIPTION:

The SG-JCM is a straight JIC Male One-Piece Coupling built for extreme pressure and reliability in hydraulic applications. Forged from high-strength carbon steel with no welds or brazed joints, it delivers leak-free performance under continuous vibration and shock loads. Featuring a 37° flare seat and straight threads per SAE J514, this fitting mates directly to female JIC swivels and ports. Designed for use with Continental spiral hoses from 3000 to 6000 PSI, the coupling utilizes Bite-to-Wire retention and full-length crimping for superior holding power and safety all with no skiving required.

JIC THREAD EXPLANATION:

JIC (Joint Industry Council) male fittings have a straight thread and 37° flare seat. They form a strong metal-to-metal seal when torqued against a JIC female swivel, providing dependable, high-pressure sealing without O-rings. JIC fittings are widely used in agricultural machinery, construction equipment, earthmoving attachments, tilt hitches, and hydraulic cylinders.

FITS THE FOLLOWING CONTINENTAL HOSES:

SR12 (SAE 100R12 / EN 856 R12)
SR13 (SAE 100R13 / EN 856 R13)
SR15 (SAE 100R15)
XCP3S (SAE 100R12)
XCP4S (SAE 100R12)
XCP5S (SAE 100R13)
XCP6S (SAE 100R15)
SAE 100R15 EN 857 4SP

FEATURES & BENEFITS:

One-piece forged body no brazed or welded seams
JIC 37° flare for robust metal-to-metal sealing
Designed for spiral hose systems rated to 6000 PSI
Bite-to-Wire retention and full-length crimp for maximum safety
Zero skive assembly faster, cleaner hose preparation
Trusted in agriculture, mining, industrial OEM, and hydraulic repairs

Have questions or need help finding the right fitting? Our team is here to help you match threads, confirm compatibility, and get your hydraulic systems running reliably. Contact us for assistance or wholesale pricing today.
