1/2" Connect Under Pressure Flat Face Coupling Set – ISO 16028
Stop fighting trapped pressure.
APM CUP Male + A-HD CUP Female ISO 16028 | 90 L/min suggested max flow | 330 bar / 4,785 psi
1/2" Connect Under Pressure Flat Face Coupling Set – ISO 16028 - 1/2" BSPP (Most Popular) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Datasheet
Product Datasheet
📏 Find Your Thread Size
📏 Find Your Thread Size
Not sure if it’s BSPP, JIC, or NPT? We’ve got you covered.
Whether you're matching a 3" BSP Brass Ball Valve or identifying a hydraulic hose fitting, our thread chart makes the guesswork easy. Just grab a set of calipers (or even a tape measure), compare your fitting against our chart, and in most cases — boom — you’ll know exactly what thread you’ve got.
Still unsure? No worries. Snap a photo or two, send us the measurements, and we’ll help you confirm the thread so you can order with confidence.
💪 Built to Last Promise
💪 Built to Last Promise
Products we trust. Quality you can count on.
Every hose, fitting, clamp, valve and accessory we supply is carefully selected, used in our own workshop, and backed by our reputation for reliability. We don’t sell anything we wouldn’t use ourselves.
✔️ We crimp every hose assembly in-house for full quality control
✔️ We source only from trusted brands we’d stake our name on
✔️ We offer a no-fuss 2-year warranty on our hose assemblies
✔️ Most fittings, clamps and accessories carry manufacturer warranties from 12 months up to 10 years
Whether it’s under pressure or in harsh environments, our gear is built to last — and delivered fast.
🚚 Fast, Flexible Shipping
🚚 Fast, Flexible Shipping
Australia-wide delivery with options to suit your jobsite and your deadline.
Whether it’s a single hose or a pallet of fittings, we’ll get it to you fast — with flexible options for critical and non-critical needs.
✔️ We ship Australia-wide — satchels, cartons & pallets
✔️ Delivery typically takes 1–10 business days, depending on your location
✔️ Urgent order? Priority freight options available at checkout
✔️ Some items may ship direct from our supply partners to speed up delivery
✔️ Tracking details provided once your order is dispatched
Need it fast or want to organise your own freight? Let us know — we’re here to help.
1/2" Connect Under Pressure Flat Face Coupling Set – ISO 16028
Description
Description
Stop fighting flat face couplings when trapped pressure builds in your attachment hoses.
This 1/2" Connect Under Pressure (CUP) Flat Face Coupling Set combines an APM Male with an A-HD Female, providing an ISO 16028 interchangeable coupling set specifically designed to make reconnection easier when residual pressure becomes trapped in disconnected attachment hoses.

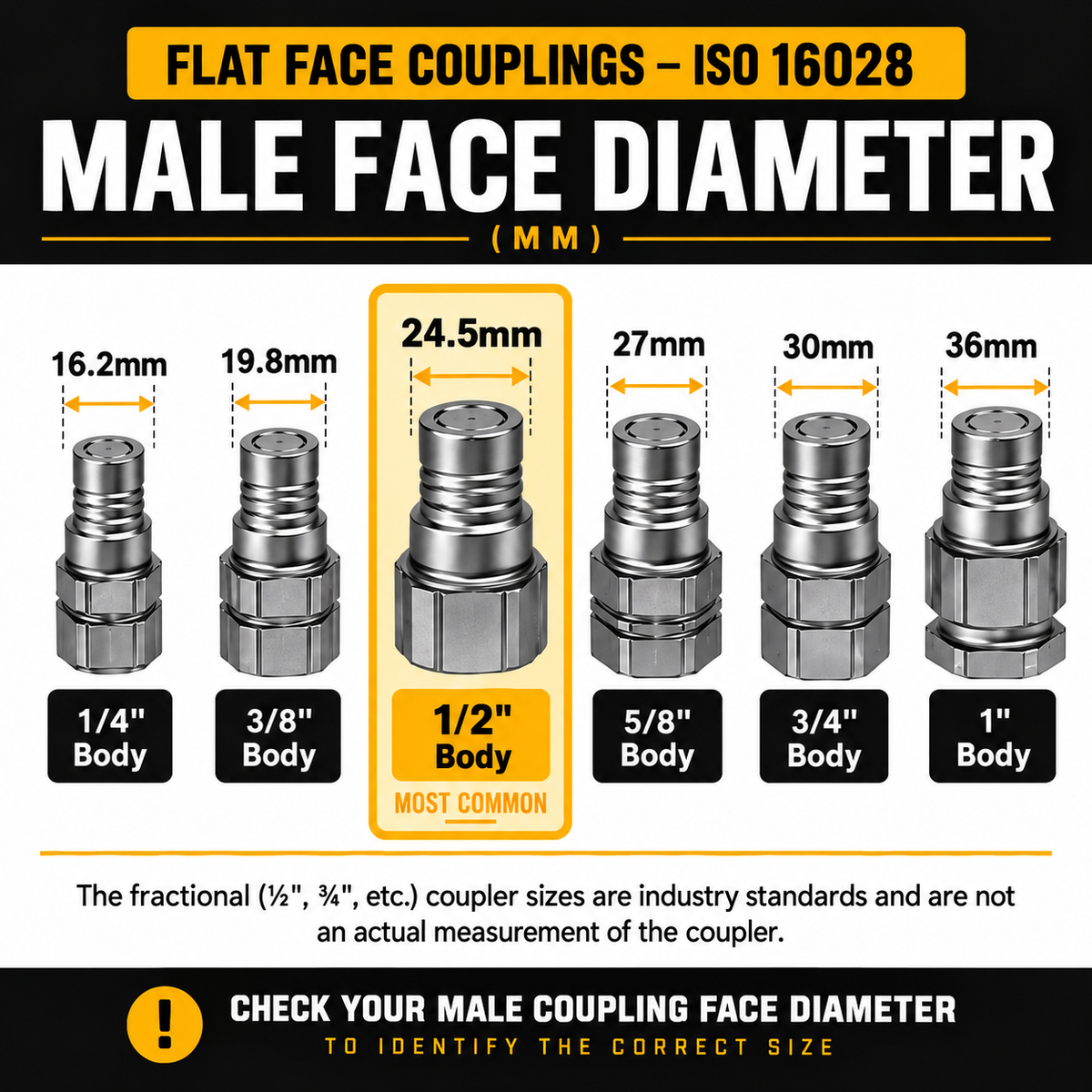

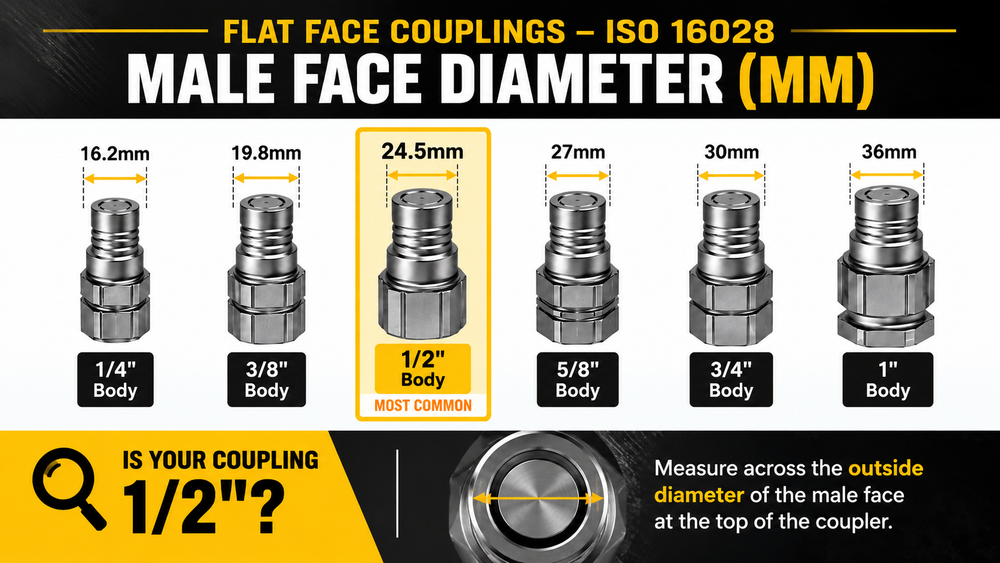

Not sure if yours is 1/2"?
Measure the male coupling across the mating face. The 1/2" ISO body size measures approximately 24.5 mm across the male face.

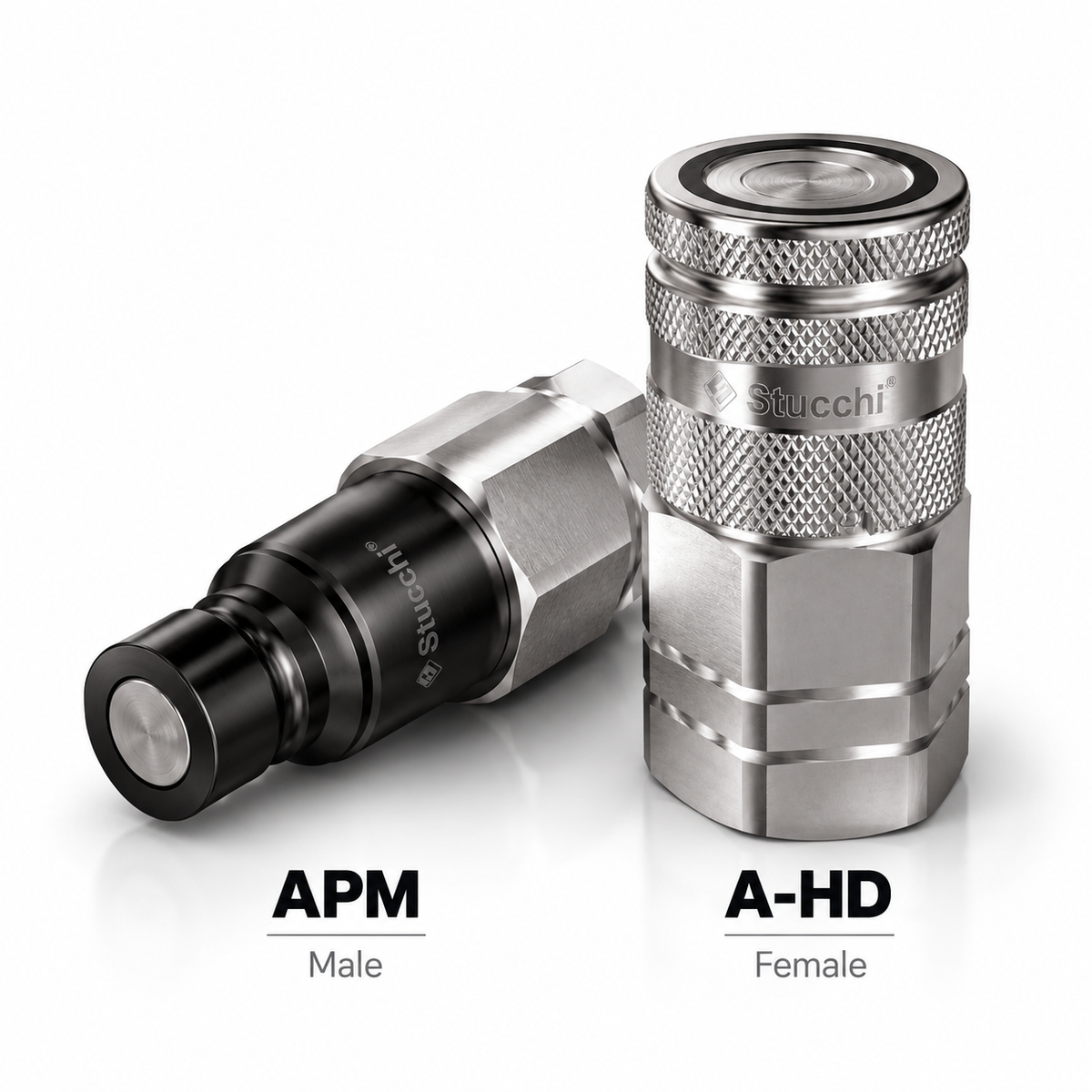

Each set includes:
- 1 × 1/2" APM Connect Under Pressure Male
- 1 × 1/2" A-HD Connect Under Pressure Female

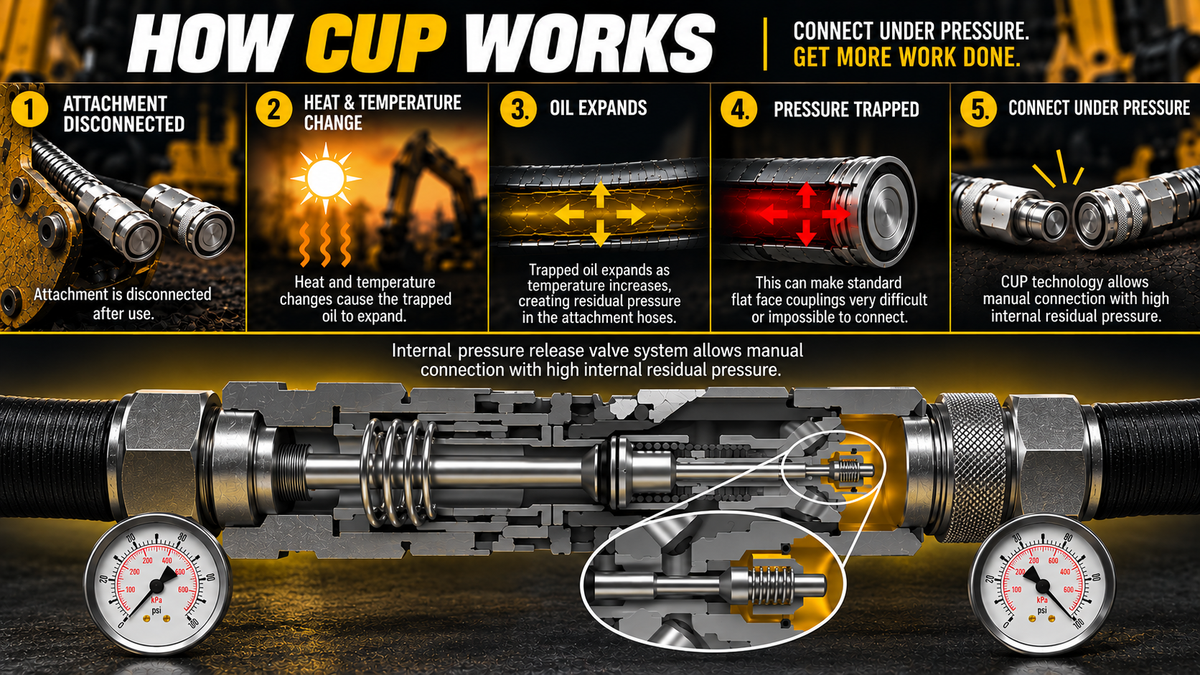

Both sides use the familiar ISO 16028 flat face profile while incorporating connect-under-pressure technology. The APM male is designed for connection with residual pressure on the male side when the female side is to drain, while the A-HD female can connect with residual pressure on the female side when the male side is to drain.
For this 1/2" body size, the manufacturer specifies a suggested maximum flow of 90 L/min and maximum operating pressure of 330 bar / 4,785 psi. Always confirm your individual machine and attachment requirements before selection.
