1/2" VEP-P Screw Together Flat Face Hydraulic Coupling Set – Breaker Couplings
Stop replacing Breaker damaged Couplers.
VEP-P Male + VEP-P Female CUP | 90 L/min suggested max flow | 550 bar / 7,975 psi
1/2" VEP-P Screw Together Flat Face Hydraulic Coupling Set – Breaker Couplings - 1/2" BSPP (Most Popular) / No is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Datasheet
Product Datasheet

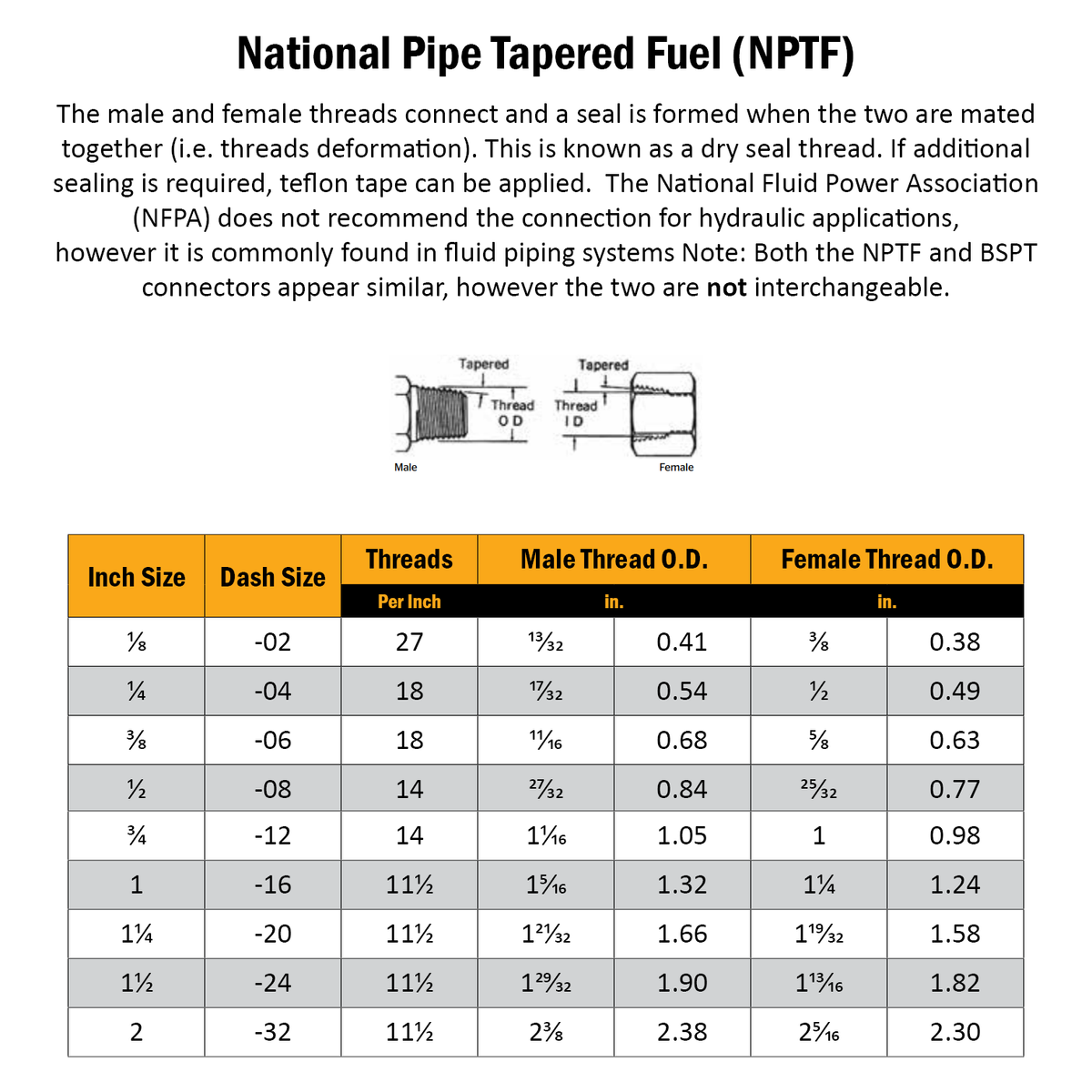

📏 Find Your Thread Size
📏 Find Your Thread Size
Not sure if it’s BSPP, JIC, or NPT? We’ve got you covered.
Whether you're matching a 3" BSP Brass Ball Valve or identifying a hydraulic hose fitting, our thread chart makes the guesswork easy. Just grab a set of calipers (or even a tape measure), compare your fitting against our chart, and in most cases — boom — you’ll know exactly what thread you’ve got.
Still unsure? No worries. Snap a photo or two, send us the measurements, and we’ll help you confirm the thread so you can order with confidence.
💪 Built to Last Promise
💪 Built to Last Promise
Products we trust. Quality you can count on.
Every hose, fitting, clamp, valve and accessory we supply is carefully selected, used in our own workshop, and backed by our reputation for reliability. We don’t sell anything we wouldn’t use ourselves.
✔️ We crimp every hose assembly in-house for full quality control
✔️ We source only from trusted brands we’d stake our name on
✔️ We offer a no-fuss 2-year warranty on our hose assemblies
✔️ Most fittings, clamps and accessories carry manufacturer warranties from 12 months up to 10 years
Whether it’s under pressure or in harsh environments, our gear is built to last — and delivered fast.
🚚 Fast, Flexible Shipping
🚚 Fast, Flexible Shipping
Australia-wide delivery with options to suit your jobsite and your deadline.
Whether it’s a single hose or a pallet of fittings, we’ll get it to you fast — with flexible options for critical and non-critical needs.
✔️ We ship Australia-wide — satchels, cartons & pallets
✔️ Delivery typically takes 1–10 business days, depending on your location
✔️ Urgent order? Priority freight options available at checkout
✔️ Some items may ship direct from our supply partners to speed up delivery
✔️ Tracking details provided once your order is dispatched
Need it fast or want to organise your own freight? Let us know — we’re here to help.
1/2" VEP-P Screw Together Flat Face Hydraulic Coupling Set – B...
Description
Description
Product description
Stop replacing standard quick couplings on hydraulic breakers.

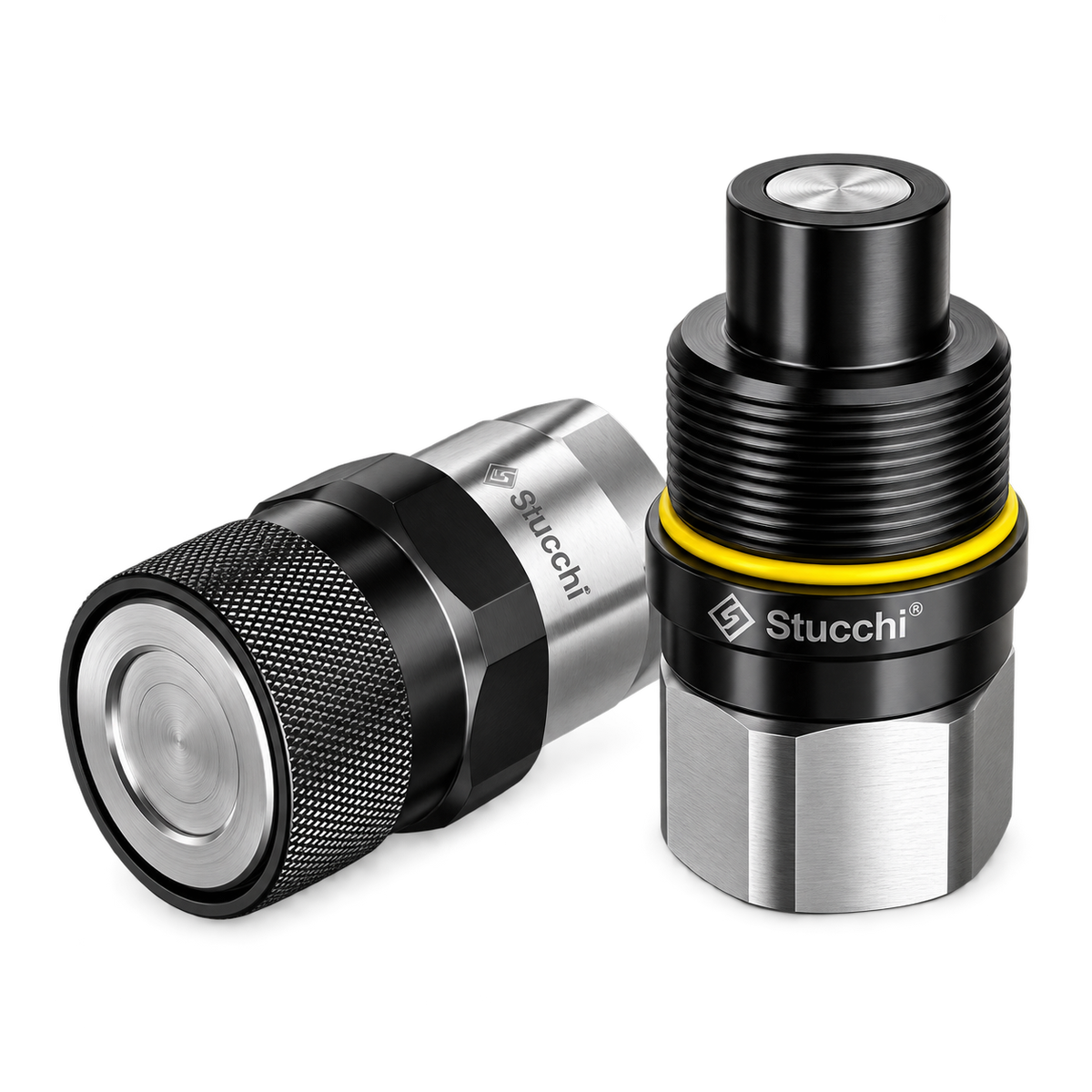

This 1/2" VEP-P Screw Together Flat Face Coupling Set combines one VEP-P male and one VEP-P female coupling, providing a heavy-duty flat face connection designed for demanding hydraulic applications subject to high pressure, pressure impulses and vibration.
Unlike a conventional push-to-connect flat face quick coupling, the VEP-P uses a screw-together connection to positively secure the male and female halves together.
This makes the VEP-P particularly suited to hydraulic breakers and other severe-duty, high-impulse attachments where standard quick couplings can become a recurring maintenance item.
Each set includes:
- 1 × 1/2" VEP-P Male Coupling
- 1 × 1/2" VEP-P Female Coupling
- Selected connection thread on both coupling halves
- Optional protective screw caps available
AVAILABLE CONNECTIONS:
- 1/2" BSP
- 3/4" BSP
- 1/2" NPT
- 3/4" NPT
- 3/4" SAE / 7/8"-14 UNO
Important: The thread size refers to the hose/port connection. All options listed here use the 1/2" VEP13P coupling body size.
Why screw together for a breaker?
Hydraulic breakers subject the hydraulic circuit and couplings to repeated pressure impulses and vibration.
The VEP-P's threaded connection mechanically secures the two coupling halves together, making it a purpose-built alternative where conventional quick couplings are struggling with the application.
FEATURES & BENEFITS:
- Designed for demanding high-impulse hydraulic applications
- Ideal for hydraulic breakers / rock hammers
- Heavy-duty screw-together connection
- Flat face design helps minimise oil loss and contamination during connection and disconnection
- Male and female supplied as a matched set
- Multiple hose connection threads available
- Optional protective screw caps
- Suitable for upgrading machines and attachments currently experiencing repeated quick coupling issues

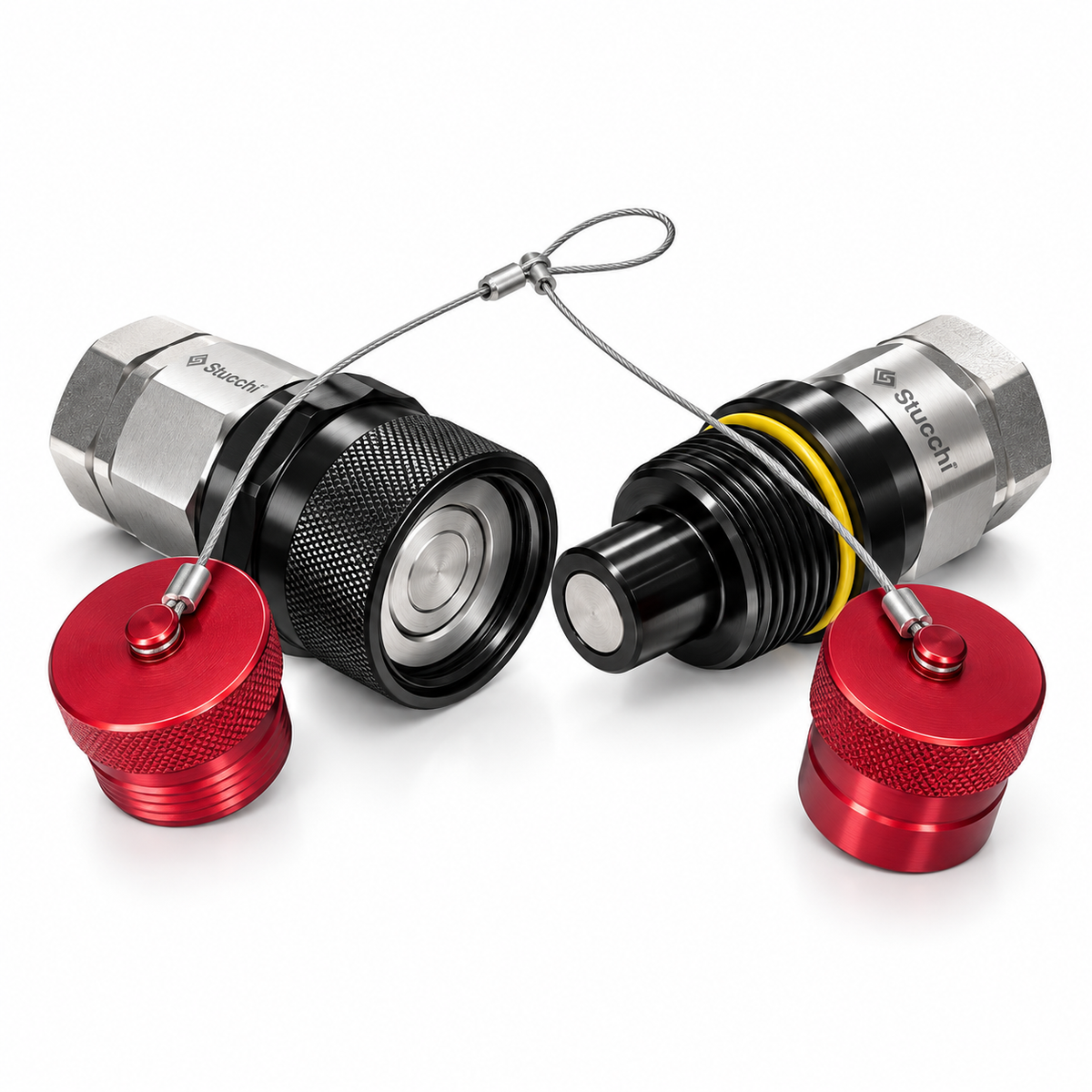

OPTIONAL PROTECTIVE SCREW CAPS
Select “Yes – Add Protective Screw Caps” to add a matching protective cap arrangement for the male and female coupling.
Protective caps help keep the coupling faces and connecting threads protected from dirt, dust, mud and damage while disconnected — particularly useful on excavator attachments operating in harsh environments.
IMPORTANT – ONE SET CONNECTS ONE CIRCUIT
One set contains one male + one female coupling.
For a typical breaker installation where you are replacing the couplings on both the excavator and the attachment, you will generally require:
2 sets – one set for each hydraulic line.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
WHY SCREW TOGETHER?
Hydraulic breakers are a high-impulse application. The repeated pressure spikes and vibration can be extremely hard on standard ball-lock quick couplings, leading to wear, brinelling and premature coupling failure.
VEP-P screw-together flat face couplings are designed for demanding, high-impulse hydraulic applications. Rather than relying on a ball-locking mechanism to hold the coupling together, the male and female halves screw securely together, providing a robust connection suited to the punishment of breaker operation.
The idea is simple: use a coupling designed for the application, rather than continually replacing standard quick couplings that aren't.
