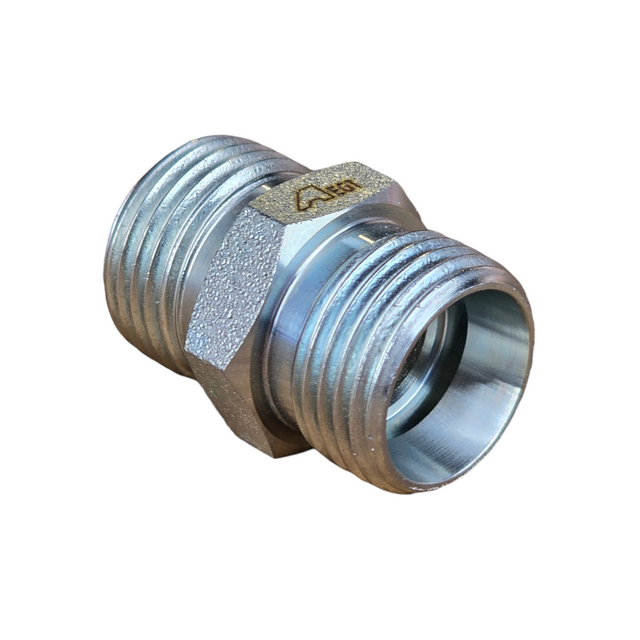

1C - METRIC DKL MALE X METRIC DKL MALE NIPPLE

TYPE:

Straight Male x Male Nipple Metric DKL (DIN Light) Male x Metric DKL Male

CONNECTIONS:

• End 1: Metric DKL Male DIN 2353 Light Series (24° Cone)
• End 2: Metric DKL Male DIN 2353 Light Series (24° Cone)

DESCRIPTION:

This 1C adaptor is a straight nipple with Metric DKL Male threads on both ends, designed to join two light-series DIN metric fittings. The 24° cone face mates with a corresponding female seat to form a metal-to-metal seal. DKL fittings are widely used in European hydraulic systems and on equipment where lower pressure ratings are sufficient compared to DKS heavy series.

COMMON APPLICATIONS:

• Connecting metric DIN hose ends or ports in low to medium pressure systems
• Found in European-manufactured equipment and attachments
• Used for joining or extending existing hydraulic lines
• Ideal for industrial plant, agricultural implements, and factory machinery

SUITS THESE MACHINES:

• Fendt, Deutz-Fahr, SAME, Valtra, CLAAS, and European-engineered machinery
• Implements and attachments with DIN-style hydraulic connections
• Mobile and fixed plant systems using 24° metric light series fittings

THREAD & SEAL DETAILS:

• Thread Type: Metric fine thread to DIN 2353 (Light Series)
• Seal Type: 24° cone metal-to-metal seal with matching female cone
• Standard: ISO 8434-1 / DIN 2353 (DKL = DIN Light Series)

Need help confirming whether your fitting is DIN Light (DKL) or DIN Heavy (DKS)? Our team can help identify the correct thread and seal type for your application.
