2" Bore Double Acting Hydraulic Cylinder – 3000 PSI | Multiple...
Description
Description

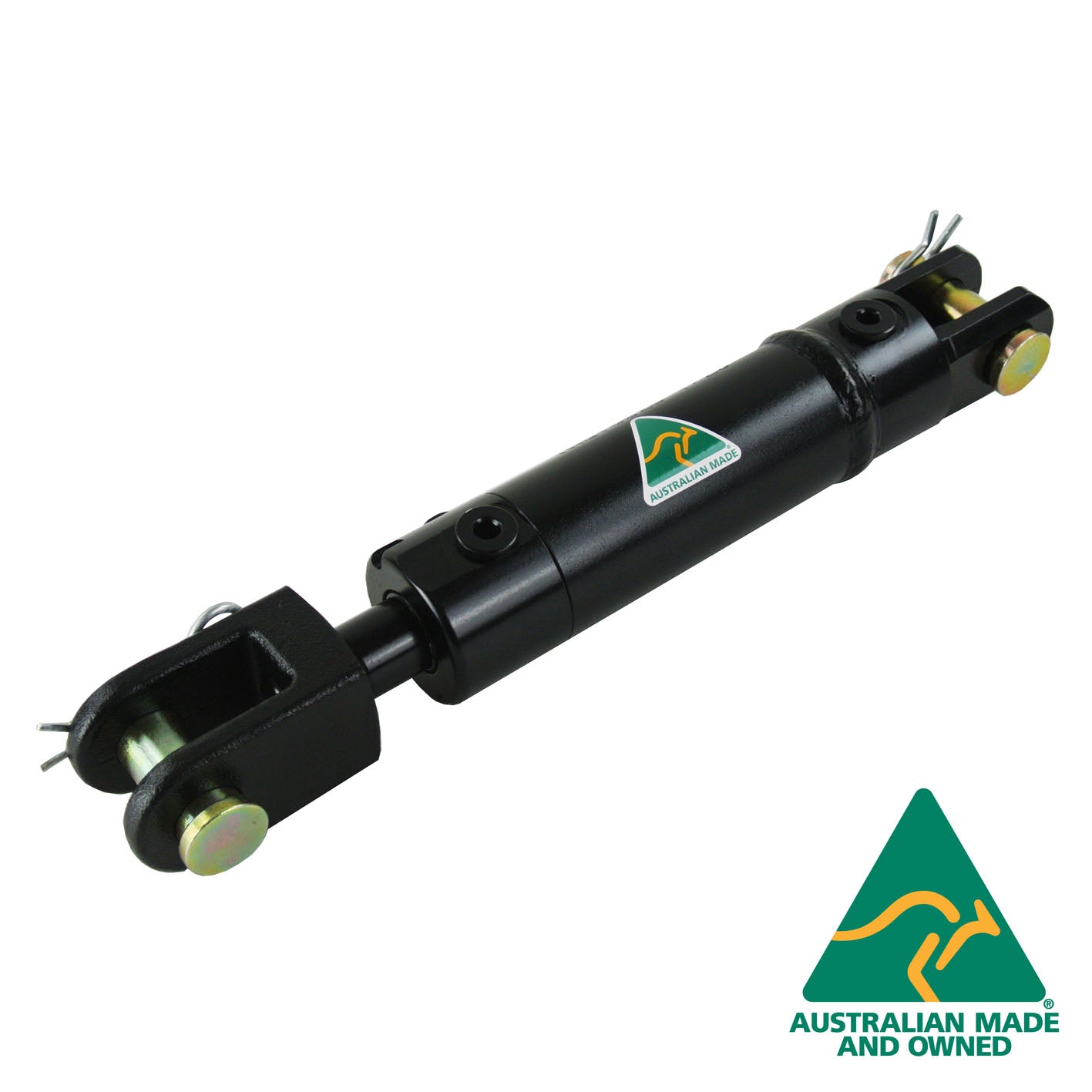

Heavy-Duty 2" Bore Double Acting Hydraulic Cylinder
A robust 2" bore double acting hydraulic cylinder suited to agricultural machinery, implements, trailers and a wide range of general hydraulic applications.
Available in multiple stroke lengths from 2" through to 54", allowing you to select the cylinder length required for your application from the options above.
These cylinders feature a 1.25" diameter rod, 9/16" UNO hydraulic ports and are rated to a maximum working pressure of 3000 PSI. The standard mounting arrangement uses 1" pins, with the clevis incorporating provision for an optional locking pin.
Key Features
- 2" bore
- Double acting hydraulic cylinder
- 3000 PSI maximum working pressure
- Heavy-duty 1.25" rod
- 9/16" UNO hydraulic ports
- 1" mounting pins
- Dual port design
- Clevis mounting
- Clevis provision for optional locking pin
- Dated serial number
- Wide range of stroke lengths available
- Suitable for agricultural and general hydraulic applications
Available Stroke Lengths
| Stroke | Part Number | Closed Length | Open Length |
|---|---|---|---|
| 2" | TAG 2002D | 14.25" / 361.95mm | 16.25" / 412.75mm |
| 4" | TAG 2004D | 16.25" / 412.75mm | 20.25" / 514.35mm |
| 6" | TAG 2006D | 18.25" / 463.55mm | 24.25" / 615.95mm |
| 8" | TAG 2008D | 20.25" / 514.35mm | 28.25" / 717.55mm |
| 10" | TAG 2010D | 22.25" / 565.15mm | 32.25" / 819.15mm |
| 12" | TAG 2012D | 24.25" / 615.95mm | 36.25" / 920.75mm |
| 14" | TAG 2014D | 26.25" / 666.75mm | 40.25" / 1022.35mm |
| 16" | TAG 2016D | 28.25" / 717.55mm | 44.25" / 1123.95mm |
| 18" | TAG 2018D | 30.25" / 768.35mm | 48.25" / 1225.55mm |
| 20" | TAG 2020D | 32.25" / 819.15mm | 52.25" / 1327.15mm |
| 22" | TAG 2022D | 34.25" / 869.95mm | 56.25" / 1428.75mm |
| 24" | TAG 2024D | 36.25" / 920.75mm | 60.25" / 1530.35mm |
| 26" | TAG 2026D | 38.25" / 971.55mm | 64.25" / 1631.95mm |
| 28" | TAG 2028D | 40.25" / 1022.35mm | 68.25" / 1733.55mm |
| 30" | TAG 2030D | 42.25" / 1073.15mm | 72.25" / 1835.15mm |
| 36" | TAG 2036D | 48.25" / 1225.55mm | 84.25" / 2139.95mm |
| 42" | TAG 2042D | 54.25" / 1377.95mm | 96.25" / 2444.75mm |
| 48" | TAG 2048D | 60.25" / 1530.35mm | 108.25" / 2749.55mm |
| 54" | TAG 2054D | 66.25" / 1682.75mm | 120.25" / 3054.35mm |
Selecting the Correct Cylinder
Stroke length is the distance the cylinder rod travels between fully retracted and fully extended.
When replacing an existing cylinder, we recommend checking:
Bore: 2"
Rod Diameter: 1.25"
Stroke: Match your required travel
Closed Length: Pin centre to pin centre with cylinder fully retracted
Mounting Pin Size: 1"
Hydraulic Ports: 9/16" UNO
Don't select a cylinder based on stroke alone. Check the closed length, mounting arrangement, pin size and hydraulic port size against your existing cylinder before ordering.
Safety Information
Important: The manufacturer's catalogue states that hydraulic cylinders without a hose burst valve, pilot-operated check valve or counterbalance valve directly mounted to the cylinder will not meet Australian Standard AS1418.8 or applicable occupational health and safety requirements where those requirements apply.
If you're unsure whether this cylinder is suitable for your application, contact us before ordering.
