DHS – Metric Heavy Hydraulic Cutting Sleeve (DIN 2353 S Series)
Description
Description

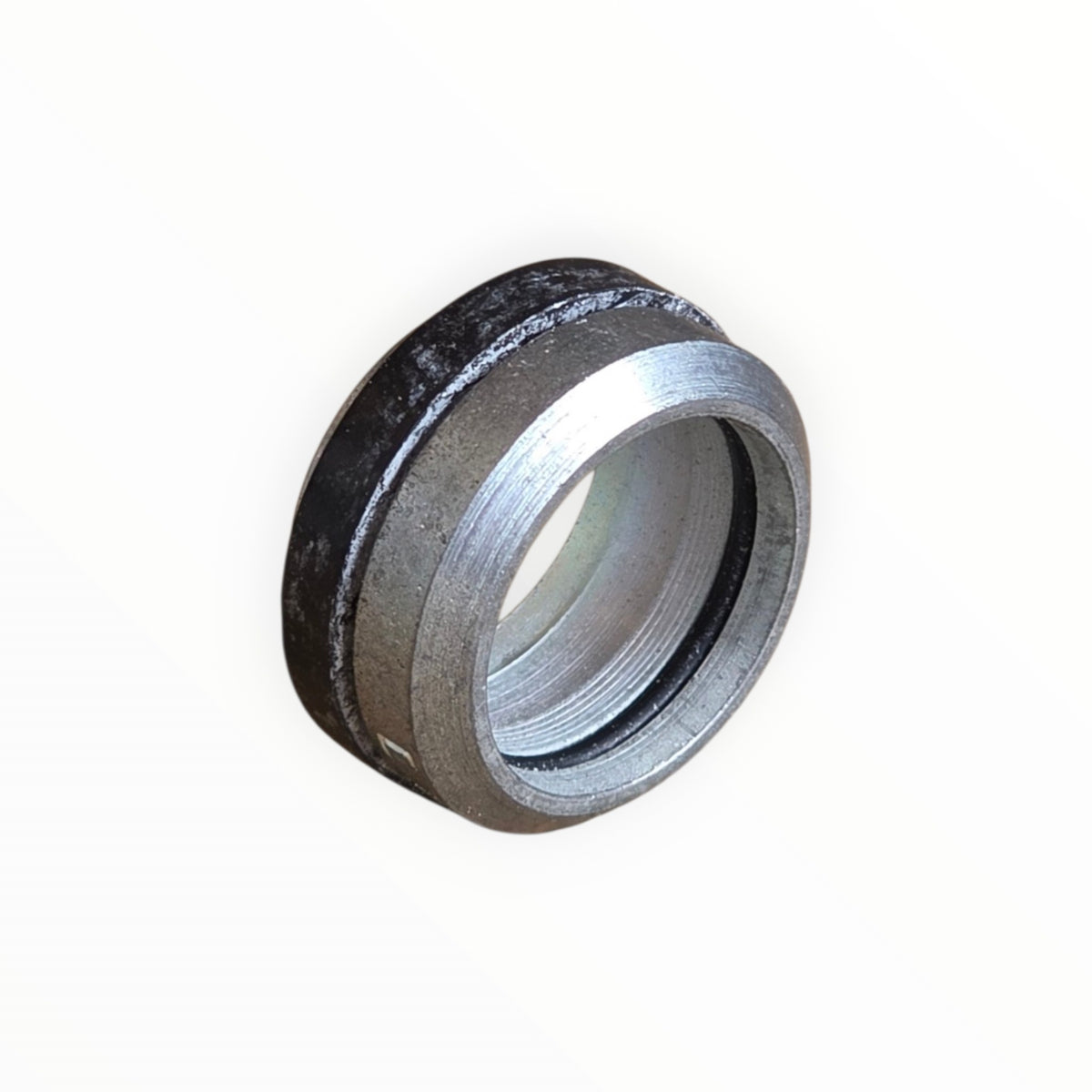

DHS – Metric Heavy Hydraulic Cutting Sleeve | DIN 2353 S Series
The DHS Metric Heavy Cutting Sleeve is designed for use with metric heavy-series (S Series) hydraulic tube fittings in high-pressure hydraulic systems.
Also known as a cutting ring or bite-type sleeve, this component grips the outside of the hydraulic tube during assembly, creating a secure mechanical connection when used with a matching Metric Heavy tube nut and 24° cone fitting body.
Designed for hydraulic tube installations, repairs and replacement rigid hydraulic lines across mobile machinery, industrial equipment and hydraulic power systems.
Features
-
Metric Heavy (S Series) hydraulic cutting sleeve
-
DIN 2353 compatible 24° compression fitting system
-
Bite-type design for secure tube retention
-
Designed for use with matching Metric Heavy (S Series) tube nuts
-
Suitable for seamless metric hydraulic tubing
-
Ideal for high-pressure hydraulic applications
-
Suitable for hydraulic hard-line fabrication and repairs
Specifications
| Specification | Details |
|---|---|
| Product Code | DHS |
| Fitting Type | Metric Heavy Cutting Sleeve / Cutting Ring |
| Series | S Series – Heavy |
| Connection Standard | DIN 2353 |
| Connection Type | 24° Compression |
| Application | Hydraulic tube compression fittings |
Important: Must be used with compatible Metric Heavy (S Series) tube nuts and 24° cone fitting bodies. Correct tube material, wall thickness and assembly procedure must be followed to ensure a secure connection.
Available Sizes
Select your required size from the variants.
