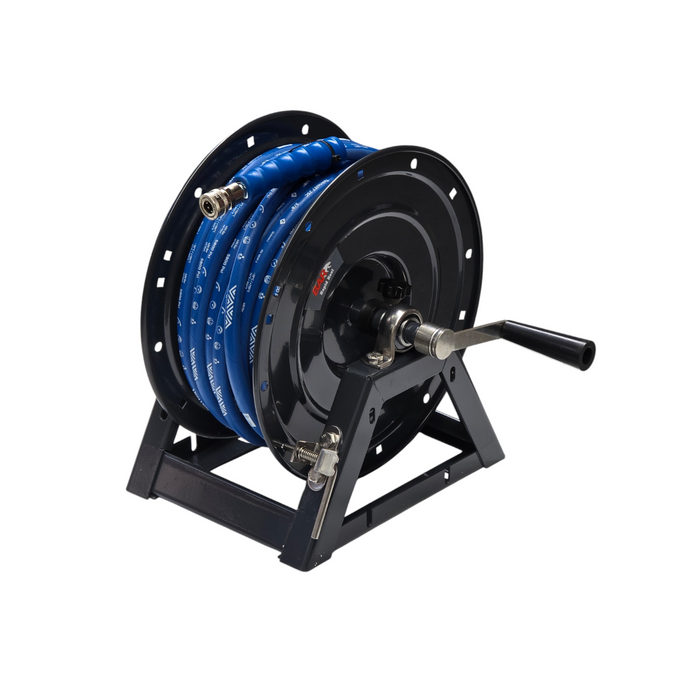

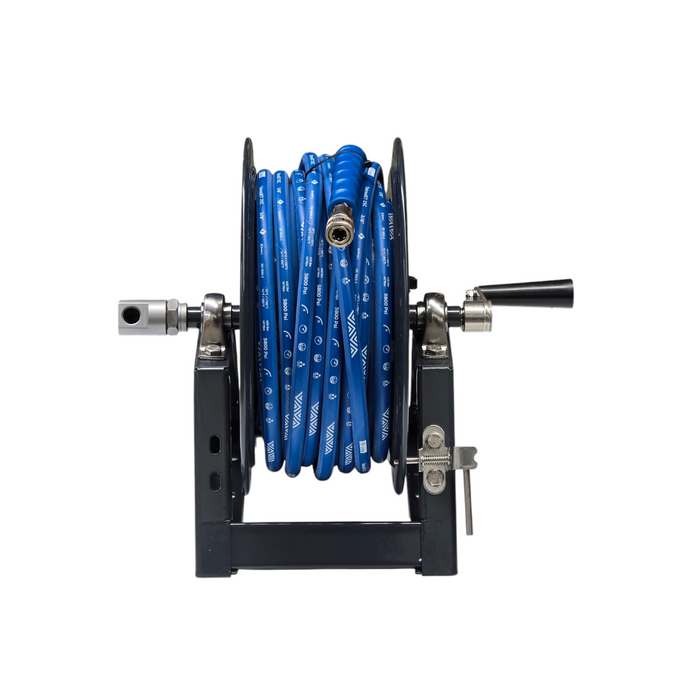

Heavy Duty A-Frame Pressure Wash Hose Reel – Up to 5,075 PSI, 46m Capacity
Heavy Duty A-Frame Pressure Wash Hose Reel – Up to 5,075 PSI, 46m Capacity - Unfitted .
Couldn't load pickup availability
Warranty
Warranty
We pass on full manufacturer warranties for all products — minimum 12 months. For hose assemblies built by Tasmanian Hose Solutions, we offer a 2-year workmanship warranty (excluding normal wear and tear, misuse, or incorrect selection of hose, fittings or application). Contact us if you need support — we stand behind what we build.
Delivery and Shipping
Delivery and Shipping
We dispatch orders daily with fast airfreight available Australia-wide. Ready-to-use hose assemblies and in-stock items ship same day where possible — delivery 1–2 days to most regions.
Heavy Duty A-Frame Pressure Wash Hose Reel – Up to 5,075 PSI, 46m C...
Description
Description
PRODUCT TYPE:
Heavy Duty Pressure Washer Hose Reel – A-Frame BAR Style, Crank Rewind
APPLICATION OVERVIEW:
Built for the toughest environments, the Heavy-Duty A-Frame Crank Hose Reel is a powerhouse solution for managing high-pressure washdown hoses. Designed in the classic BAR™ style, this reel accommodates up to 46 metres of 3/8" hose and withstands pressures up to 5,075 PSI – making it ideal for commercial cleaning, agricultural washdown, mobile detailing, and industrial applications.
Whether installed in a pressure cleaning trailer, mounted in a workshop, or used on-site, this reel provides reliability, durability, and smooth operation with a crank rewind system and adjustable braking. Optional power rewind and hose guide upgrades offer even more flexibility.
- High-pressure rated: Up to 5,075 PSI and 80 L/min flow rate
- Heavy-duty construction: Dual sealed axle ball bearings with stainless steel hardware
- Reversible handle and swivel: Easy left or right-hand operation
- Adjustable rubber friction brake: Controls hose tension with 6-point locking pin
- Universal footprint: 130 mm hole centres suit common mounting configurations
- High-flow swivel: Stainless steel swivel with Parker Viton O-rings
- Powder-coated A-frame: Gloss black, corrosion-resistant finish
- Upgrade-ready: Optional 12V power rewind kit and hose guide available
Choose bare reel or select a pre-fitted version with premium Italian-made pressure washer hose:
- 1/4" x 30m – 3/8" Quick Coupler Outlet
- 1/4" x 45m – 3/8" Quick Coupler Outlet
- 3/8" x 30m – 3/8" Quick Coupler Outlet
- 3/8" x 45m – 3/8" Quick Coupler Outlet
- Pressure: Up to 5,075 PSI (350 Bar)
- Flow Rate: Up to 80 L/min
- Temperature Rating: Up to 150°C
- Inlet: 1/2" F NPT
- Outlet: 1/2" F NPT
- Disc Diameter: 450 mm
- Overall Dimensions: L: 387 mm x W: 315 mm x H: 473.6 mm
- OPTIONAL Hose Guide: Prevents hose damage during rewinding
- OPTIONAL 12-Volt Power Rewind Kit: Includes bracket, ring gear & hardware
Reels are shipped directly from the manufacturer or available for in-store pickup. Lead times may apply depending on configuration. PO Box delivery is not available for this item due to size and courier restrictions.
Need help selecting the right hose or reel configuration? Our team is ready to assist with sizing, fitting compatibility, and power rewind upgrades. Contact us for expert advice or wholesale pricing.
BUILT TO LAST, DELIVERED FAST.
Specifications
Specifications
-
What is it?-
-
Hose Structure-
-
Hose Series-
-
Fittings & Compatibility-
-
Where To Use It-
