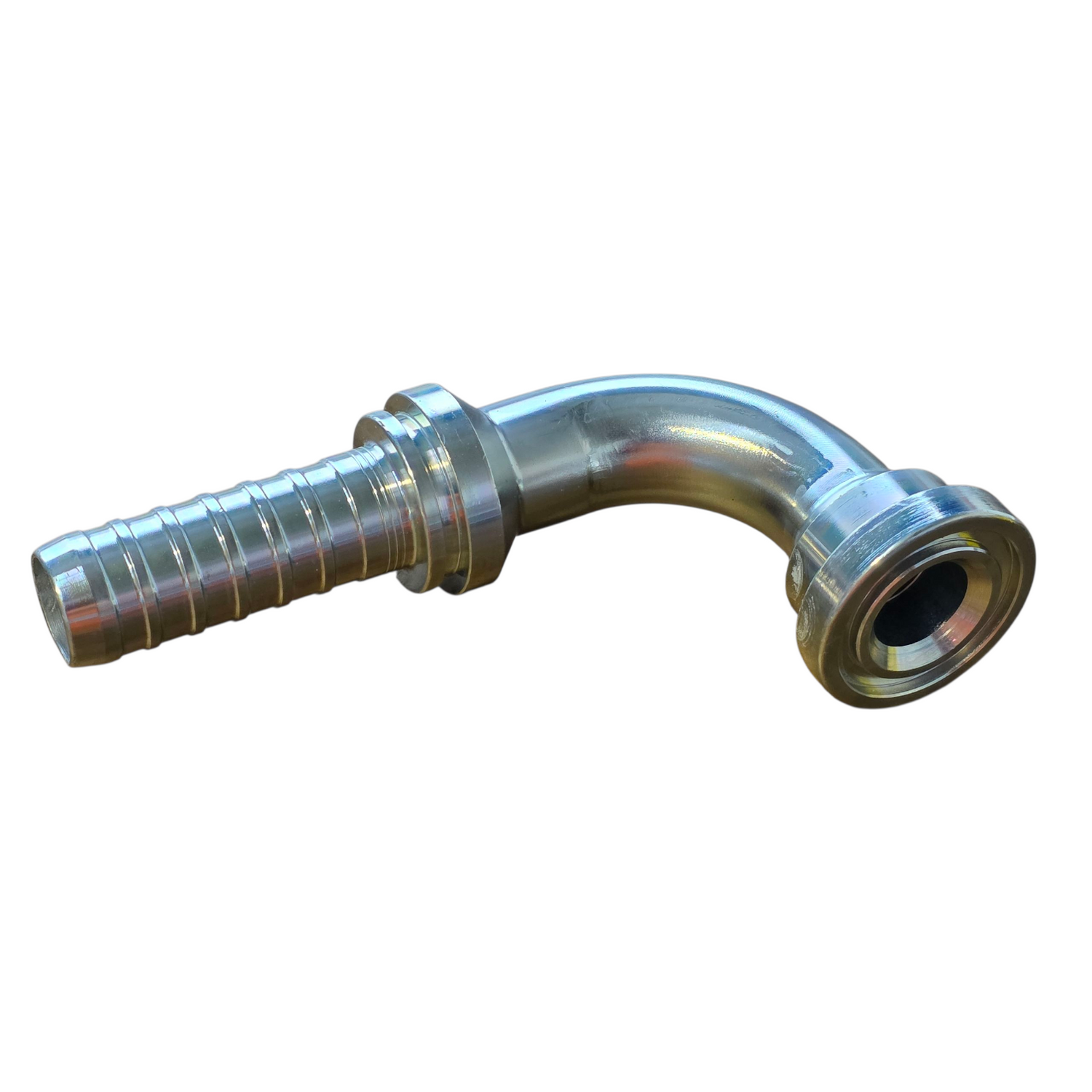

HF90P – Vitillo HyperSpiral Code 62 Flange 90° Elbow – Two-Piece Hose Tail
📥 Product Resources
📥 Product Resources
HF90P – Vitillo HyperSpiral Code 62 Flange 90° Elbow – Two-Piece Hose Tail - 3/4" HOSE X 3/4" FLANGE is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
📏 Find Your Thread Size
📏 Find Your Thread Size
Not sure if it’s BSPP, JIC, or NPT? We’ve got you covered.
Whether you're matching a 3" BSP Brass Ball Valve or identifying a hydraulic hose fitting, our thread chart makes the guesswork easy. Just grab a set of calipers (or even a tape measure), compare your fitting against our chart, and in most cases — boom — you’ll know exactly what thread you’ve got.
Still unsure? No worries. Snap a photo or two, send us the measurements, and we’ll help you confirm the thread so you can order with confidence.
💪 Built to Last Promise
💪 Built to Last Promise
Products we trust. Quality you can count on.
Every hose, fitting, clamp, valve and accessory we supply is carefully selected, used in our own workshop, and backed by our reputation for reliability. We don’t sell anything we wouldn’t use ourselves.
✔️ We crimp every hose assembly in-house for full quality control
✔️ We source only from trusted brands we’d stake our name on
✔️ We offer a no-fuss 2-year warranty on our hose assemblies
✔️ Most fittings, clamps and accessories carry manufacturer warranties from 12 months up to 10 years
Whether it’s under pressure or in harsh environments, our gear is built to last — and delivered fast.
🚚 Fast, Flexible Shipping
🚚 Fast, Flexible Shipping
Australia-wide delivery with options to suit your jobsite and your deadline.
Whether it’s a single hose or a pallet of fittings, we’ll get it to you fast — with flexible options for critical and non-critical needs.
✔️ We ship Australia-wide — satchels, cartons & pallets
✔️ Delivery typically takes 1–10 business days, depending on your location
✔️ Urgent order? Priority freight options available at checkout
✔️ Some items may ship direct from our supply partners to speed up delivery
✔️ Tracking details provided once your order is dispatched
Need it fast or want to organise your own freight? Let us know — we’re here to help.
Description
Description
PRODUCT TYPE:
Code 62 Hydraulic Flange – 90° Elbow – HyperSpiral Heavy-Duty Two-Piece Crimp Tail
CONNECTION:
SAE Code 62 Flat-Face Flange Head – 4-Bolt Pattern (High-Pressure)
DESCRIPTION:
The HF90P – Vitillo HyperSpiral Code 62 Flange 90° Elbow is a high-performance hydraulic fitting engineered for the most demanding fluid power systems. Featuring a long-radius 90° swept elbow and a flat-face SAE Code 62 flange head, this fitting is built to manage extreme pressure and flow without compromise.
Its reinforced HyperSpiral crimp tail ensures deep bite and superior retention when paired with Vitillo spiral hoses and ferrules. Perfect for high-impulse applications in mining, oil and gas, construction, and heavy mobile equipment, the HF90P offers unmatched durability, sealing, and vibration resistance in tight routing configurations.
COMPATIBLE HOSES:
- Vitillo Everest 3000, 4000, 5000, 6000
- Vitillo 4C6000 and Teknospir 4SP / 4SH
- SAE 100R12, R13, R15, 4SP, and 4SH hoses
Need help configuring your hose assembly with the correct flange pattern and ferrule? Contact our expert team—we’ll spec it right.
