Description
Description
Accurately measure diesel fuel transfer with a compact, durable digital inline flow meter.

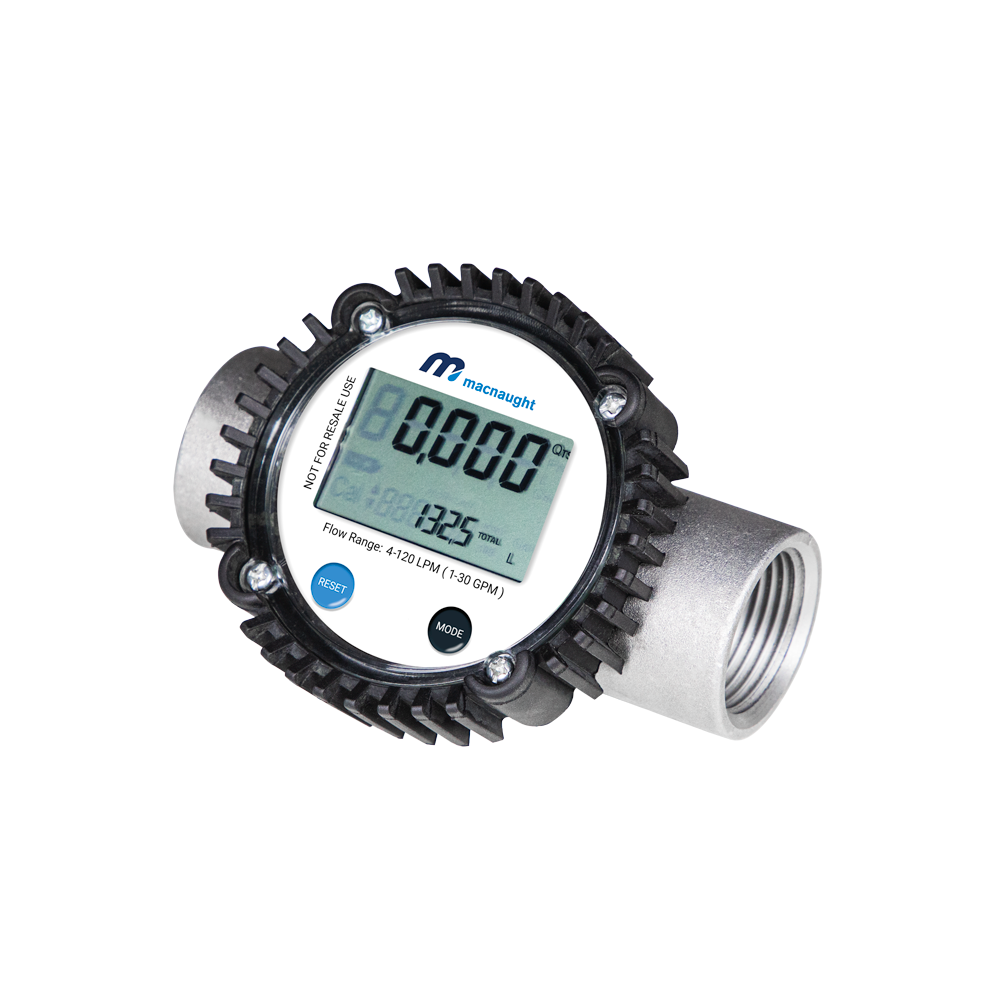

The Macnaught ADTFM-2 Digital Diesel Flow Meter is designed for inline or end-of-line diesel transfer applications, providing an easy way to monitor fuel flow from mobile diesel tanks, transfer systems and other diesel equipment.
With a 4–120 L/min flow range, 1" BSP female ports and a maximum working pressure of 150 PSI, the ADTFM-2 is well suited to agricultural, automotive and industrial diesel transfer applications.
A particularly useful feature is its multi-directional digital display. The display card can be rotated within the housing, allowing the screen to be positioned in four different directions to suit the installation. The meter is also bi-directional, meaning either port can be used as the inlet or outlet.
The cast aluminium body and sealed electronic card provide a compact, durable design suited to regular use around diesel transfer equipment. The meter can also be recalibrated and carries an IP55 rating.
Key Features
- Digital turbine flow meter for diesel fuel
- Flow range: 4–120 L/min
- 1" BSP female inlet and outlet ports
- Maximum working pressure: 150 PSI
- Working temperature range: -20°C to 70°C
- IP55 rated
- Bi-directional – either port can be used as inlet or outlet
- Display can be positioned in four different directions
- Cast aluminium body
- Sealed electronic card
- Easy to use and recalibrate
- Suitable for mobile diesel tanks
- Suitable for automotive, agricultural and industrial applications
Package Includes
1 × Macnaught ADTFM-2 Digital Diesel Meter
1 × 1" BSP male-to-male adaptor
Technical Specifications
| Specification | Details |
|---|---|
| Product Code | ADTFM-2 |
| Meter Type | Digital turbine meter |
| Fluid | Diesel only |
| Flow Range | 4–120 L/min |
| Ports | 1" BSP Female |
| Maximum Working Pressure | 150 PSI |
| Temperature Range | -20°C to 70°C |
| Protection Rating | IP55 |
| Flow Direction | Bi-directional |
| Body | Cast aluminium |
Important: This meter is specified for diesel only.
