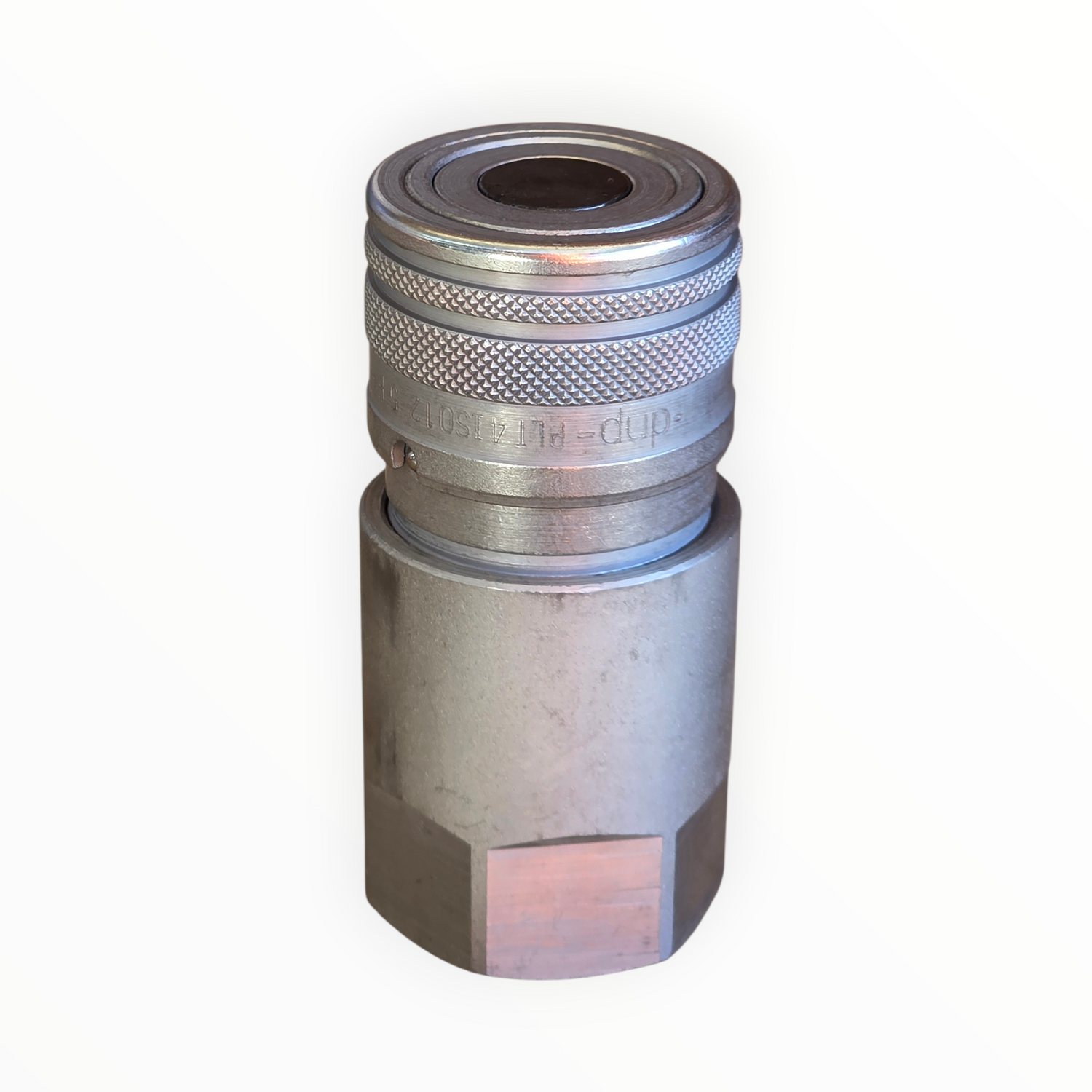

DNP ISO 16028 Flat Face Hydraulic Quick Couplers

Premium Italian-made hydraulic quick couplers built for demanding equipment.

The DNP PLT4 Series flat face quick couplers are high-pressure hydraulic couplings manufactured by DNP Industriale (Italy) and designed to meet the ISO 16028 international standard. These couplers are widely used on modern construction equipment, excavators, skid steers and hydraulic attachments where clean connection and reliable performance are critical.

The flat-face design minimises oil loss during connection and disconnection while preventing dirt and contamination from entering the hydraulic system.

Available Configurations

Tasmanian Hose Solutions supplies a complete range of DNP ISO16028 flat face couplers including:

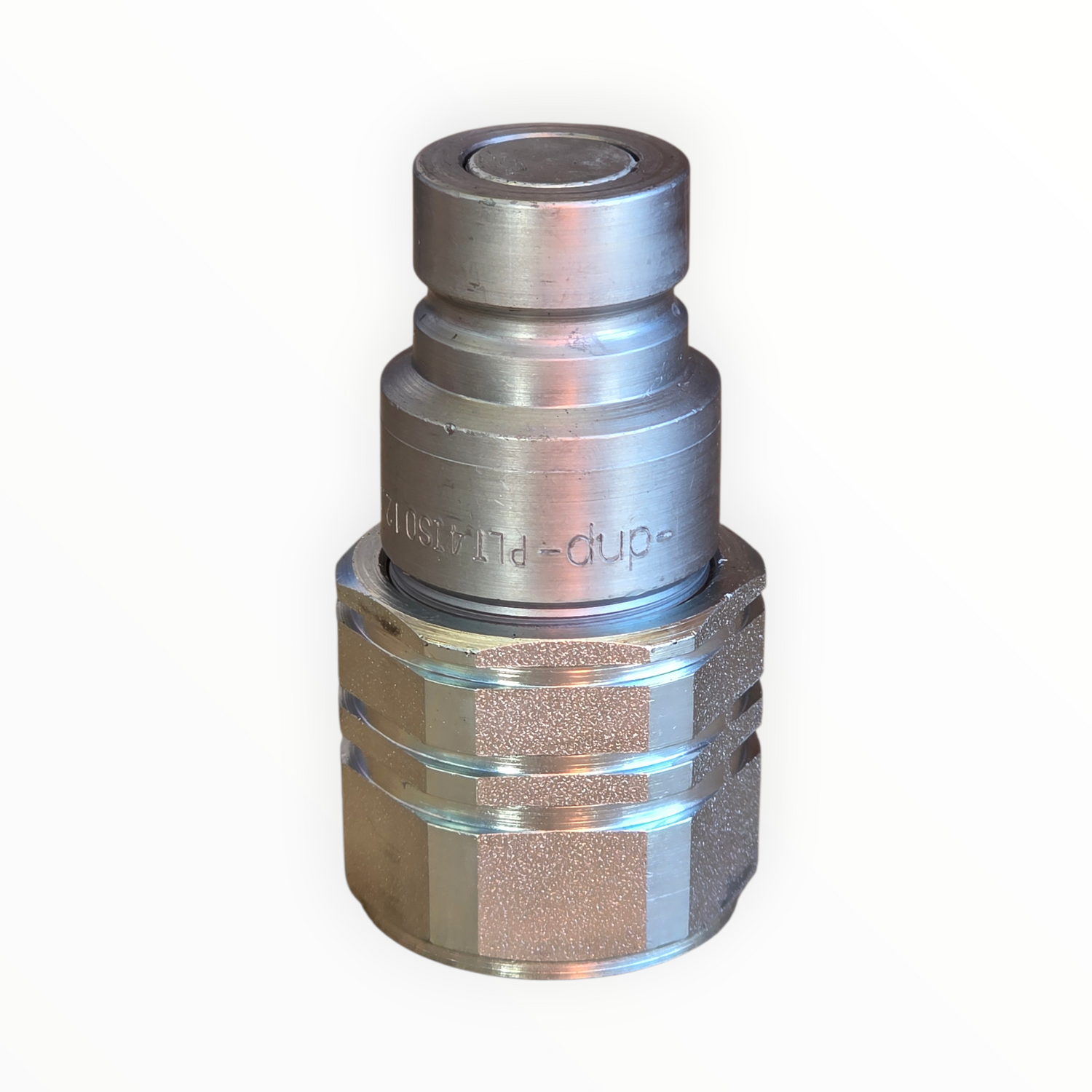

Male couplers
Female couplers
BSP thread connections
UNO (SAE O-Ring Boss) thread connections
ORFS thread connections

Available in sizes from 1/4" through to 1" to suit a wide range of hydraulic systems.

Optional Accessories

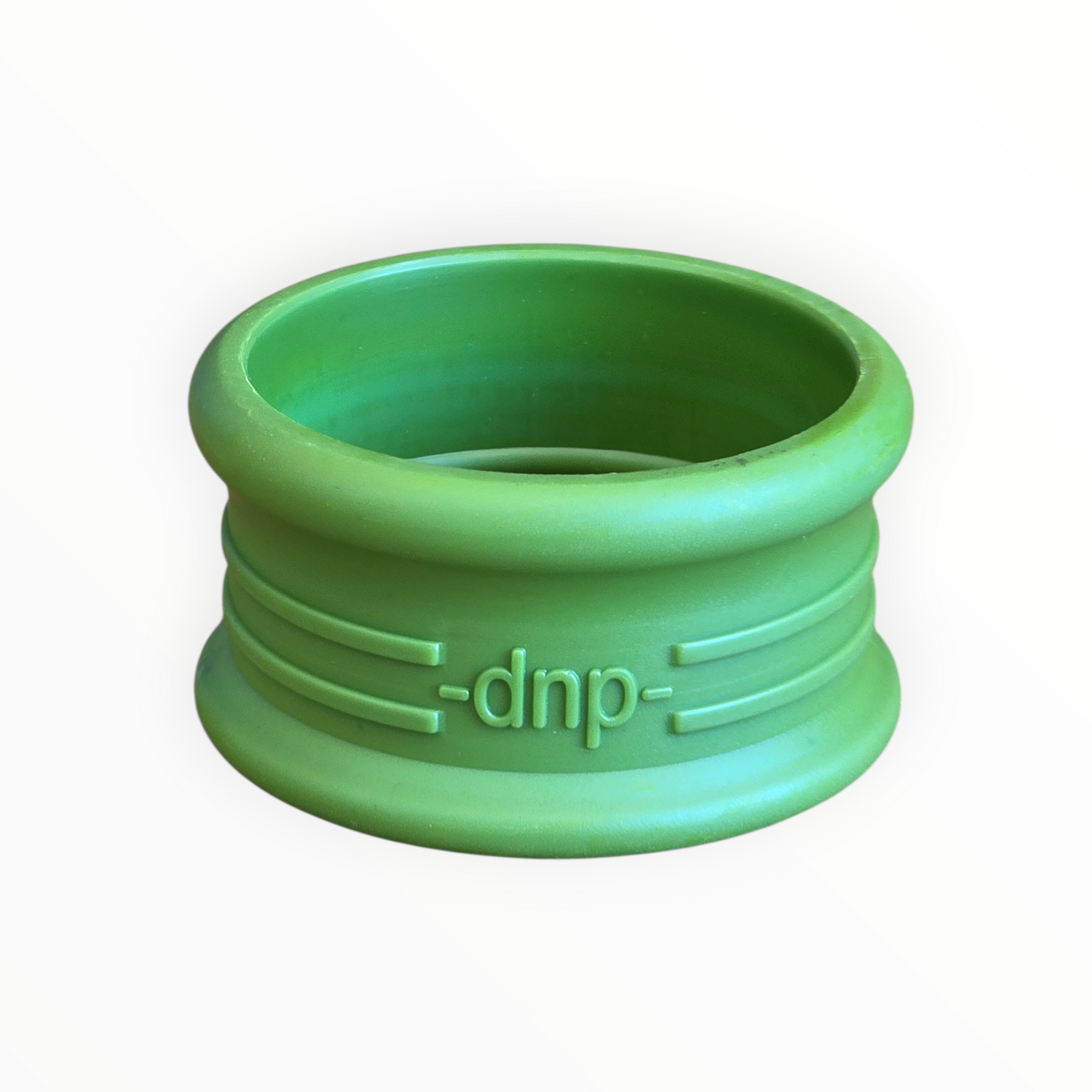

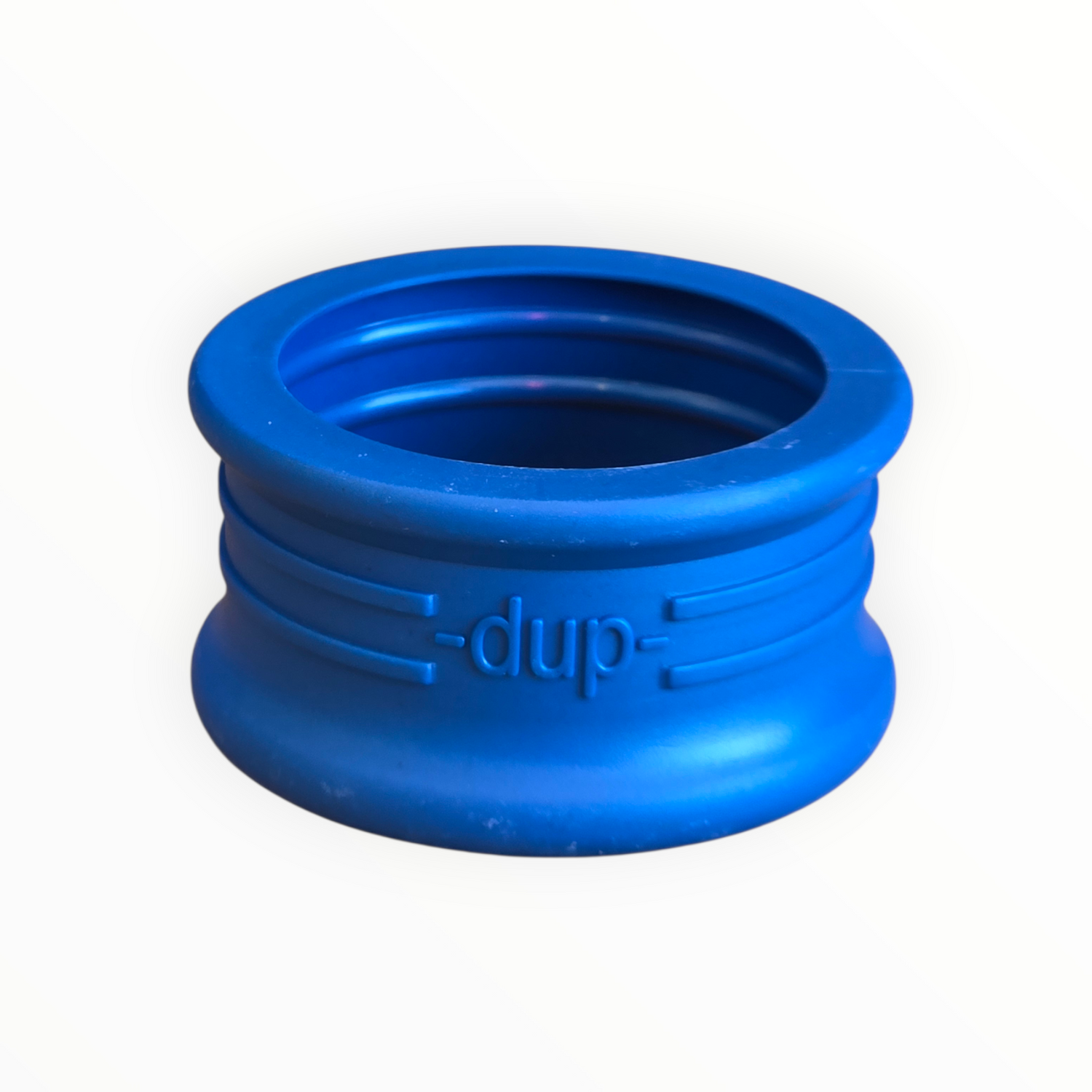

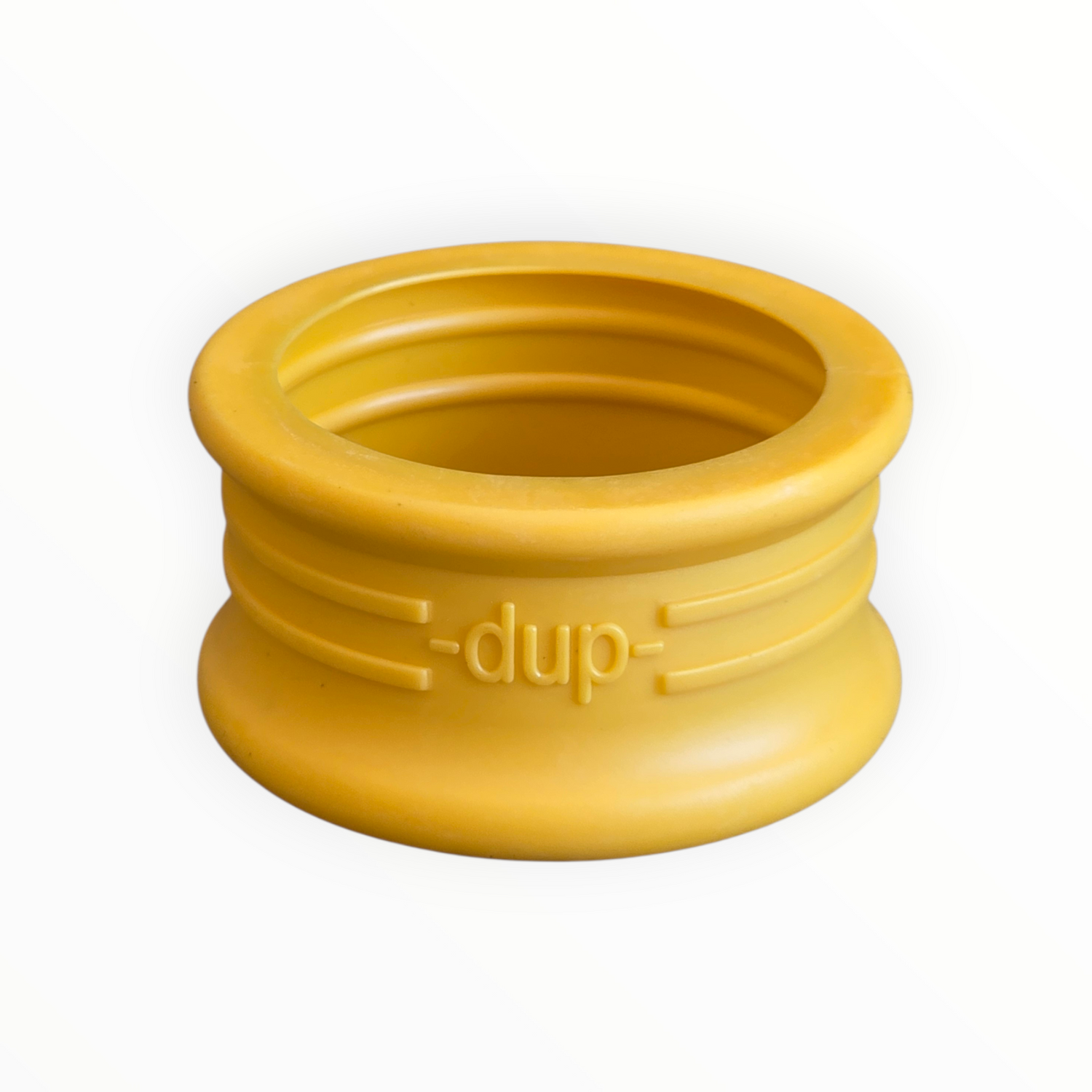

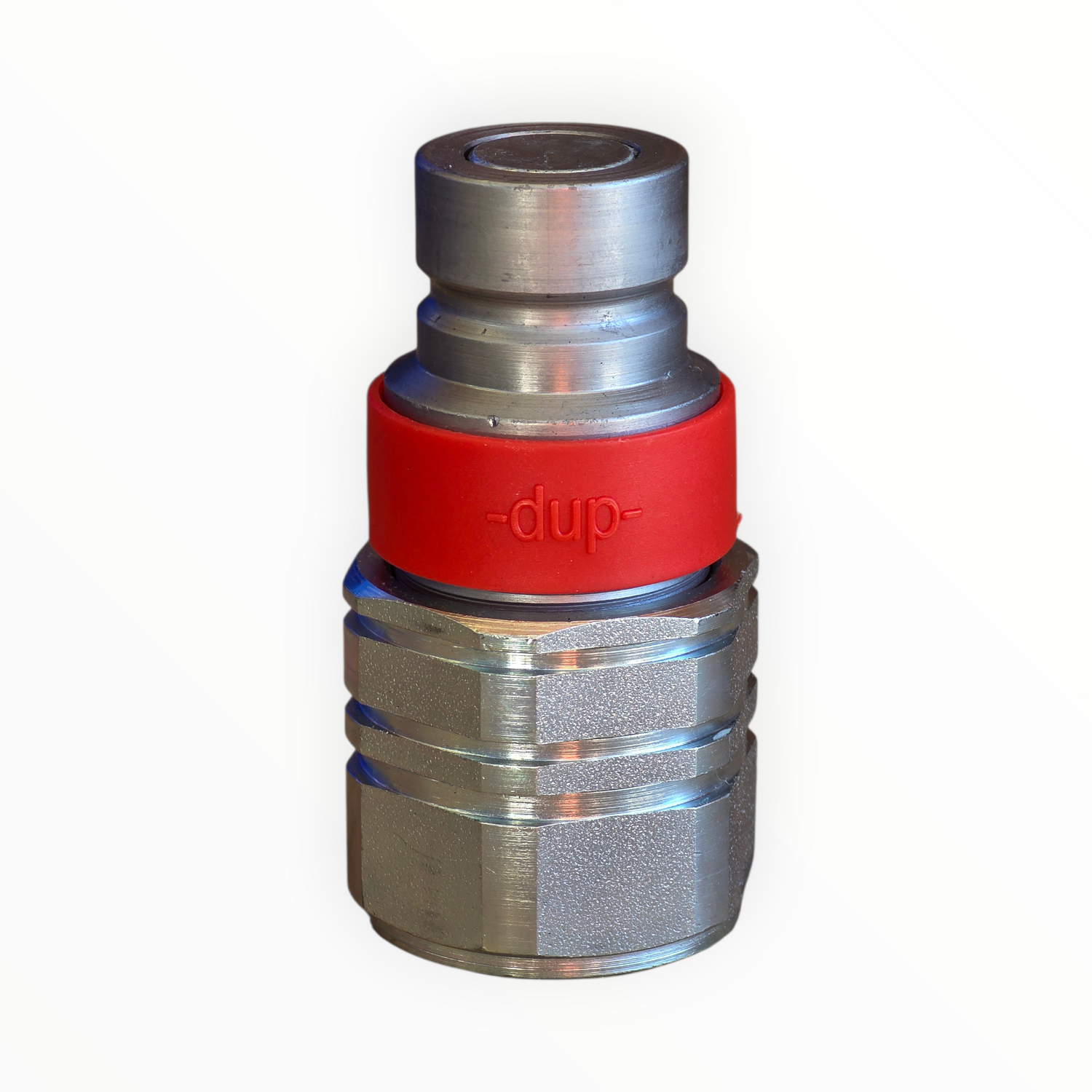

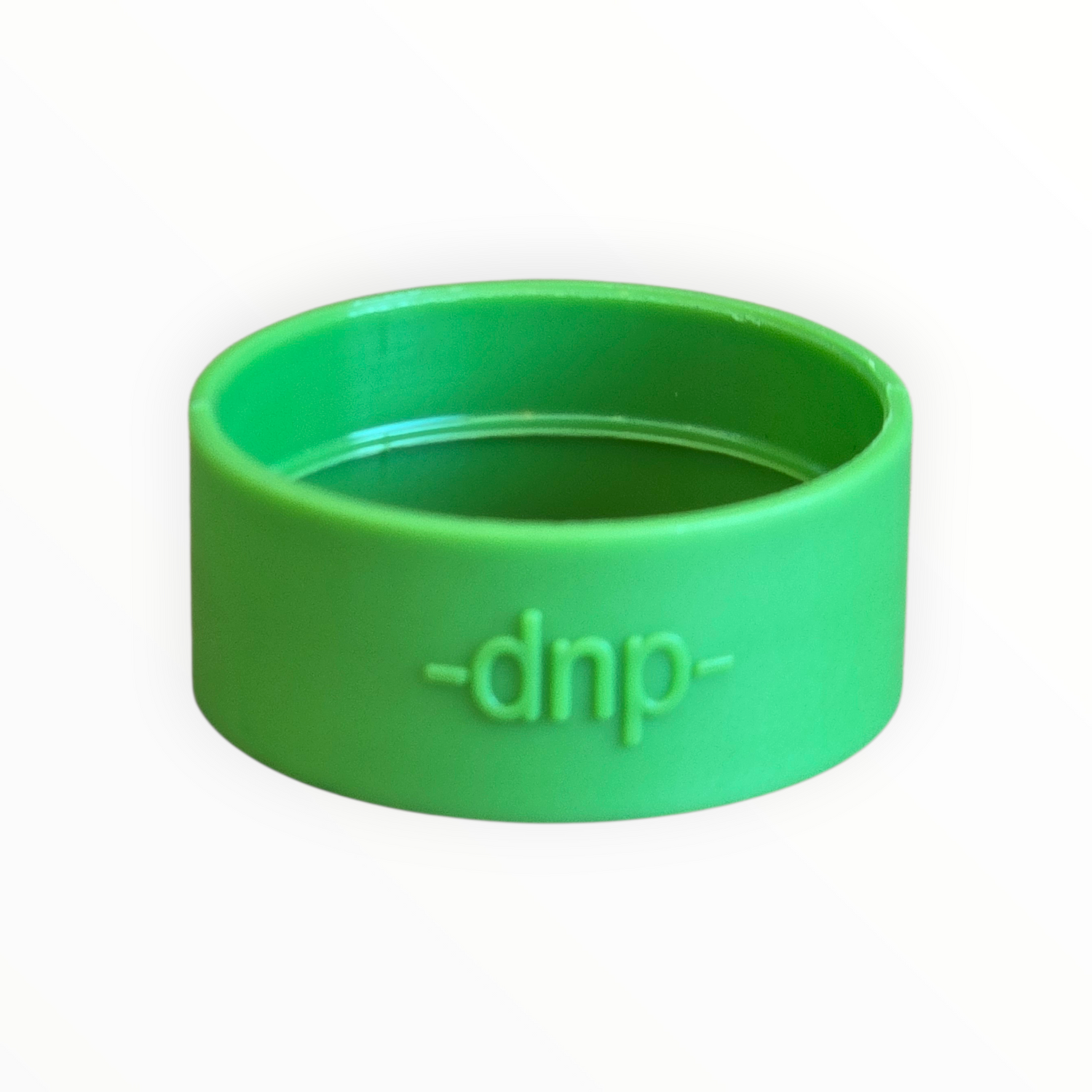

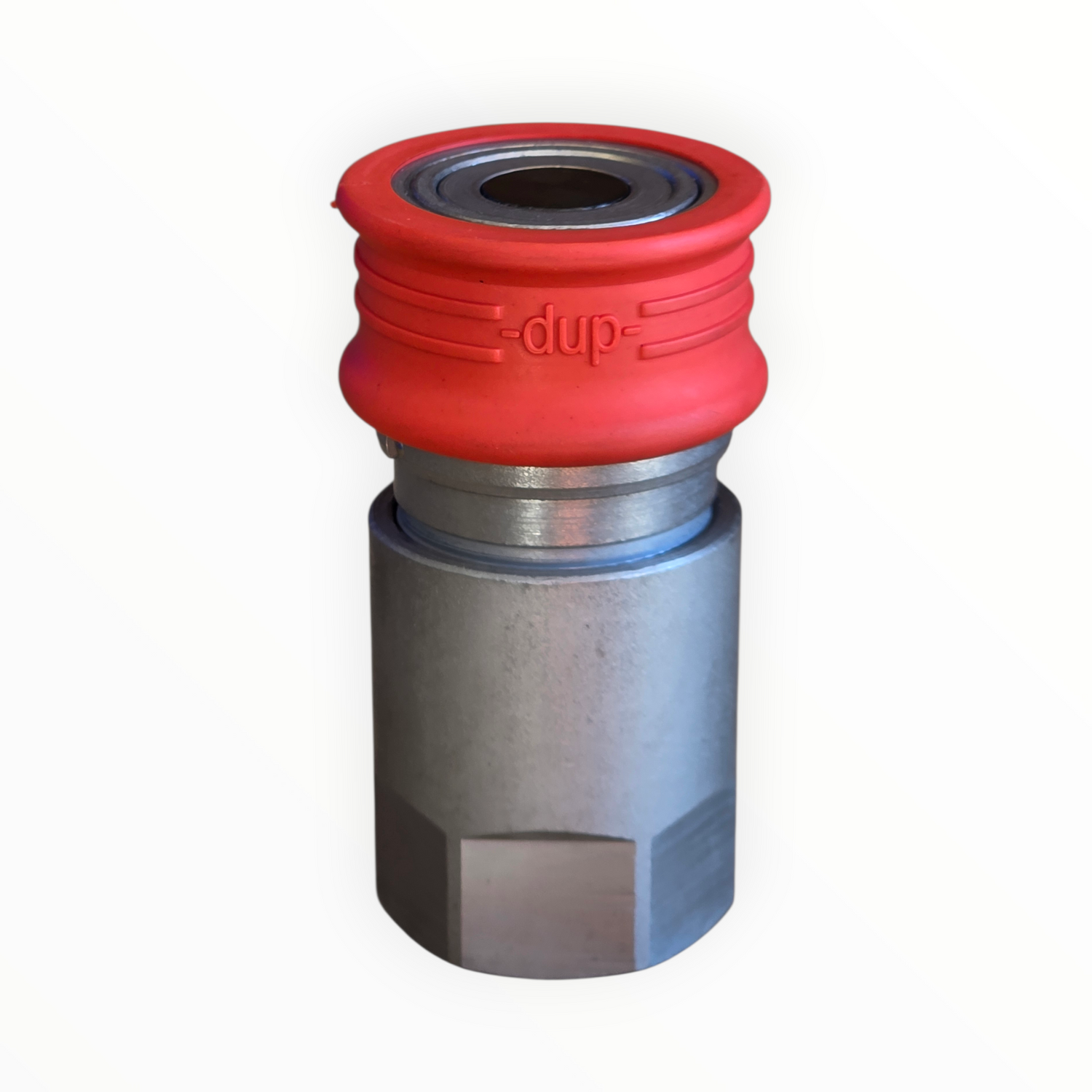

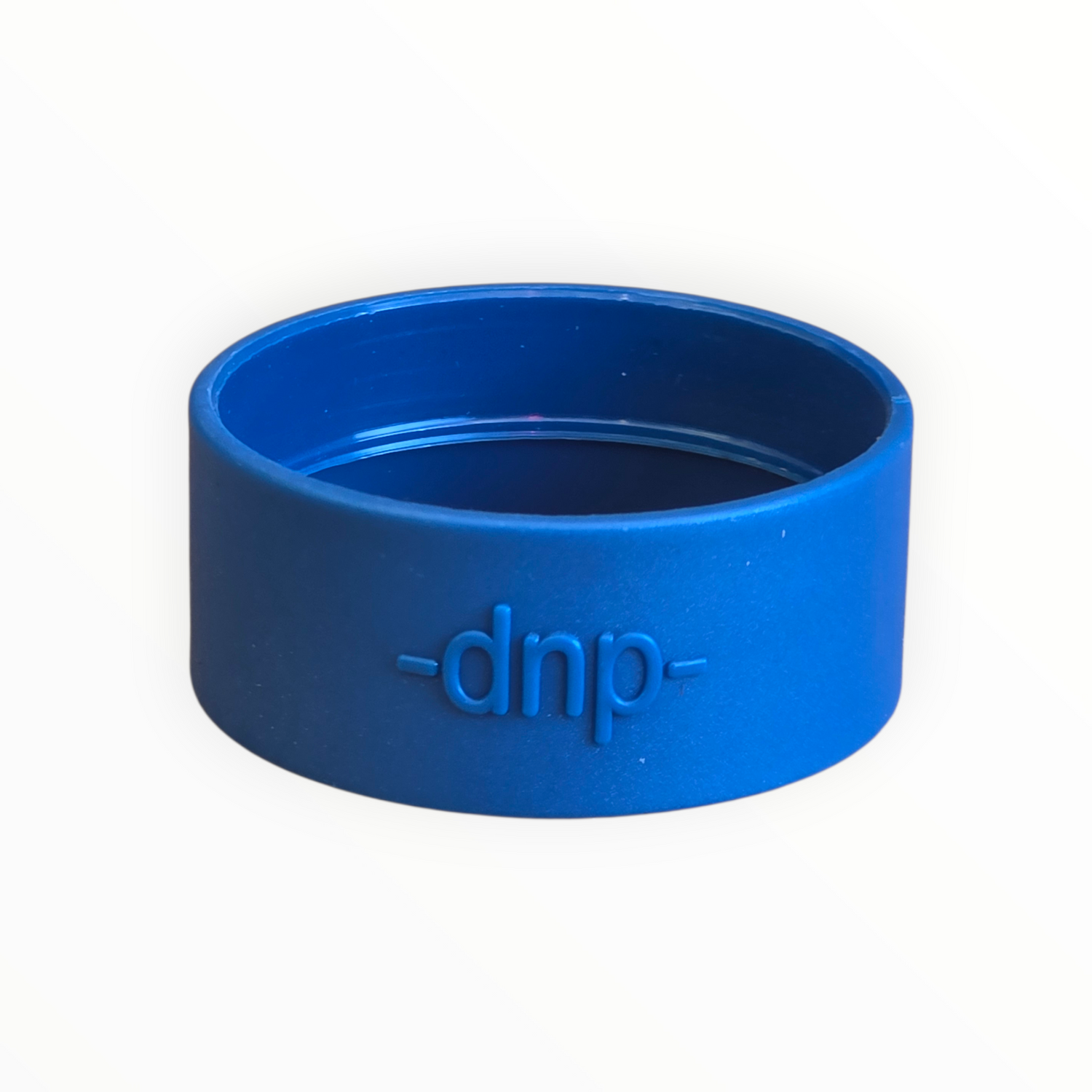

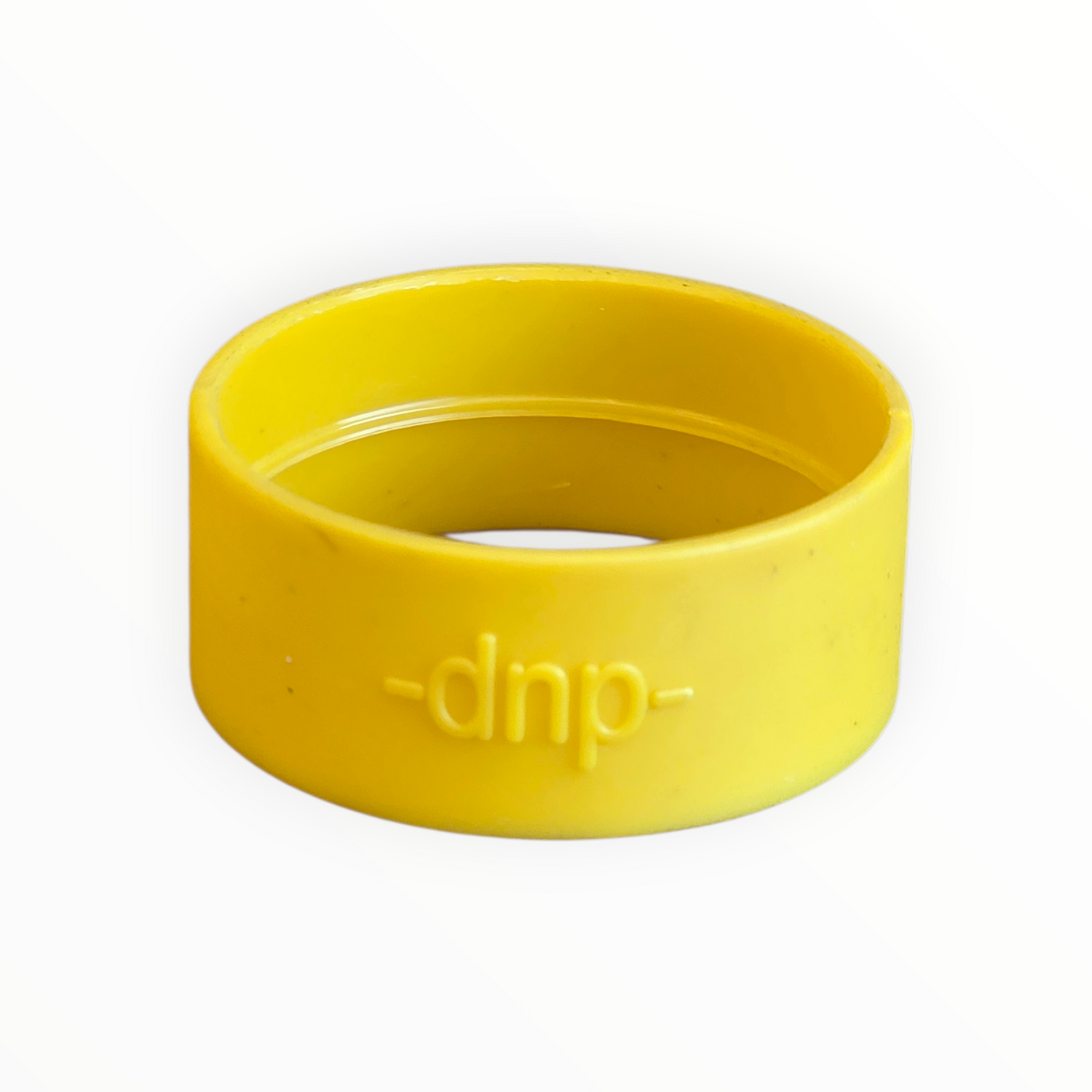

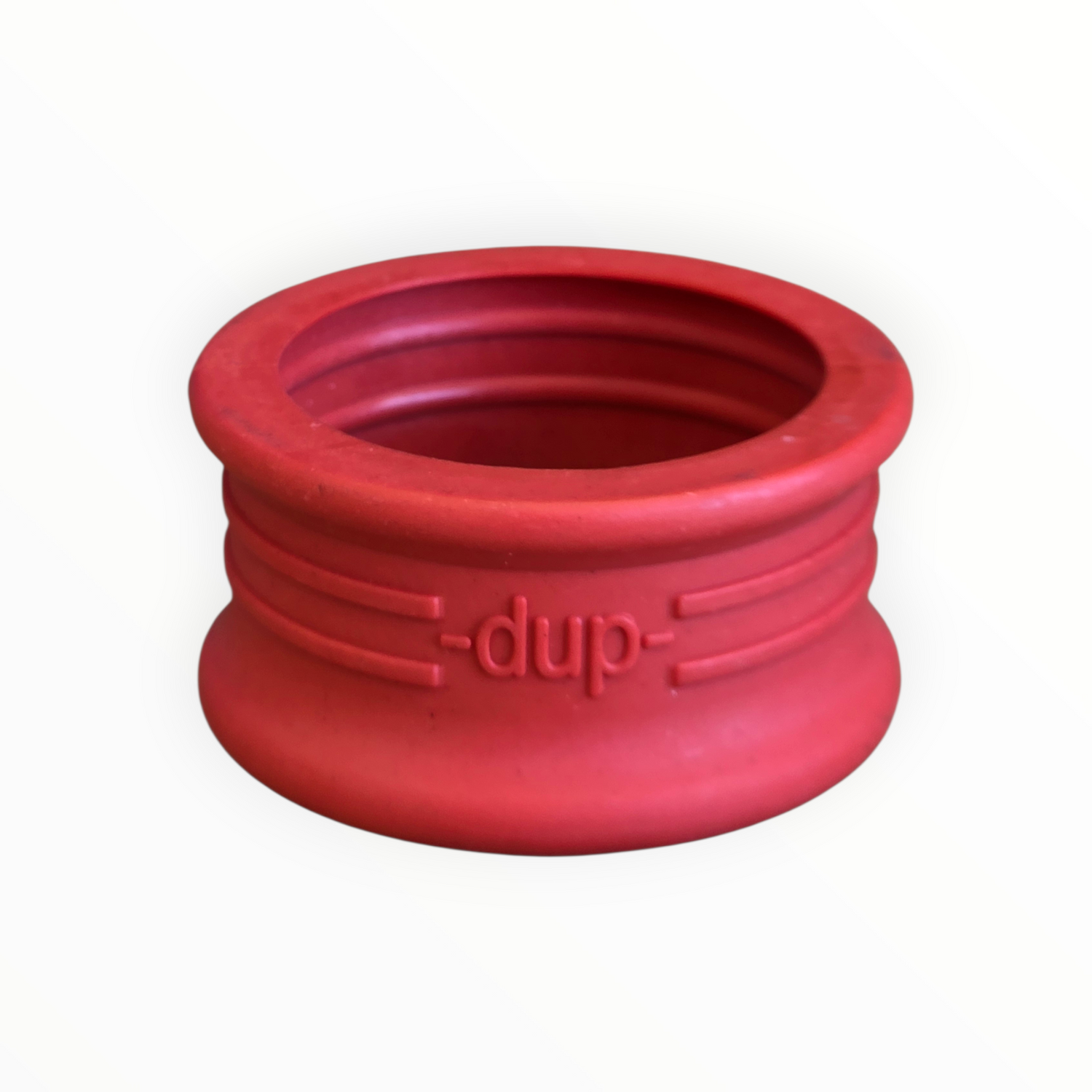

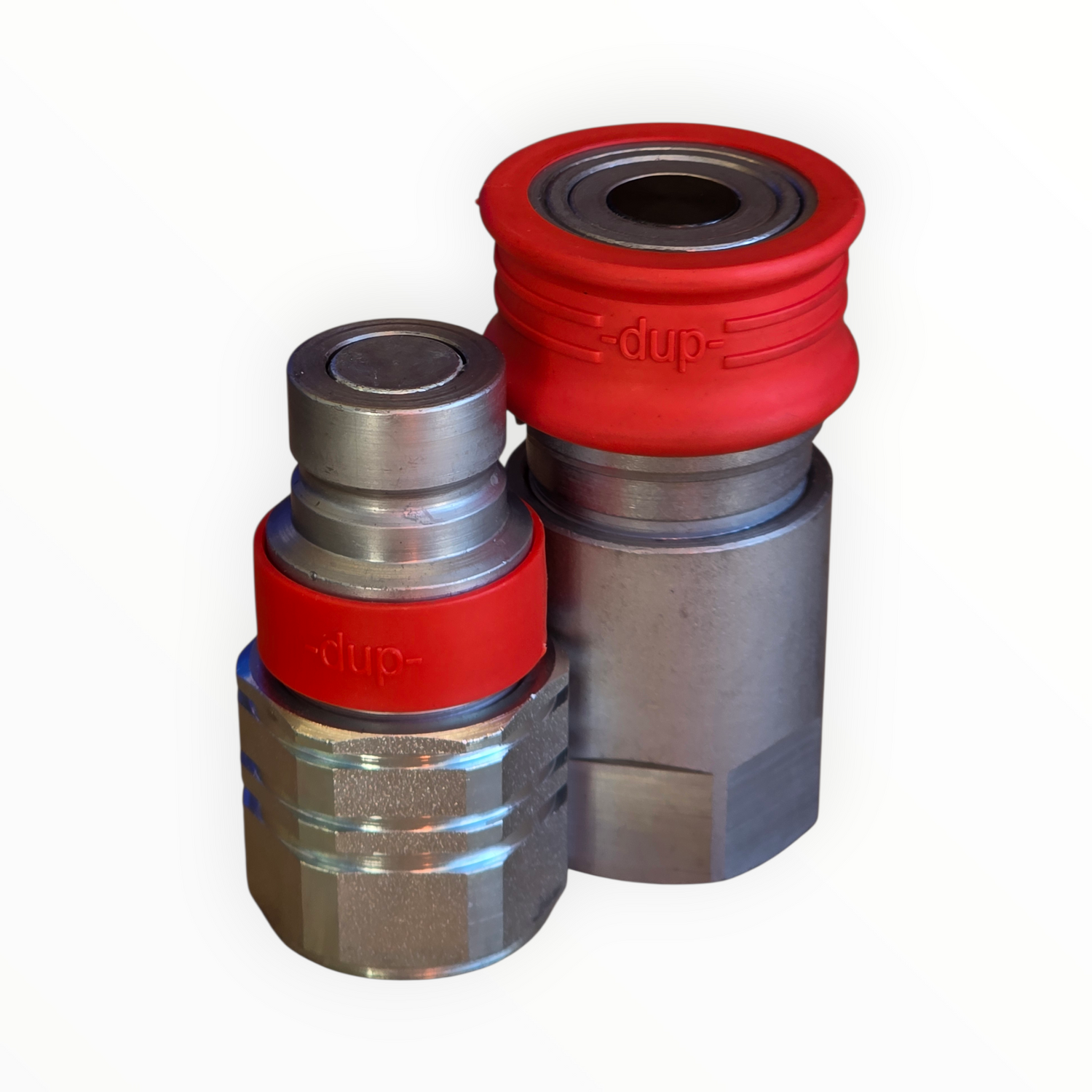

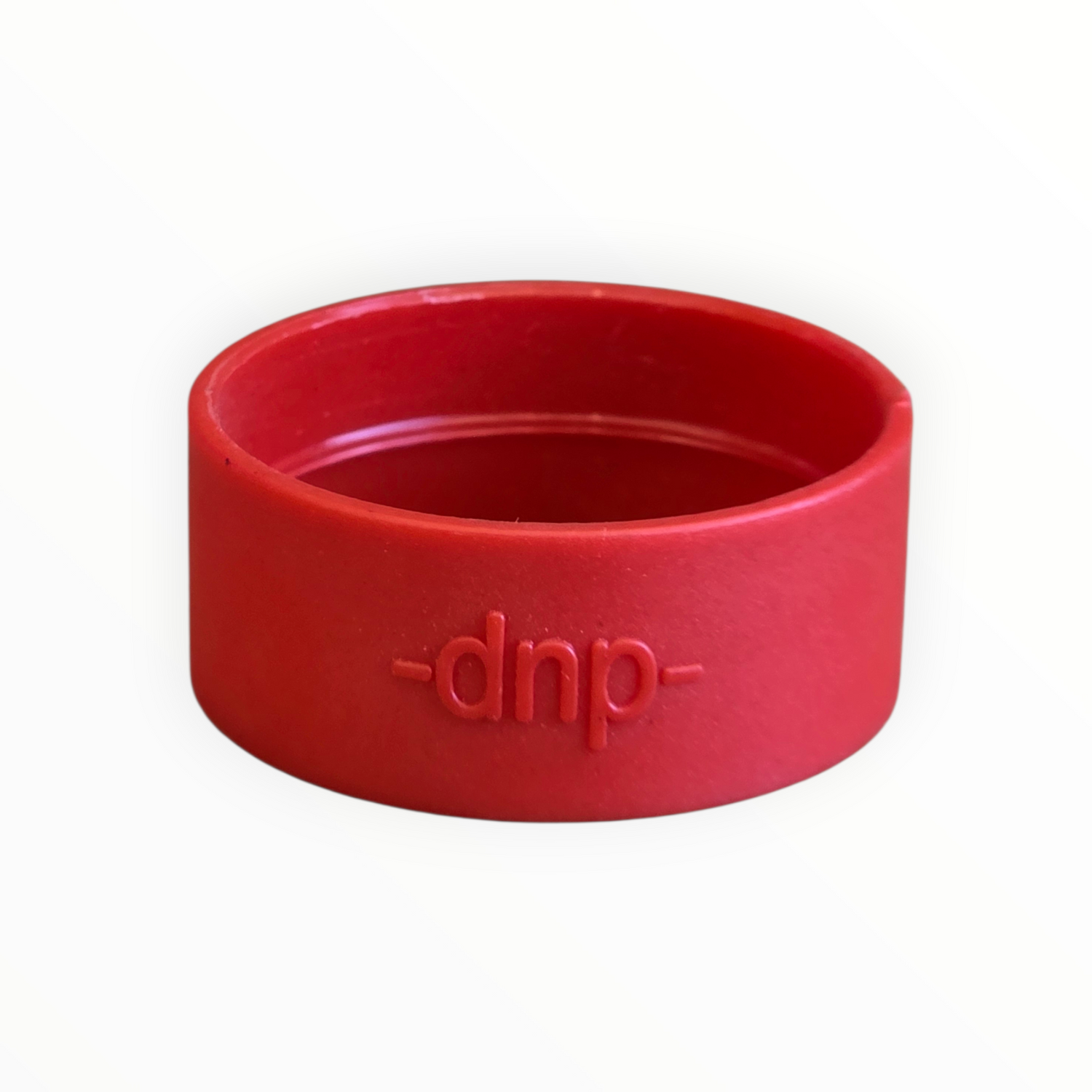

Colour coded plastic identification rings for male and female couplers - available for the most common 1/2" body size to help easily identify hydraulic circuits or attachments.

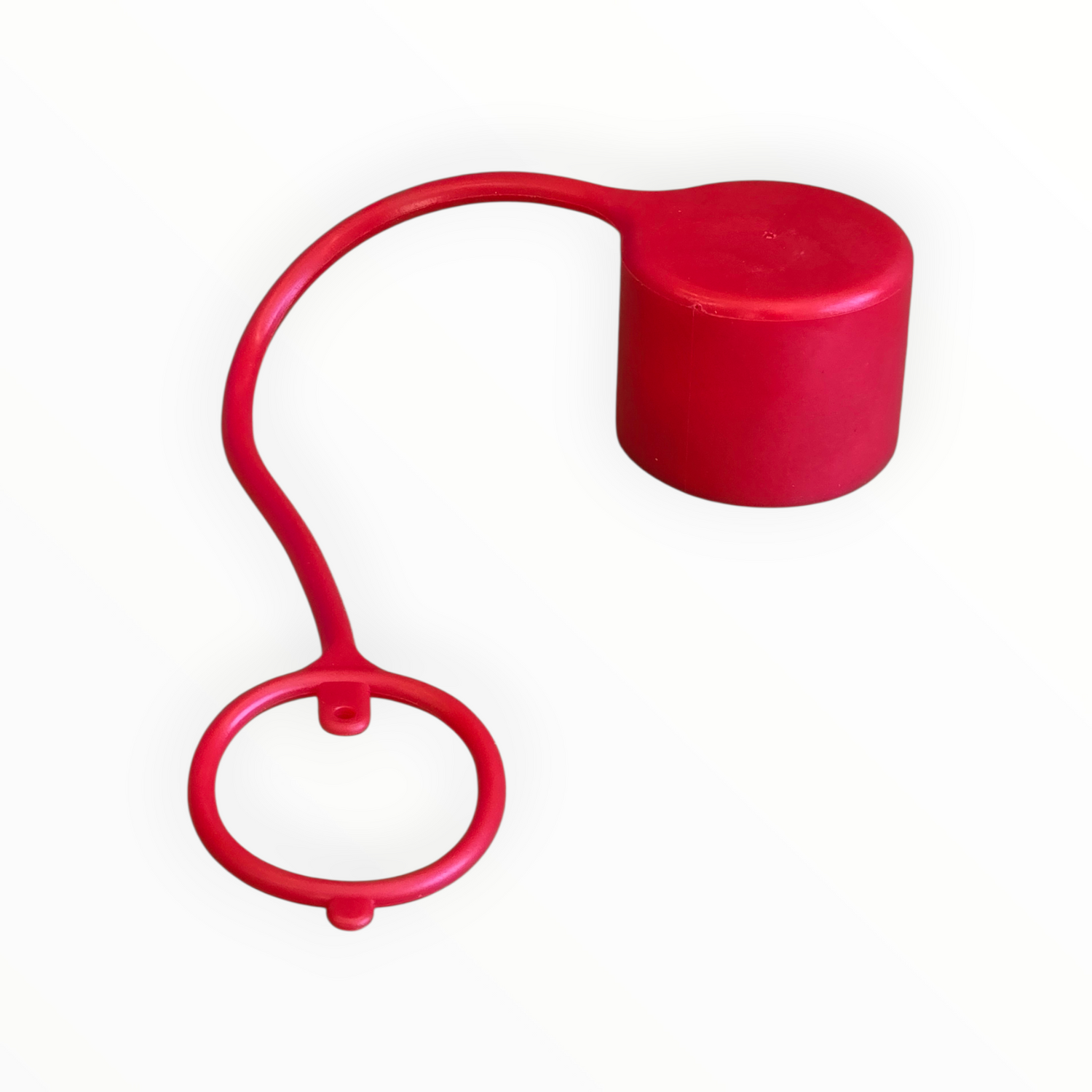

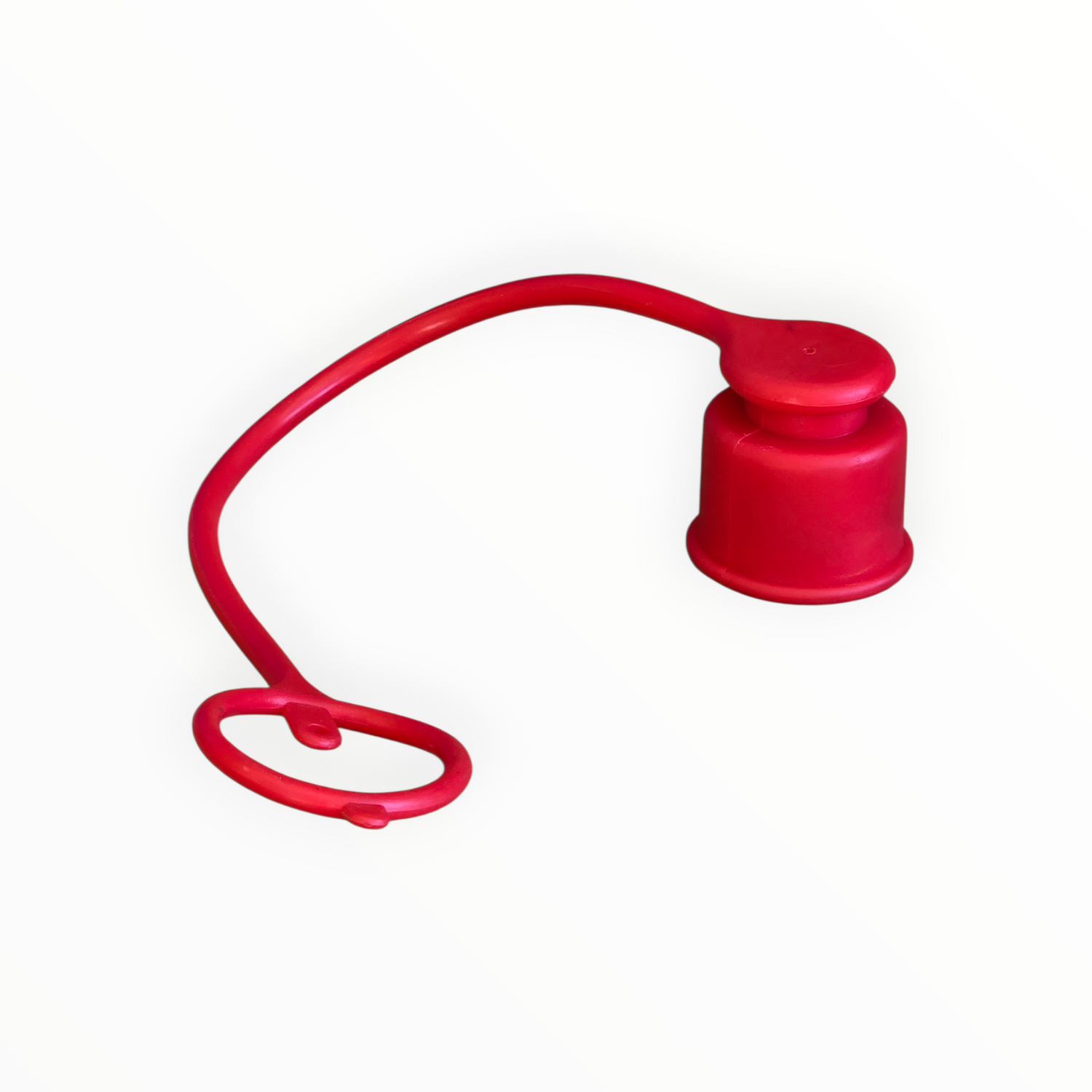

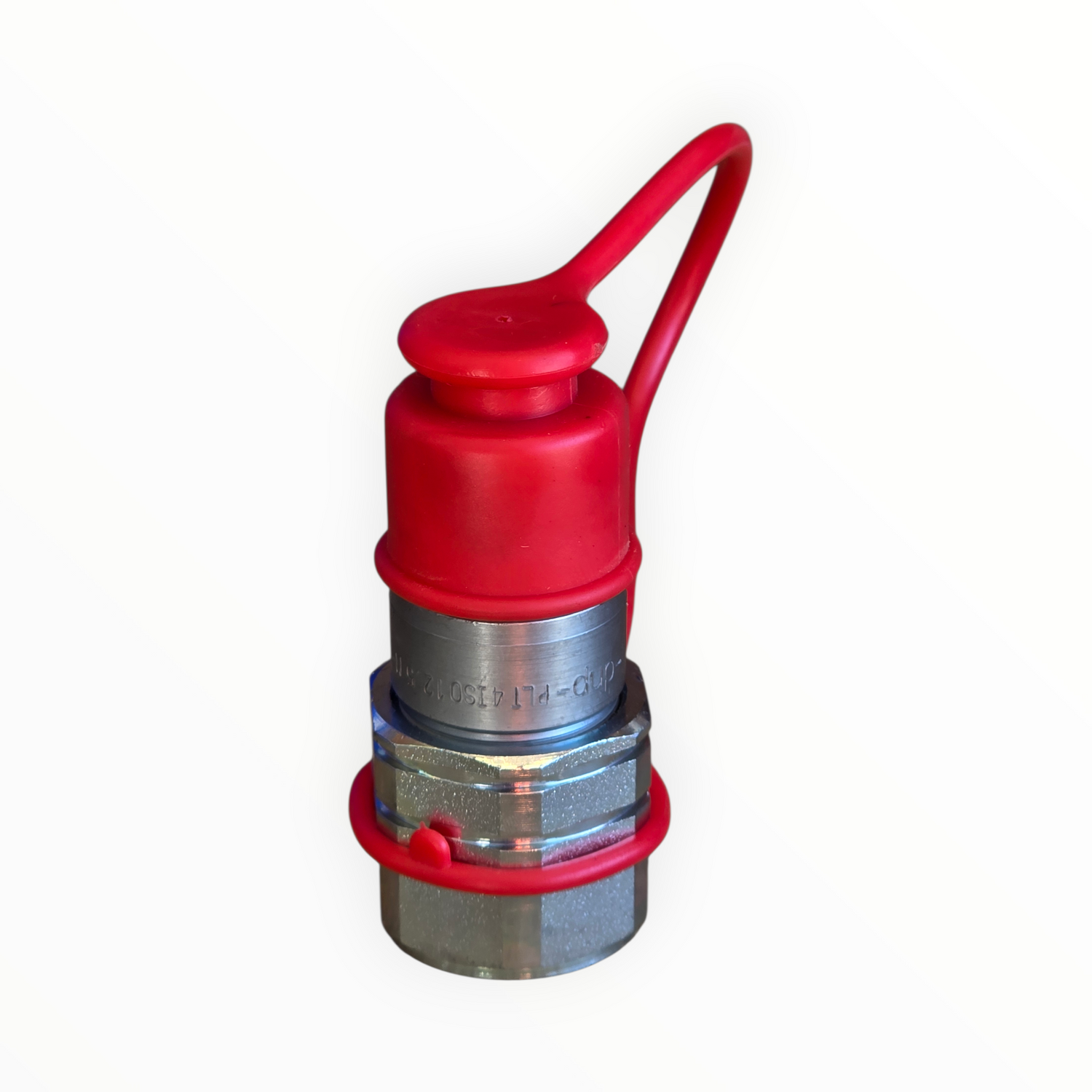

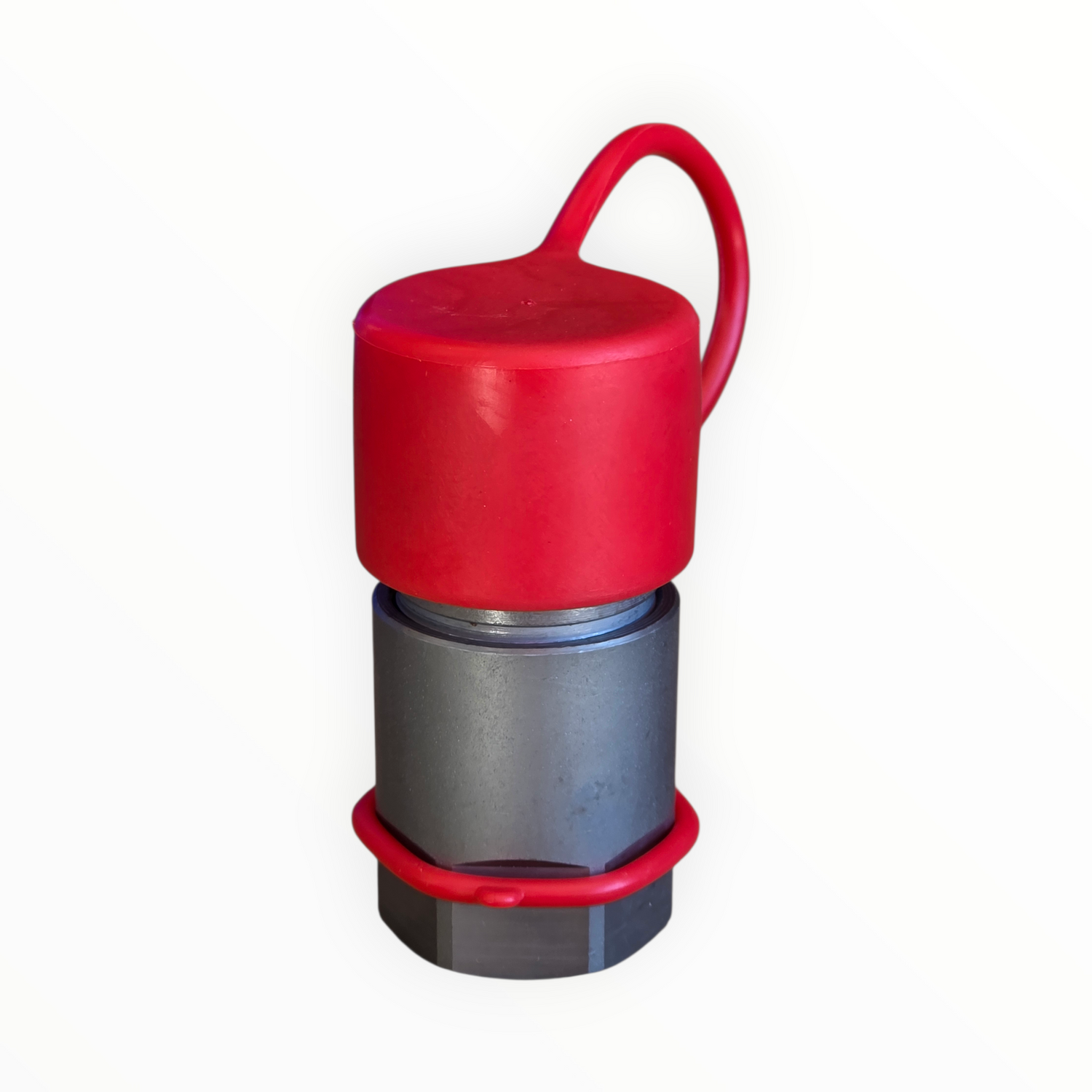

Protective dust caps and plugs for male and female couplers to keep dirt and debris out when not in use.
Helps extend the service life of hydraulic couplers by protecting sealing surfaces.

Connect Under Pressure Option

Tasmanian Hose Solutions also supplies the DNP PLK4 Connect Under Pressure male adaptor, designed to allow connection when there is residual pressure trapped in the hydraulic line.

This helps overcome the common problem where flat face couplers cannot be connected due to pressure build-up in attachments or hoses.

Important: The connect-under-pressure adaptor allows connection with residual pressure only, not with the system under operating pressure.

Key Features

ISO 16028 compliant flat face couplers
Working pressure 350 - 500 bar depending on size
Flat face design reduces oil spillage and contamination
High strength steel body for durability
Zinc-Nickel plating for superior corrosion resistance
Push-to-connect operation for fast connection
Precision radial ball locking system
Interchangeable with major ISO16028 flat face brands

Common Applications

Excavators and tilt hitches
Hydraulic attachments
Skid steer auxiliary hydraulics
Construction and earthmoving equipment
Agricultural machinery
Industrial hydraulic systems

Technical Specifications

Standard: ISO 16028
Type: Flat Face Hydraulic Quick Coupler
Pressure Rating: 350 - 500 bar (size dependent)
Material: High strength steel
Coating: Zinc-Nickel corrosion protection
Seals: NBR + PU (standard)
Temperature Range: -25°C to +100°C

Interchangeable with: Stucchi FIRG / Faster 2FFI / Parker FF / Holmbury HCP / CEJN 525 Series.
