ZEC OL7 R7 Thermoplastic Hydraulic Hose Oilproof Cover SAE 100R7
Description
Description

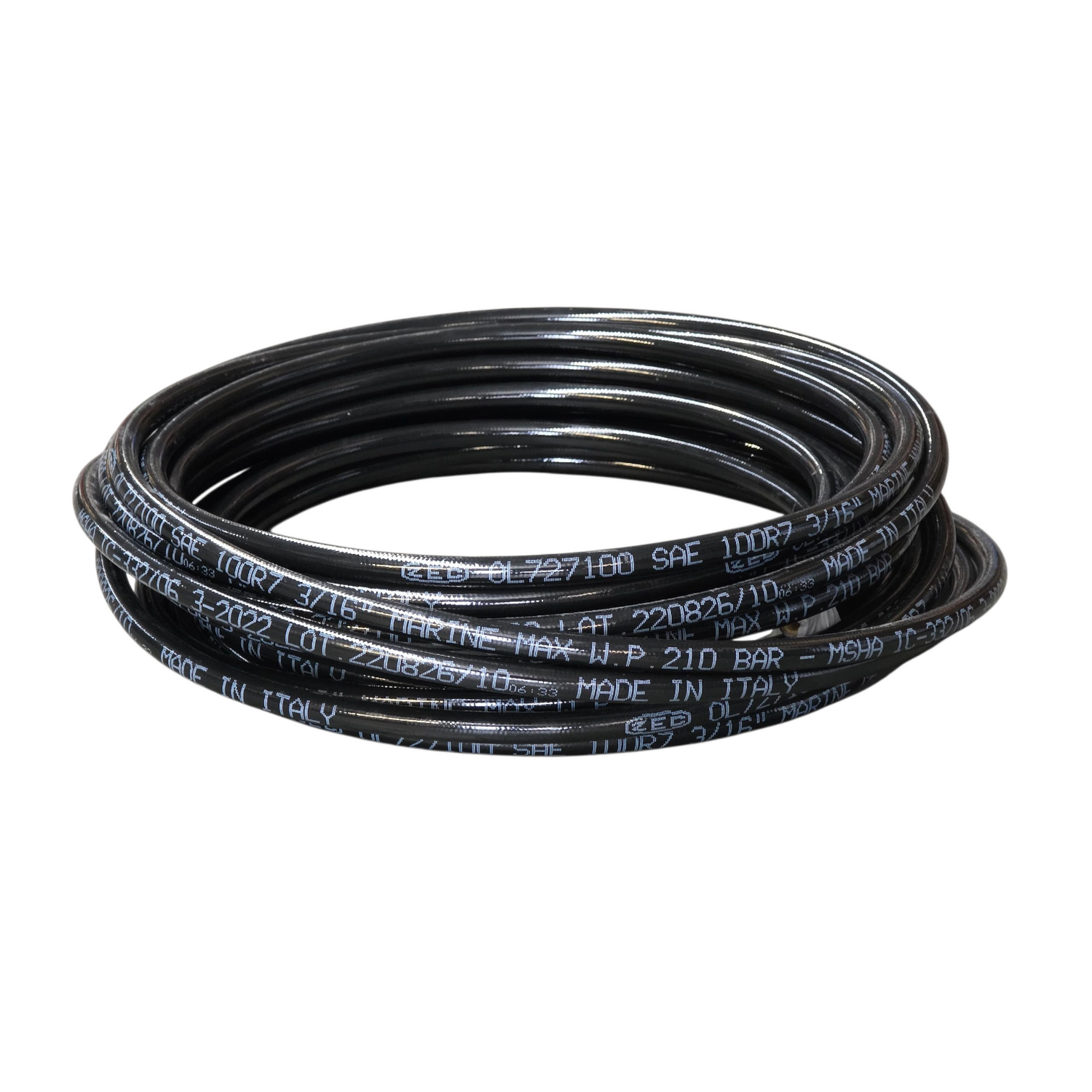

ZEC OL7 R7 Thermoplastic Hydraulic Hose – SAE 100R7 Oilproof Cover
Lightweight, flexible, and oilproof. The ZEC OL7 R7 Thermoplastic Hydraulic Hose is engineered for medium-pressure hydraulic applications where traditional rubber hoses may not perform. Designed to meet or exceed SAE J517-100R7 and ISO 3949 standards, and Type Approved by Lloyd’s Register, this hose delivers proven performance with excellent resistance to abrasion, ozone, UV exposure, and microorganisms.
Key Features

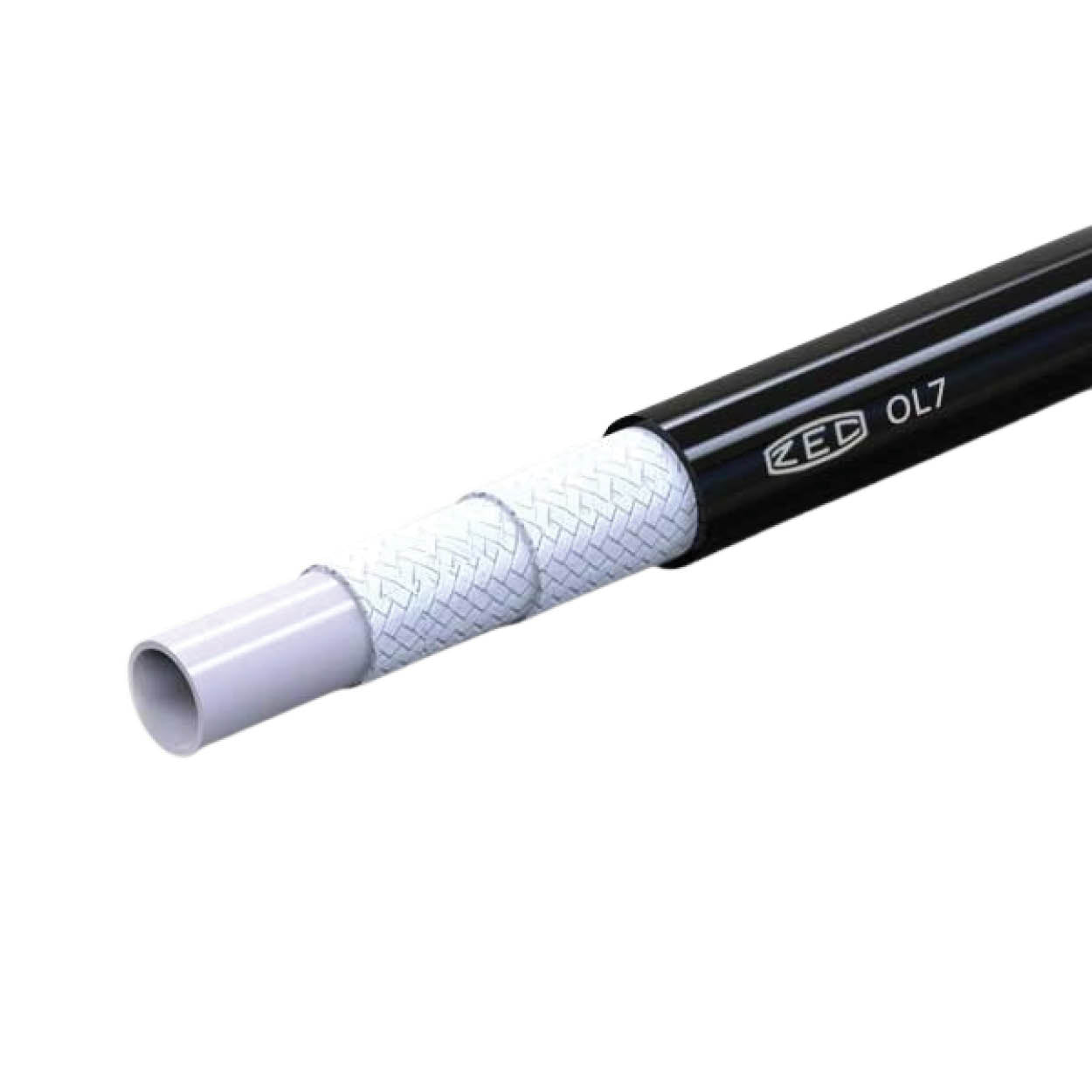

- Oilproof polyurethane cover – resists abrasion, ozone, UV, and microbial attack.
- Inner core: Thermoplastic polyester.
- Reinforcement: High-strength polyester fibre braid.
- Working Pressure: 70 to 250 bar (1:4 safety factor).
- Temperature Range: -40°C to +100°C (up to +70°C with air, water, and water-based fluids).
- Vacuum Rating: 0.93 bar; 700 mm Hg.
- Certified: SAE J517-100R7, ISO 3949, Lloyd’s Register Type Approval.
- Pinpricked cover – suitable for air and compatible gases.
Typical Uses
- Medium pressure hydraulic systems
- Mobile and industrial equipment
- Applications requiring lightweight, non-conductive hose
- Agricultural and construction machinery
Technical Specifications
| Code | Size (ID) | OD (mm) | WP (bar) | WP (psi) | Bend Radius (mm) | Weight (g/m) | Ferrule Code |
|---|---|---|---|---|---|---|---|
| OL710100 | 1/8" (-2) | 8.5 | 230 | 3335 | 12 | 57 | BP18R7 |
| OL78940100 | 5/32" (-2.5) | 8.9 | 250 | 3625 | 25 | 58 | BP532R7 |
| OL720100 | 3/16" (-3) | 10.0 | 210 | 3045 | 30 | 73 | BP316R7 |
| OL730100 | 1/4" (-4) | 11.8 | 200 | 2900 | 35 | 90 | BP14R7 |
| OL740100 | 5/16" (-5) | 14.3 | 190 | 2755 | 45 | 128 | BP516R7V |
| OL750100 | 3/8" (-6) | 16.0 | 175 | 2537 | 55 | 155 | BP38R7V |
| OL760100 | 1/2" (-8) | 20.3 | 140 | 2030 | 75 | 219 | BP12R7V |
| OL770100 | 5/8" (-10) | 23.5 | 105 | 1522 | 120 | 277 | BP58R7V |
| OL780100 | 3/4" (-12) | 26.5 | 90 | 1305 | 145 | 330 | BP34R7V |
| OL790100 | 1" (-16) | 33.6 | 70 | 1015 | 200 | 403 | BP1R7V |
Ordering Options
Available per metre or in bulk coils. Contact us for trade pricing and large volume orders.
