Stucchi VP-P Screw Together Flat Face Hydraulic Coupling

Stucchi VP-P Screw Together Flat Face Hydraulic Couplings

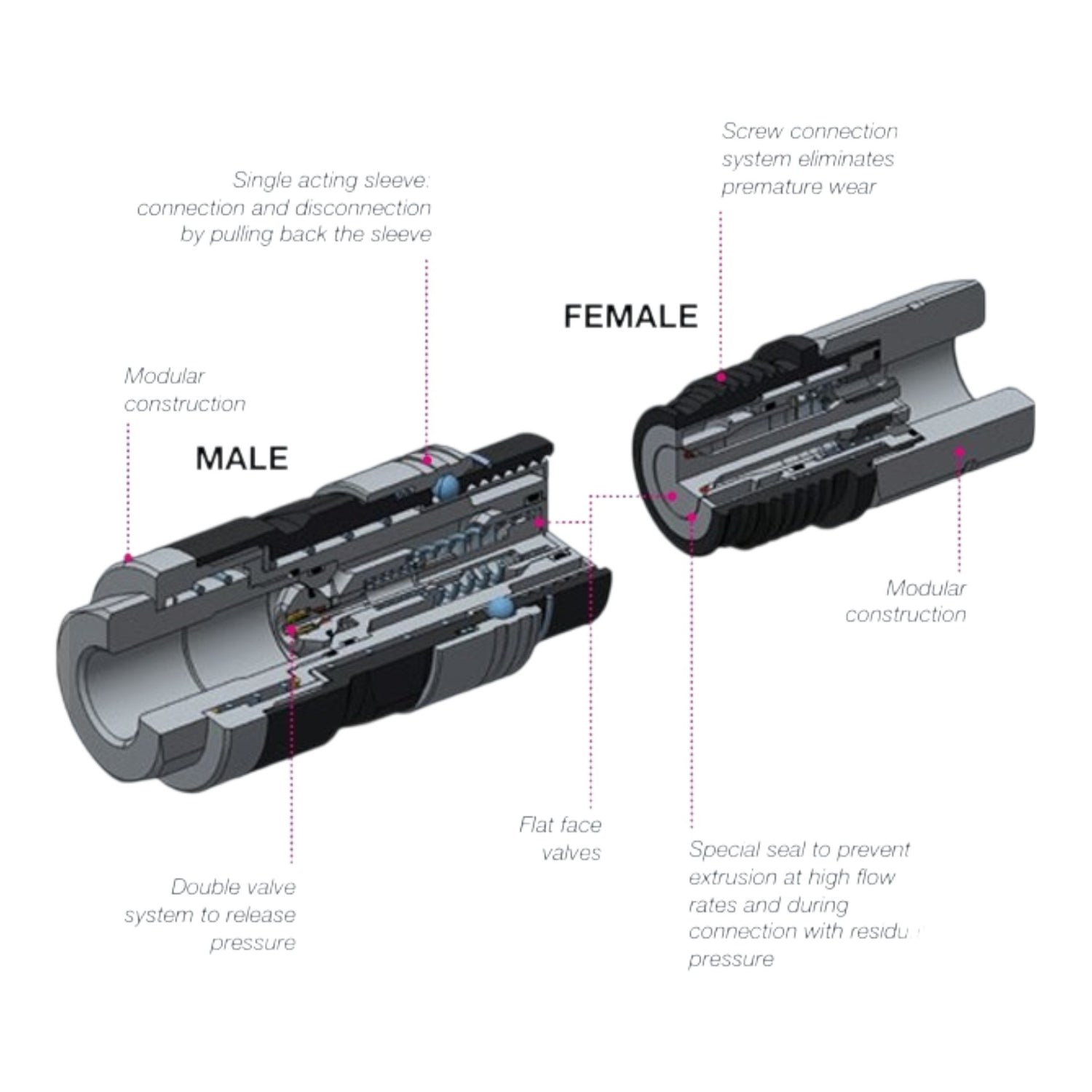

The Stucchi VP-P Series is a heavy-duty, screw-to-connect flat face hydraulic coupling designed for demanding applications where high pressure, high flow and residual pressure can make conventional quick couplings difficult to connect.

Stucchi's internal pressure release system allows the VP-P to be connected with residual pressure on both sides of the coupling, while the screw-together connection provides a secure and robust connection for severe hydraulic applications.

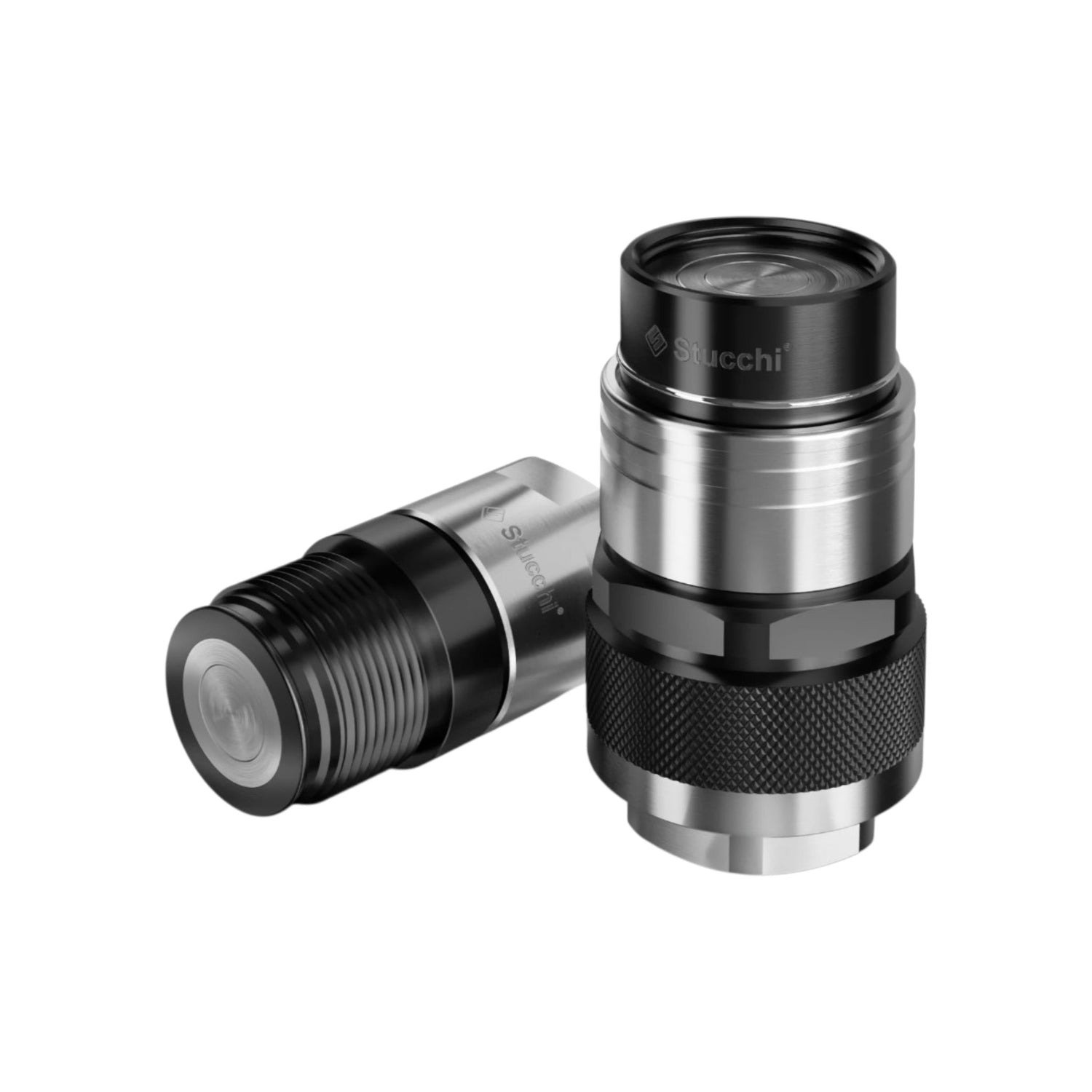

Available from Tas Hose as male couplings, female couplings and matching protective caps/plugs across a range of sizes.

Why Choose Stucchi VP-P?

• Connect under residual pressure – designed to allow connection with residual pressure in both coupling halves.
• Screw-to-connect design – provides a strong, secure connection and helps eliminate premature wear.
• Flat face valves – easy to wipe clean before connection, helping reduce contamination entering the hydraulic system.
• Minimal oil spillage – reduces fluid loss when disconnecting.
• Minimal air inclusion – helps minimise air entering the hydraulic circuit during connection.
• High-flow internal design – engineered to minimise pressure drop and maintain hydraulic circuit efficiency.
• Integrated safety sleeve – helps prevent accidental disconnection.
• High resistance to pressure impulses – suited to demanding hydraulic systems and equipment.

Built for Demanding Hydraulic Applications

The VP-P Series is designed for applications where ordinary push-to-connect couplings may not be suitable, particularly where trapped residual pressure is common.

Typical applications include:

• Earthmoving and construction equipment
• Hydraulic attachments and tools
• Oil & gas equipment
• Industrial hydraulic systems
• Agricultural equipment
• High-pressure hydraulic applications

Technical Features

Working pressure, flow capacity and residual pressure capability vary by coupling size. Always select the coupling to suit the requirements of the hydraulic system.

Protective Caps & Plugs

Matching Stucchi aluminium protective caps and plugs are available within the product options.

• Cap for Female Coupling
• Plug for Male Coupling

Protective caps and plugs help prevent dirt, moisture and other contaminants from entering or damaging disconnected couplings. They are particularly recommended for mobile equipment operating around dirt, aggregate and weather exposure.

Connection & Safety

Before connection, clean both flat mating faces to prevent contamination entering the hydraulic circuit. Align the male and female halves, engage the thread and screw the coupling together until the safety sleeve locks into position.

Important: Connect-under-pressure refers to residual/static pressure. Never connect or disconnect hydraulic couplings with dynamic system pressure or flow present. Connection and disconnection under residual pressure is recommended for occasional operations; where possible, relieving pressure from one side reduces operator effort and coupling wear.

Need Help Choosing the Right VP-P Coupling?

Select the required type and size from the options above. If you're replacing an existing Stucchi coupling or aren't sure which VP-P size you need, contact Tas Hose and we'll help identify the correct coupling.
